Body Repair

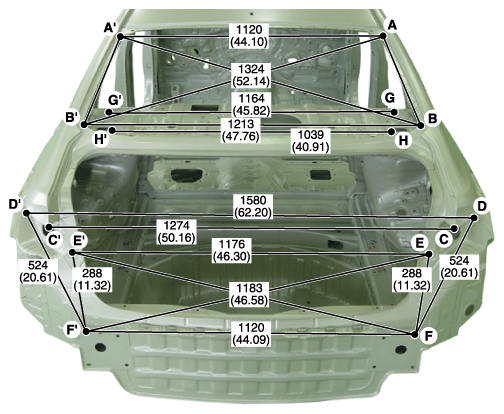

Fig 1: Rear Body Measurement
G11340426Courtesy of HYUNDAI MOTOR AMERICA

* These dimensions indicated in this figure are actual-measurement dimensions. [Unit: mm (inch)]

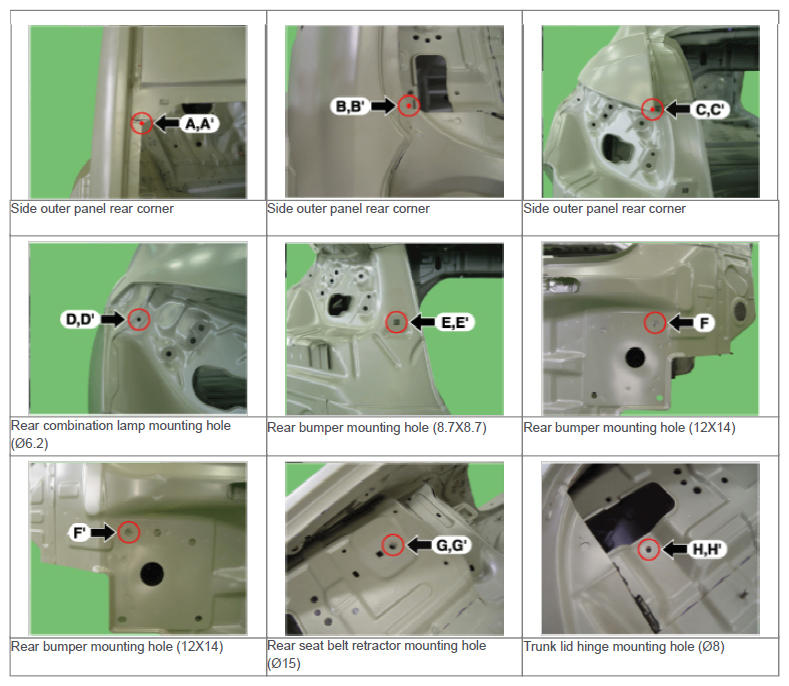

Fig 2: Rear Body Measurement Points
G11340427Courtesy of HYUNDAI MOTOR AMERICA
