Front Body B

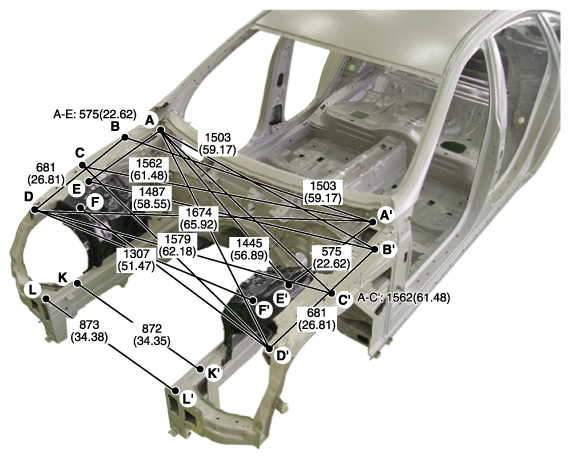

G11340408

Courtesy of

* These dimensions indicated in this figure are actual-measurement dimensions. [Unit: mm (inch)]
