LCDD Data Provisioning Message On Replacement Radio (PIT6105D)
Publication date: 2025-04-16Reference number: PIT6105D
Supersedes refnos: PIT6105, PIT6105A, PIT6105B, PIT6105C
LCDD DATA PROVISIONING MESSAGE ON REPLACEMENT RADIO
TECHNICAL SERVICE BULLETIN
Reference Number(s): PIT6105D, Date of Issue:
Apr 16, 2025
SERVICE INFORMATION
| Brand: | Model: | Model Year: | VIN: | Engine: | Transmission: | ||
|---|---|---|---|---|---|---|---|
| from | to | from | to | ||||
| BrightDrop | Zevo 400 | 2024 | All | All | All | All | |
| BrightDrop | Zevo 600 | 2024 | All | All | All | All | |
| Buick | Enclave | 2025 | All | All | All | All | |
| Buick | Envision | 2024-2025 | All | All | All | All | |
| Cadillac | CT5 | 2025 | All | All | All | All | |
| Cadillac | LYRIQ | 2023-2025 | All | All | All | All | |
| Cadillac | Escalade IQ | 2025 | All | All | All | All | |
| Cadillac | Escalade | 2025 | All | All | All | All | |
| Cadillac | Escalade ESV | 2025 | All | All | All | All | |
| Cadillac | OPTIQ | 2025 | All | All | All | All | |
| Cadillac | XT4 | 2024-2025 | All | All | All | All | |
| Chevrolet | Blazer EV | 2024-2025 | All | All | All | All | |
| Chevrolet | BrightDrop 400 | 2025 | All | All | All | All | |
| Chevrolet | BrightDrop 600 | 2025 | All | All | All | All | |
| Chevrolet | Colorado | 2023-2025 | All | All | All | All | |
| Chevrolet | Equinox | 2025 | All | All | All | All | |
| Chevrolet | Equinox EV | 2024-2025 | All | All | All | All | |
| Chevrolet | Tahoe | 2025 | All | All | All | All | |
| Chevrolet | Traverse | 2024-2025 | All | All | All | All | |
| Chevrolet | Silverado EV | 2024-2025 | All | All | All | All | |
| Chevrolet | Suburban | 2025 | All | All | All | All | |
| GMC | Acadia | 2024-2025 | All | All | All | All | |
| GMC | Canyon | 2023-2025 | All | All | All | All | |
| GMC | Sierra EV | 2024-2025 | All | All | All | All | |
| GMC | Terrain | 2025 | All | All | All | All | |
| GMC | Yukon | 2025 | All | All | All | All | |
| GMC | Yukon XL | 2025 | All | All | All | All | |
| Involved Region or Country | North America |
| Additional Options (RPO) | IVD and IVE |

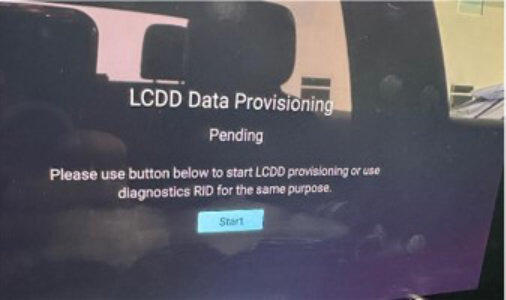

| Condition | When installing a replacement radio, the technician may notice the LCDD Data Provisioning message. |
| Cause | Normal condition. |
CORRECTION
Before performing USB programming and SPS programming, press "Start" on the radio display.
After it completes, proceed with published Service Information programming for the A11 Radio.
WARRANTY INFORMATION
For vehicles repaired under the Bumper-to-Bumper coverage (Canada Base Warranty coverage), use the following labor operation. Reference the Applicable Warranties section of Investigate Vehicle History (IVH) for coverage information.
| Labor Operation | Description | Labor Time |
|---|---|---|
| 3486008 | Perform LCDD Data Provisioning on radio | 0.2 Hr. |
| *This is a unique Labor Operation for Bulletin use only. | ||
| Version | 5 |
| Modified | 01/04/2024 - Created On. 01/17/2024 - Updated for labor op and added IVE RPO. 03/19/2024 - Updated to add additional models. 02/14/2025 - Model years and cause. 04/16/2025 - Updated models. |
