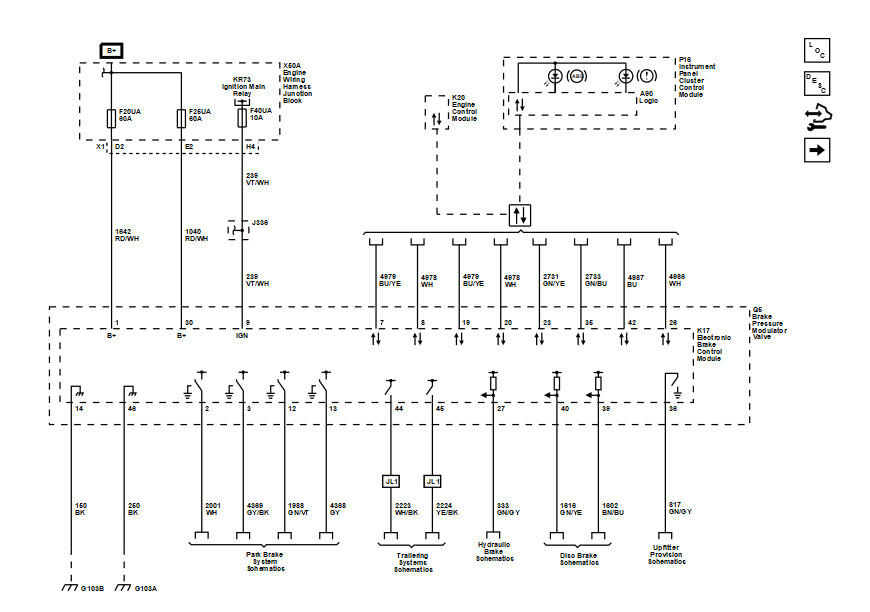

Module Power, Ground, Serial Data, Subsystem References, and Indicators

GM6530245

Courtesy of GENERAL MOTORS COMPANY
