Installation Procedure

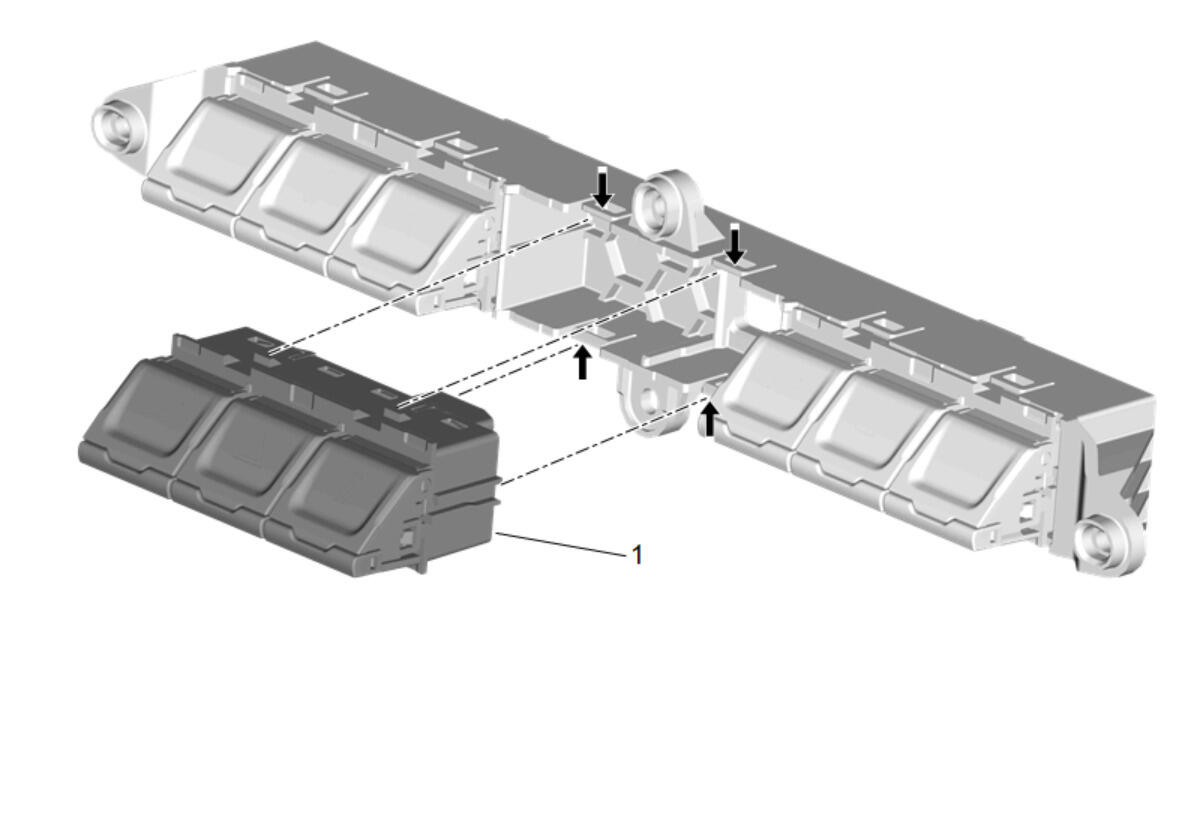

Vehicle Stability Control System Switch (1) - Install
- Secure the retaining tabs.

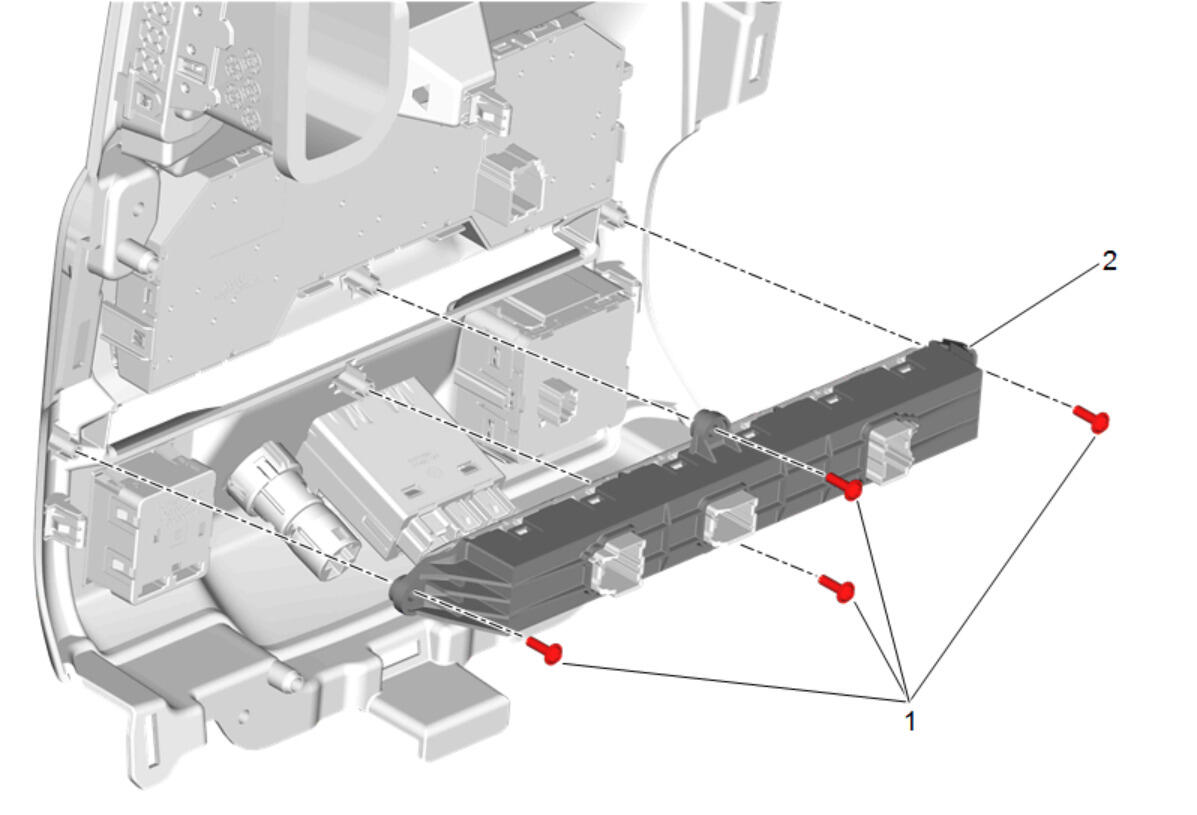

Hazard Warning Switch Housing (2) - Install
- Hazard Warning Switch Housing Bolt (1) - Install and tighten [4x] - Fastener Specifications
Connect the electrical connectors.
- Radio Control (2) - Install
- Radio Control Bolt (1) - Install and tighten [6x] - Fastener Specifications

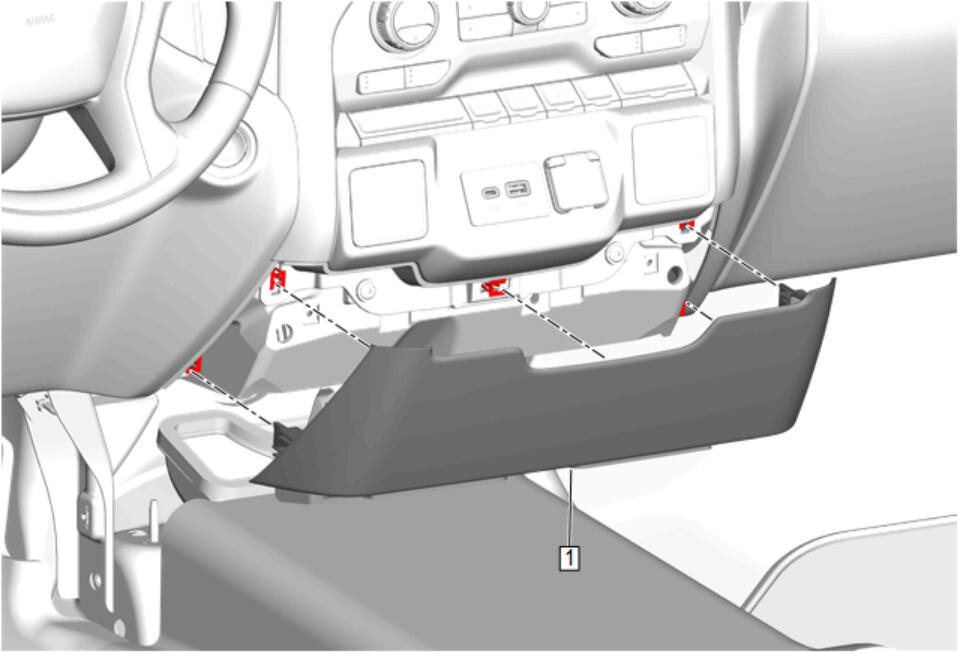

Instrument Panel Lower Trim Panel (1) - Install

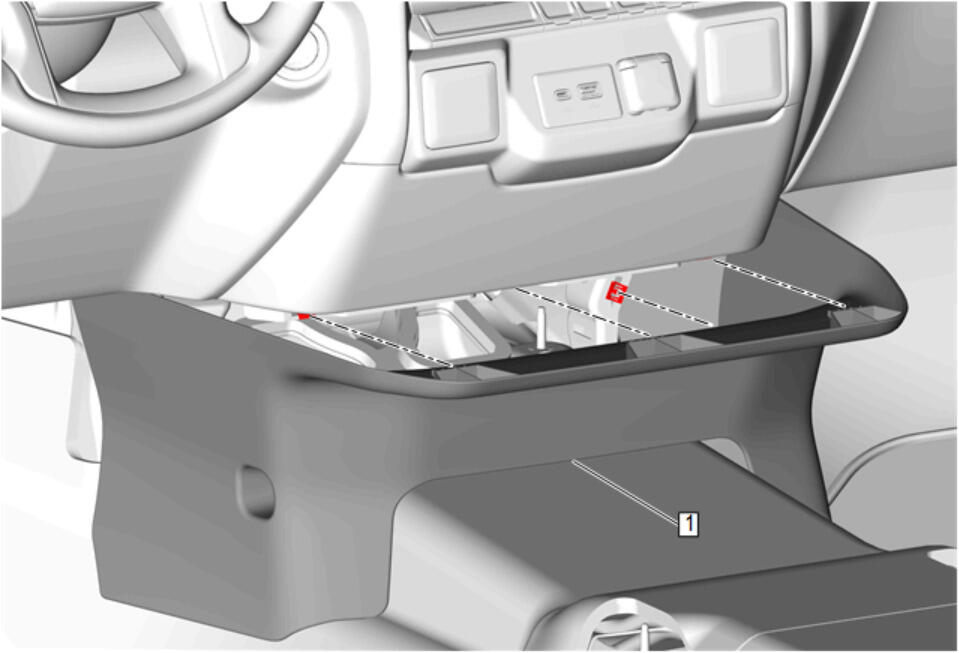

Instrument Panel Lower Center Trim Panel (1) - Install
Instrument Panel Lower Trim Panel Bolt (1) - Install and tighten - Fastener Specifications

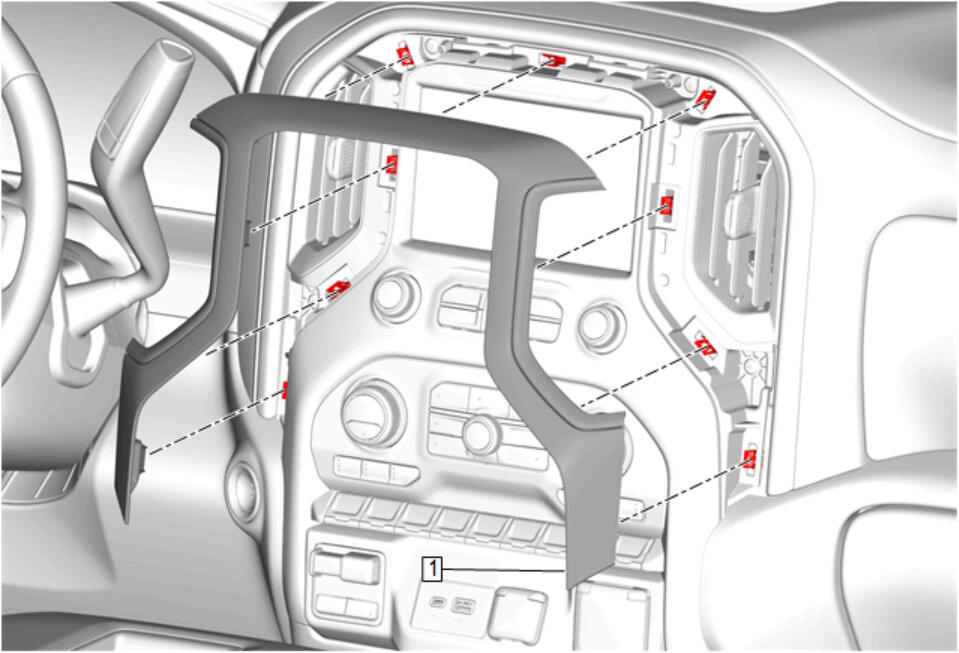

Instrument Panel Trim Plate (1) - Install
CAUTION:
Refer to Fastener Caution .
