Removal Procedure

Disable the SIR system. SIR Disabling and Enabling
Courtesy of GENERAL MOTORS COMPANY

Use a flat bladed plastic trim tool to depress the steering wheel airbag access hole cover detents to remove the 2 steering wheel airbag access hole covers (1).
Courtesy of GENERAL MOTORS COMPANY

Steering Wheel Airbag Bolt (1) - Remove [2x]
Release the connector position assurance (CPA) retainer.
Disconnect the electrical connectors.
Steering Wheel Airbag (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

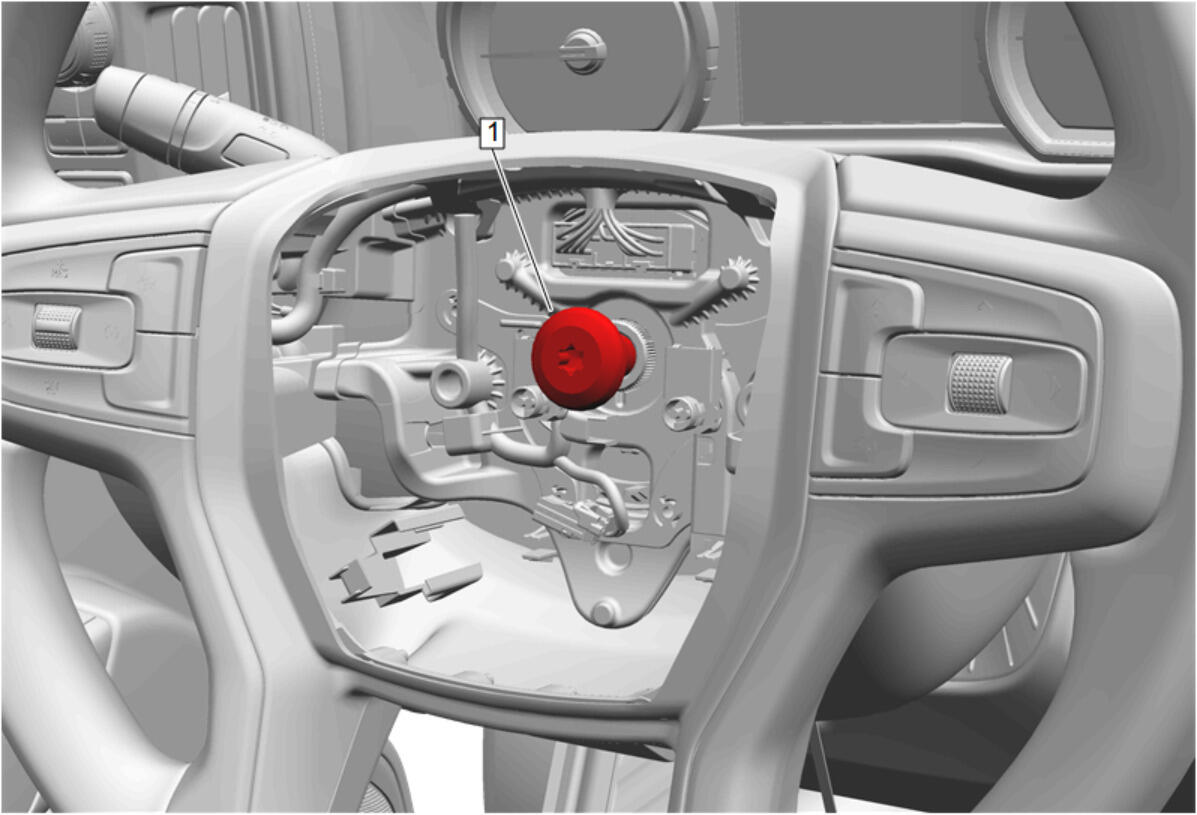

Loosen the steering wheel bolt (1) until 2 to 3 threads are still engaged.
Wiggle the steering wheel until the wheel disengages completely.
Courtesy of GENERAL MOTORS COMPANY

Steering Wheel Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Steering Wheel (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Using a small plastic trim tool, separate the instrument panel steering column upper trim cover (1) from the instrument panel steering column lower trim cover.
Instrument Panel Steering Column Upper Trim Cover (1) - Reposition
Courtesy of GENERAL MOTORS COMPANY
NOTE:
- Some components not shown for graphic clarity.
- Maneuver the instrument panel steering column lower trim cover around the steering column tilt and telescoping lever as necessary.
Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Remove [3x]
Instrument Panel Steering Column Lower Trim Cover (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

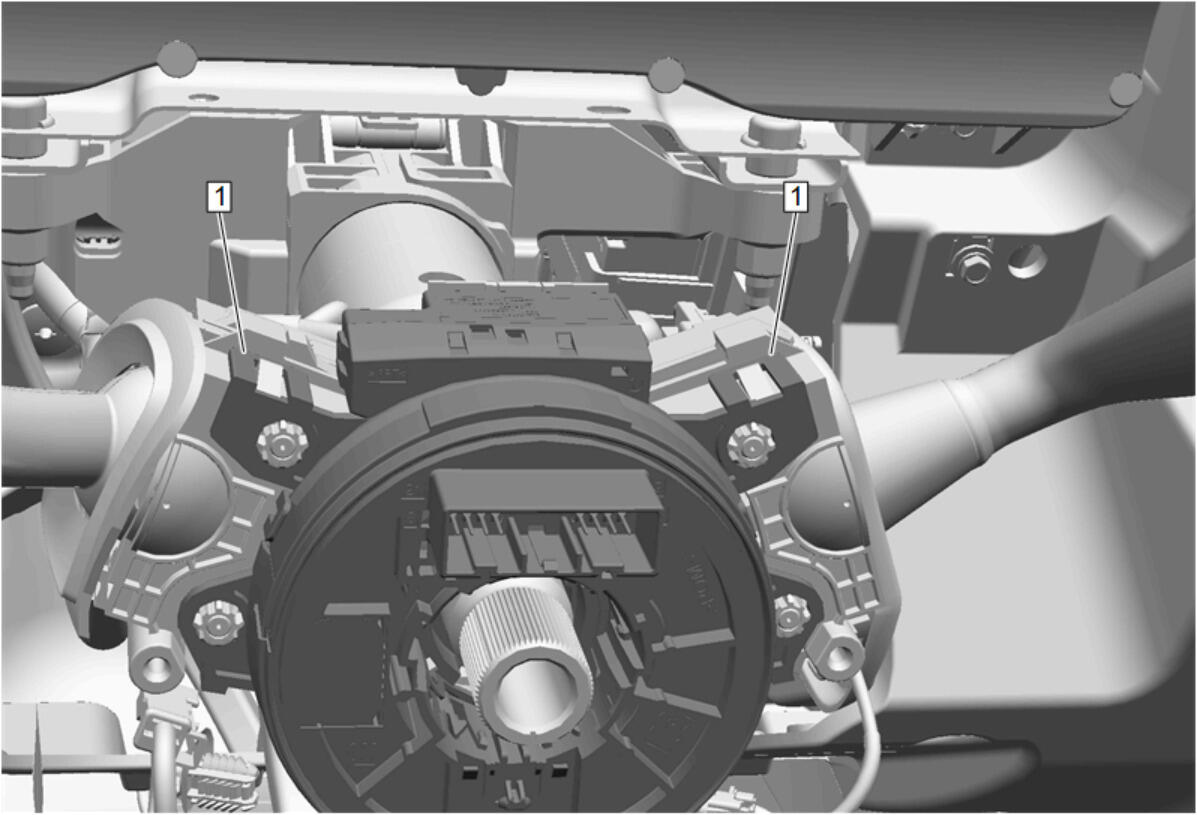

Disengage the steering wheel airbag coil upper retaining tabs (1).
Courtesy of GENERAL MOTORS COMPANY

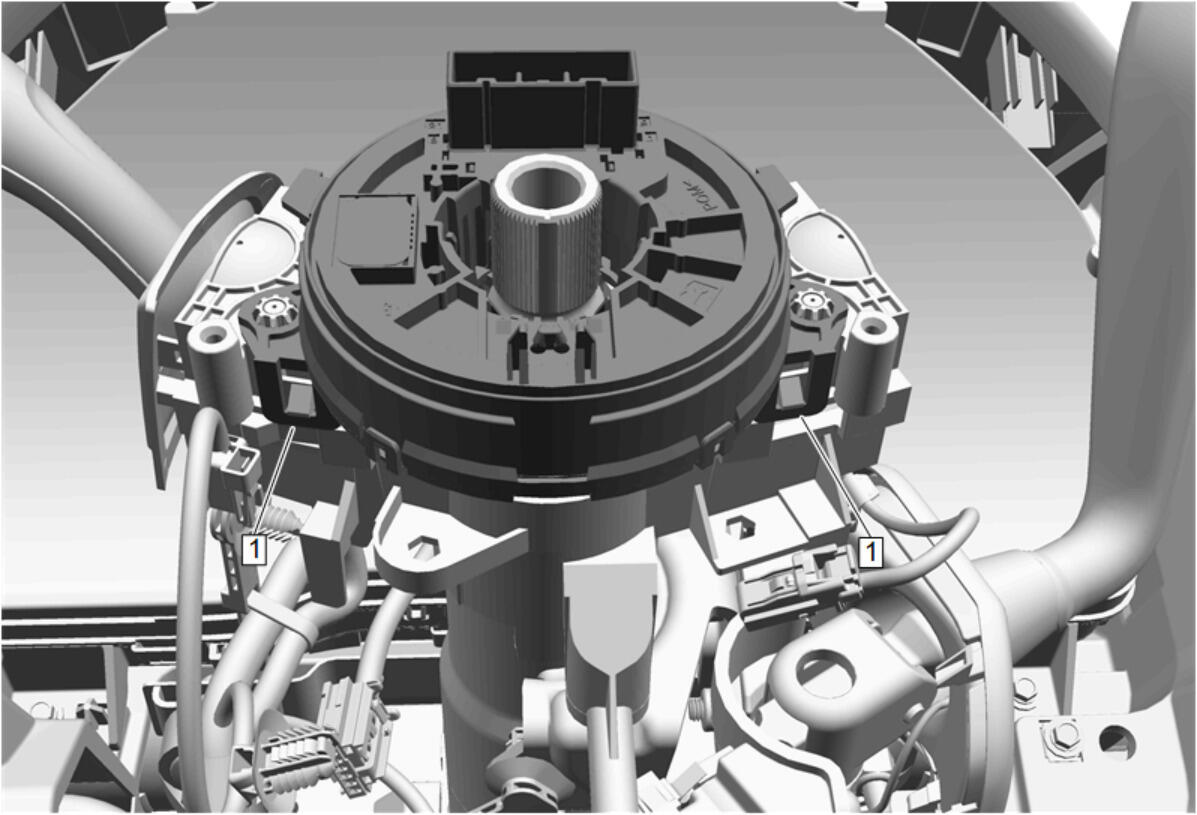

Disengage the steering wheel airbag coil lower retaining tabs (1).
Courtesy of GENERAL MOTORS COMPANY

Disconnect the electrical connector.
Remove the steering wheel airbag coil and steering angle sensor module (1) as an assembly.
Courtesy of GENERAL MOTORS COMPANY

Remove the steering angle sensor module (1) by releasing the clips on the steering wheel airbag coil.
