Fastener Specifications
Front Side Door Latch
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Side Door Latch Bolt [4x] | - | Yes | 9 N.m (80 lb in) | Front Side Door Latch Replacement |
Front Side Door Latch Striker
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Side Door Latch Striker Bolt [2x] | - | - | 22 N.m (16 lb ft) | Front Side Door Latch Striker Replacement |
Front Side Door Outside Handle Bracket Rear Bolt
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Side Door Outside Handle Bracket Rear Bolt | - | - | 4 N.m (35 lb in) | Front Side Door Lock Cylinder Bezel Replacement |
Front Side Door Outside Handle Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Side Door Outside Handle Bracket Bolt | - | - | 4.7 N.m (42 lb in) | Front Side Door Outside Handle Bracket Replacement |
Latch Control Module Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Latch Control Module Bracket Bolt [3x] | - | - | 2.5 N.m (22 lb in) | Rear Gate Module Replacement (QT6) |
Pickup Box Auxiliary Endgate Latch
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Pickup Box Auxiliary Endgate Latch Bolt | - | - | 25 N.m (18 lb ft) | Pickup Box Auxiliary Endgate Latch Replacement |

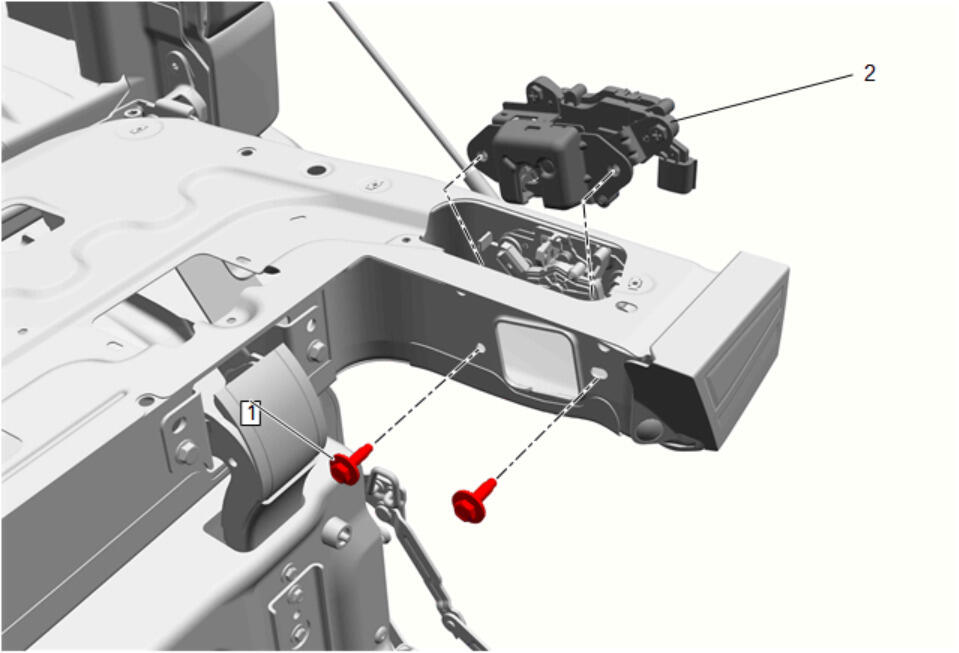

Pickup Box Endgate Latch
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Pickup Box Endgate Latch Bolt | - | - | 25 N.m (18 lb ft) | Pickup Box Endgate Latch Replacement (QK2) , or Pickup Box Endgate Latch Replacement (QK1) |

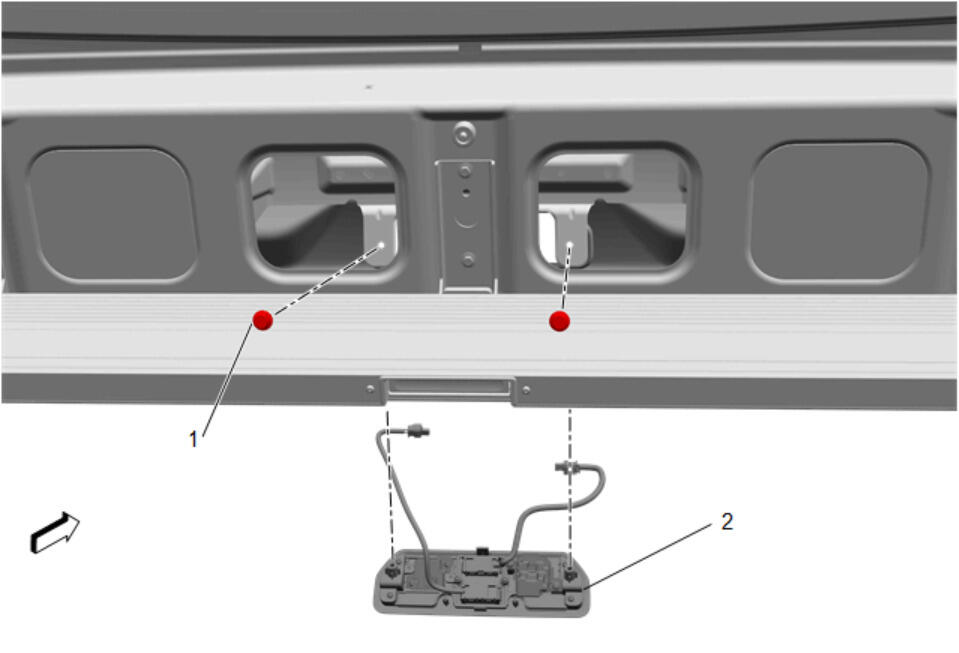

Pickup Box Endgate Latch Handle
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Pickup Box Endgate Latch Handle Bolt | - | - | 9 N.m (80 lb in) | Pickup Box Endgate Latch Handle Replacement (QK2) , or Pickup Box Endgate Latch Handle Replacement (QK1) |
Pickup Box Endgate Lock Actuator
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Pickup Box Endgate Lock Actuator Bolt | - | - | 9 N.m (80 lb in) | Pickup Box Endgate Lock Actuator Replacement (QT5 / QT6) , or Pickup Box Endgate Lock Actuator Replacement (- QT5 / QT6) |
| 2 | Pickup Box Endgate Lock Actuator Nut [2x] | - | - | 9 N.m (80 lb in) | Pickup Box Endgate Lock Actuator Replacement (QT5 / QT6) , or Pickup Box Endgate Lock Actuator Replacement (- QT5 / QT6) |
Pickup Box Endgate Power Assist Actuator
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Pickup Box Endgate Power Assist Actuator Bolt | - | - | 9 N.m (80 lb in) | Pickup Box Endgate Power Assist Actuator Replacement (QT6) |
Pickup Box Endgate Striker
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Pickup Box Endgate Striker Nut | - | - | 35 N.m (26 lb ft) | Pickup Box Endgate Striker Replacement |

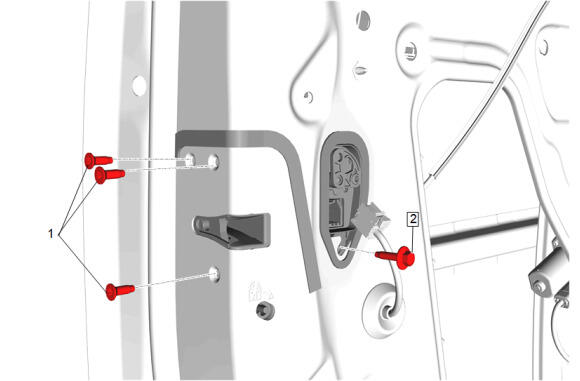

Rear Side Door Latch
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Side Door Latch Bolt [3x] | - | Yes | 9 N.m (80 lb in) | Rear Side Door Latch Replacement |
| 2 | Bolt | - | Yes | 9 N.m (80 lb in) | Rear Side Door Latch Replacement |
Rear Side Door Latch Striker
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Side Door Latch Striker Bolt [2x] | - | - | 22 N.m (16 lb ft) | Rear Side Door Latch Striker Replacement |
Rear Side Door Lock Cylinder Opening Cover
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Side Door Outside Handle Bracket Rear Bolt | - | - | 4 N.m (35 lb in) | Rear Side Door Lock Cylinder Opening Cover Replacement |
Rear Side Door Outside Handle Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Side Door Outside Handle Bracket Bolt | - | - | 4.7 N.m (42 lb in) | Rear Side Door Outside Handle Bracket Replacement |

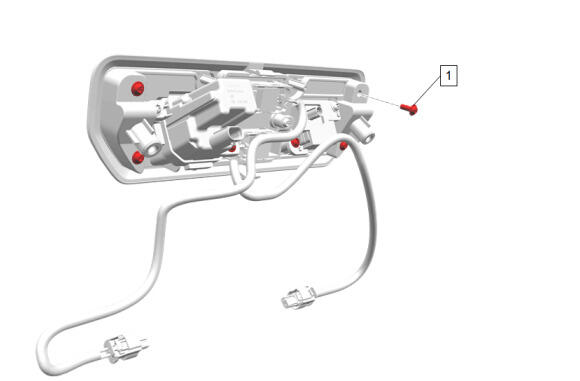

Rearview Camera Bracket Bolt
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rearview Camera Bracket Bolt | - | - | 2 N.m (18 lb in) | Liftgate Exterior Release Switch Replacement (QK2) , or Liftgate Exterior Release Switch Replacement (QK1) |
