Fastener Specifications
Forward Collision Alert Display (UEU & 1SA)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Forward Collision Alert Display Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Forward Collision Alert Display Replacement (UEU & 1SA) |
Forward Collision Alert Display (UEU & (3SA / 4SA))
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Forward Collision Alert Display Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Forward Collision Alert Display Replacement (UEU & (3SA / 4SA)) |

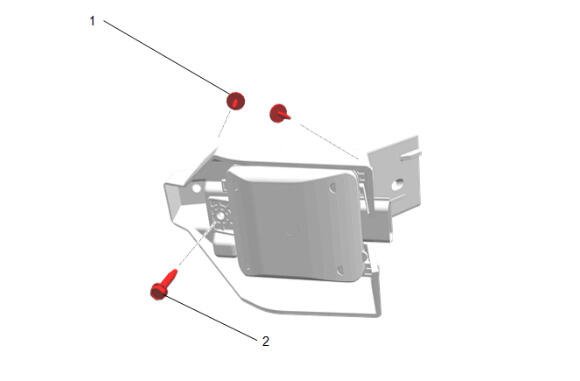

Parking Assist Control Module (-ULV)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Bumper Impact Bar Bracket Bolt - Side Object Sensing Alert Module [2x] | - | - | 2.5 N.m (22 lb in) | Side Object Sensing Alert Module Bracket Replacement (- ULV) |
| 2 | Side Object Sensing Alert Module Bolt | - | - | 2.5 N.m (22 lb in) | Side Obstacle Detection Control Module Replacement (- ULV) |

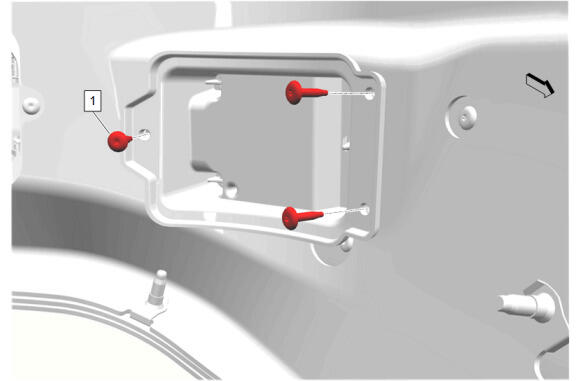

Side Object Sensing Alert Module Bracket (ULV)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Bumper Impact Bar Bracket Bolt - Side Object Sensing Alert Module [3x] | - | - | 2.5 N.m (22 lb in) | Side Object Sensing Alert Module Bracket Replacement (ULV) |

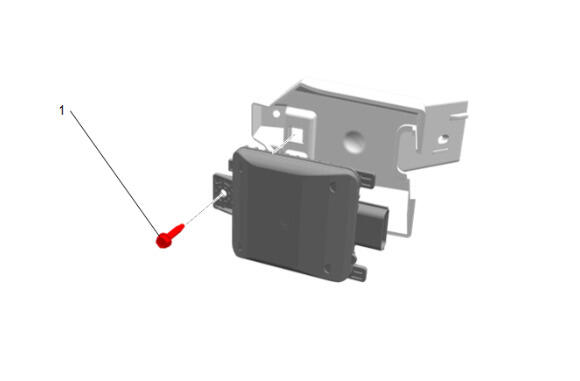

Side Obstacle Detection Control Module (ULV)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Bumper Fascia Bolt | - | - | 2.5 N.m (22 lb in) | Side Obstacle Detection Control Module Replacement (ULV) |
Side Obstacle Detection Control Module (- ULV)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Side Object Sensing Alert Module Bolt | - | - | 2.5 N.m (22 lb in) | Side Obstacle Detection Control Module Replacement (ULV) |
