Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

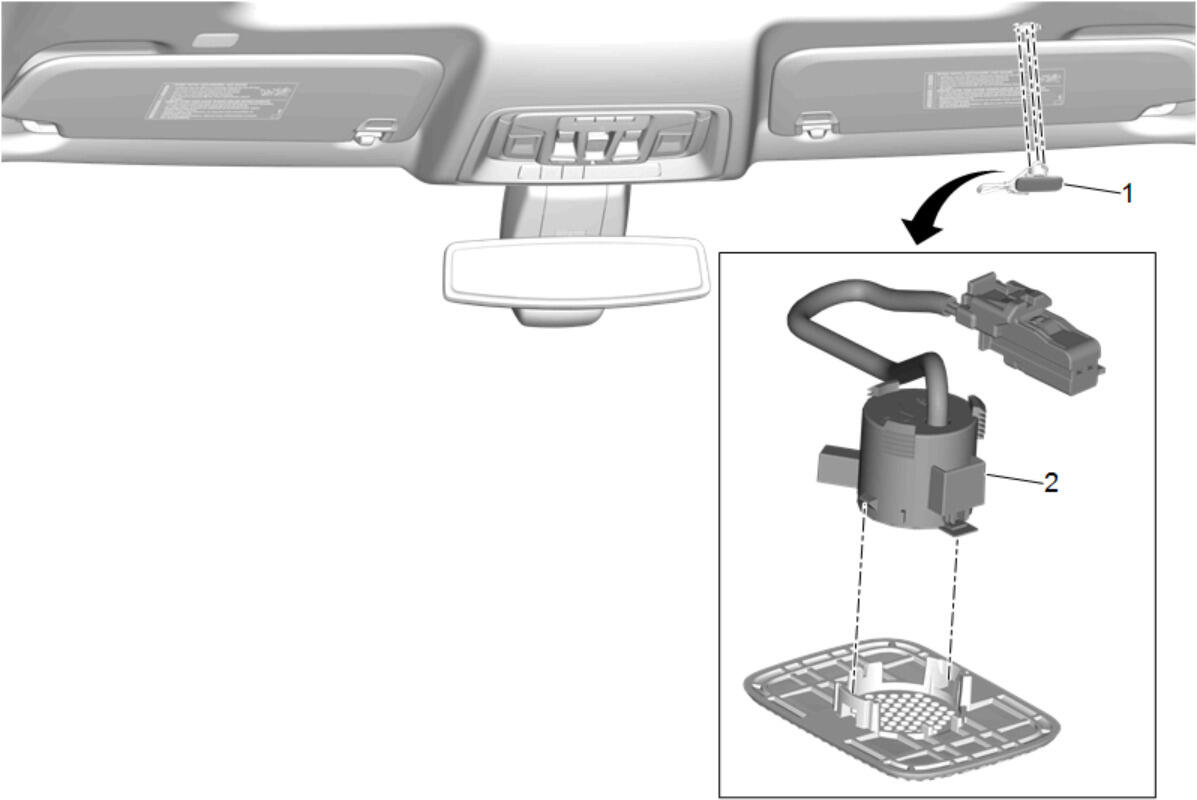

Communication Interface Module Microphone (1) - Install
Secure the retaining tabs.
Connect the electrical connector.
Use hot melt adhesive to install the communication interface module microphone harness. Adhesives, Fluids, Lubricants, and Sealers
Install the headlining trim panel.
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.
Roof Console (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

NOTE:
Use a light to locate the fastener boss when installing the fasteners. Pull down on the forward end of the roof console to verify that the retention clips are secure.

Roof Console Bolt (2) - Install and tighten [2x] - Fastener Specifications
Roof Console Lamp Trim Plate (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

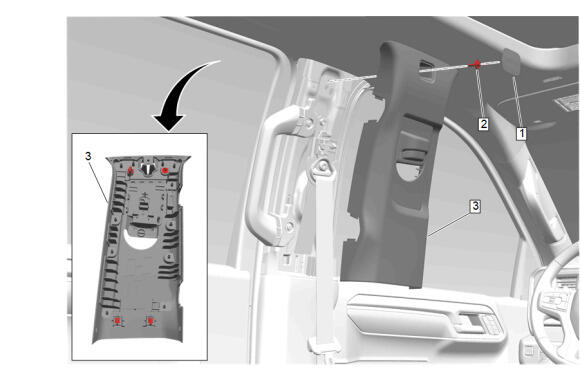

Center Pillar Upper Trim Panel - Right Side (3) - Install
Center Pillar Upper Garnish Molding Bolt - Right Side (2) - Install and tighten - Fastener Specifications
Center Pillar Upper Trim Panel Bolt Cap - Right Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

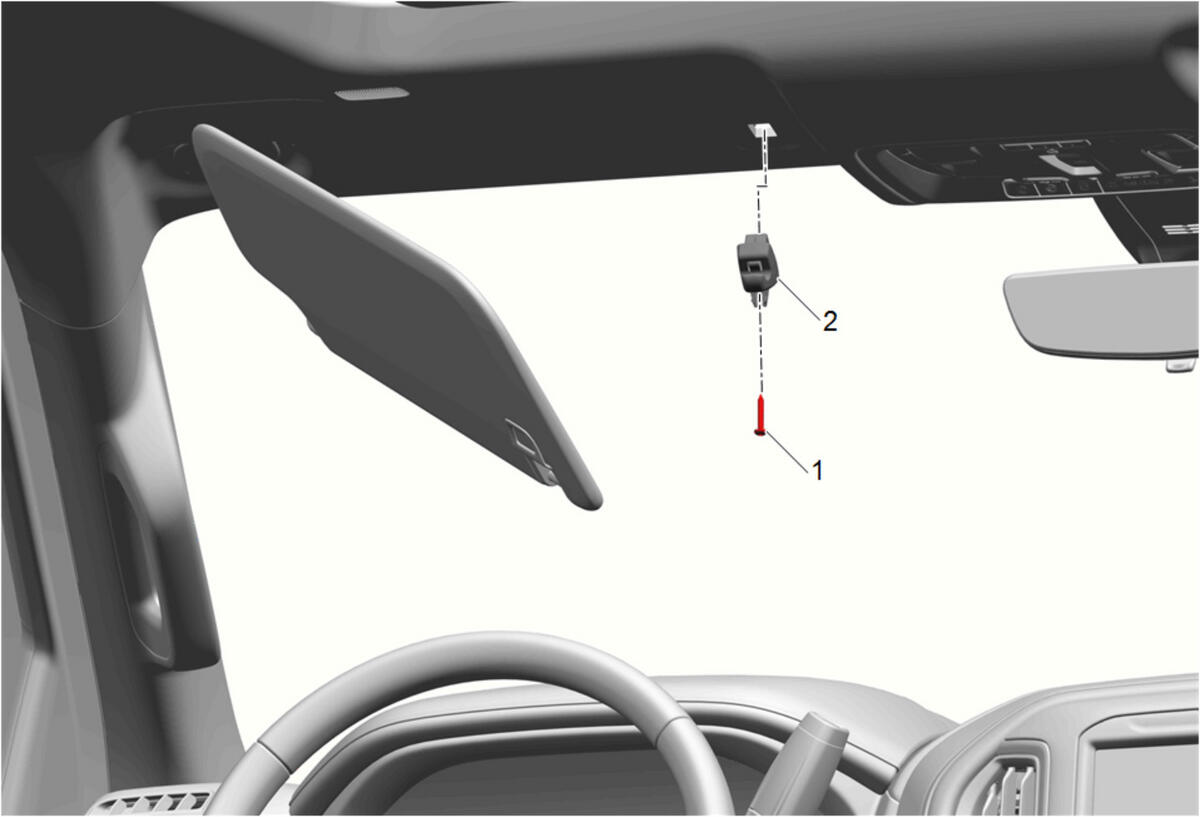

Sunshade Support Bolt - Right Side (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

{If equipped} Connect the electrical connector.

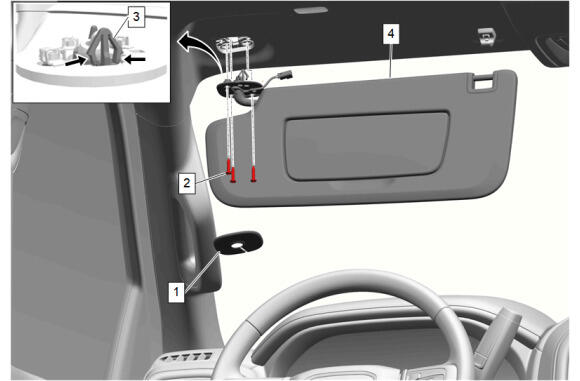

Sunshade - Right Side (3) - Install
Sunshade Bolt - Right Side (2) - Install and tighten [3x] - Fastener Specifications
Sunshade Retainer Bolt Cover - Right Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

{If equipped} Connect the electrical connector.
Ensure tab is fully seated in the instrument panel upper trim panel prior to engaging upper clip.

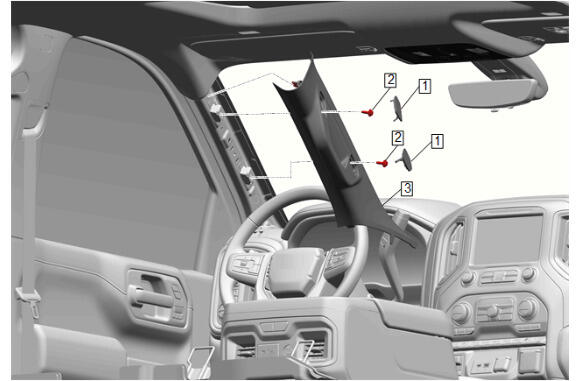

Windshield Garnish Molding - Right Side (3) - Install
Windshield Pillar Assist Handle Bolt - Right Side (2) - Install and tighten [2x] - Fastener Specifications
Windshield Pillar Assist Handle Cover - Right Side (1) - Install [2x]
