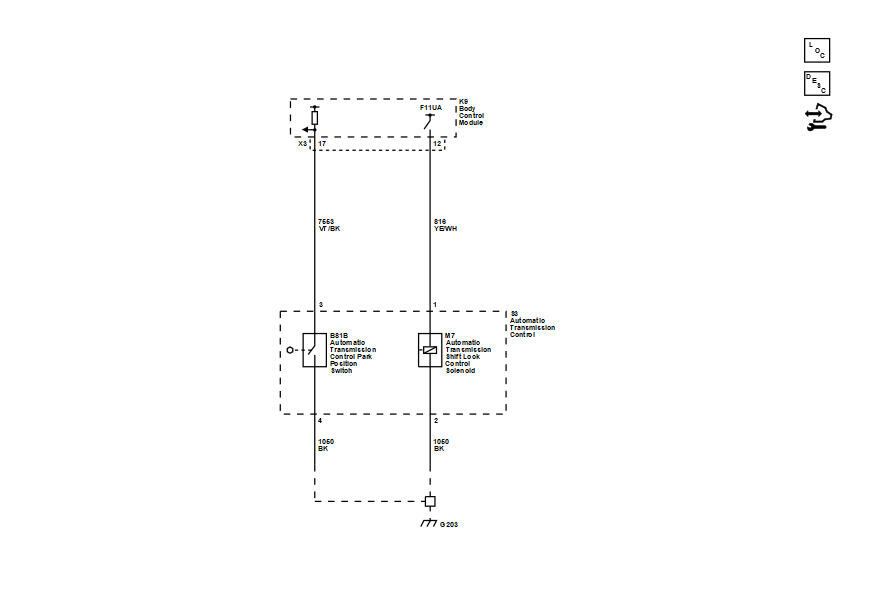

Home >> GMC >> 2025 >> Sierra 1500 AT4, 3.0L Eng VIN 8 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Shift Lock Control System >> Schematic Wiring Diagrams >> Shift Lock Control Wiring Schematics >> Shift Lock Control
