Installation Procedure
Secure the retaining tab.
- Connect the wiring harness retainers.
- Connect all electrical connectors.

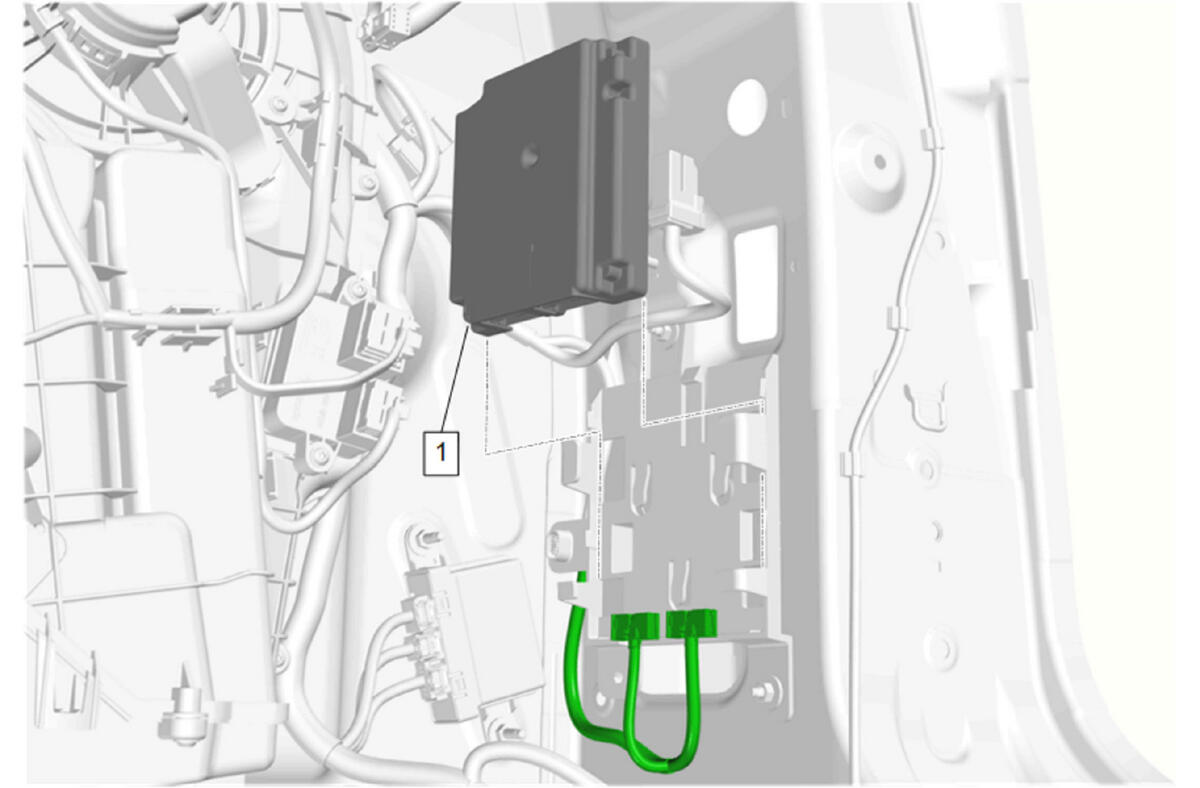

- Automated Driving Mapping Module (1) - Install

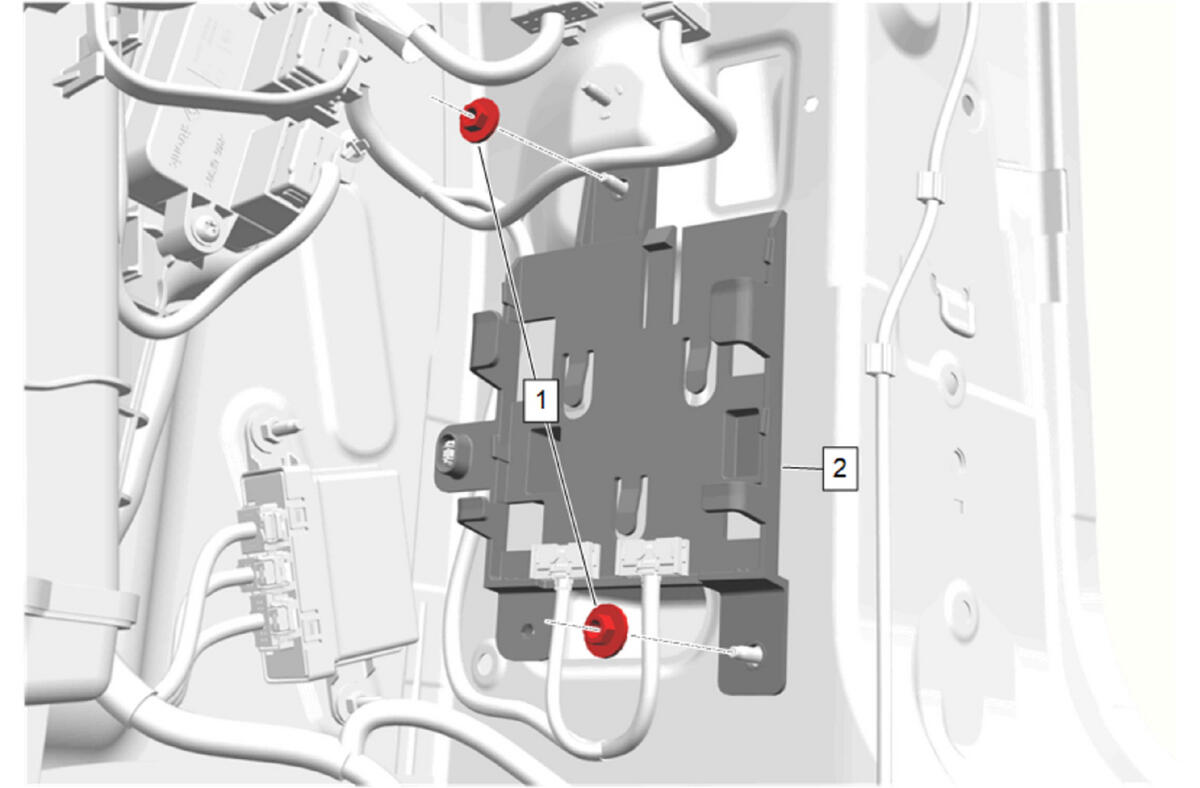

Active Safety Control Module Bracket (2) - Install
- Active Safety Control Module Bracket Nut (1) - Install and tighten [2x] - Fastener Specifications

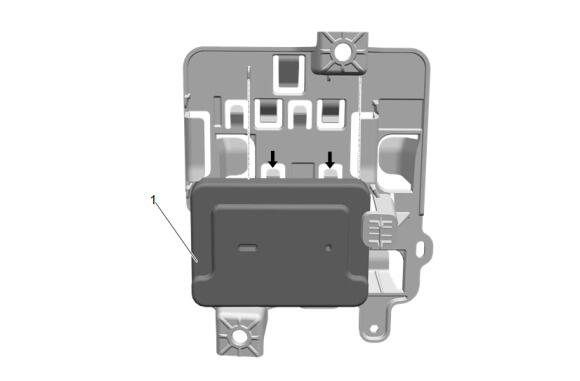

Image Processing Module (1) - Install
- Secure the retaining tab.
- Connect the electrical connectors.
Install the wiring harness retainers, as needed.
- Quarter Lower Rear Trim Panel (1) - Install
Cargo Tie Down Loop (4) - Install
- Cargo Tie Down Loop Bolt (3) - Install and tighten - Fastener Specifications
- Cargo Tie Down Loop Bolt Cap (2) - Close
- Convenience Net Retainer (1) - Install and tighten - Fastener Specifications
3rd Row Seat Belt Retractor Bolt- Lower (1) - Install and tighten - Fastener Specifications
Body Rear Corner Upper Garnish Molding (1) - Install
Body Rear Corner Upper Garnish Molding Bolt (1) - Install and tighten - Fastener Specifications
Body Side Rear Window Garnish Molding (1) - Install
Body Lock Pillar Upper Trim Panel (1) - Install
Quarter Window Trim Finish Panel Bolt (2) - Install and tighten - Fastener Specifications
- Quarter Window Trim Finish Panel Bolt Cap (1) - Install
Rear Seat Belt Retractor Anchor Plate Bolt (2) - Install and tighten - Fastener Specifications
- Rear Seat Belt Retractor Sleeve (1) - Reposition
Rear End Trim Finish Panel (1) - Install
Liftgate Lock Striker Cover (1) - Install
Liftgate Weatherstrip (1) - Reposition
Return the rear seat (1) to the original position.
Rear Side Door Sill Garnish Molding (1) - Install
- Enable the SIR System. SIR Disabling and Enabling
3rd Row Seat (2) - Install - 3rd Row Seat Removal and Installation
- Perform the necessary programming and setup procedure:Control Module References
Refer to Fastener Caution .
