X50D Fuse Block - Battery X6

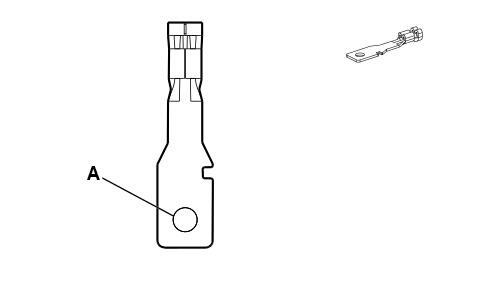

GM6017542Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Positive Battery Cable
  • OEM Connector: Not Available
  • Service Connector: Service by Cable Assembly - See Part Catalog
  • Description: 1-Way Ring Terminal
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool
I Not required No Tool Required No Tool Required
Pin Size Color Circuit Function Terminal Type ID Option
A 35 RD 2 Battery Positive Voltage I -
