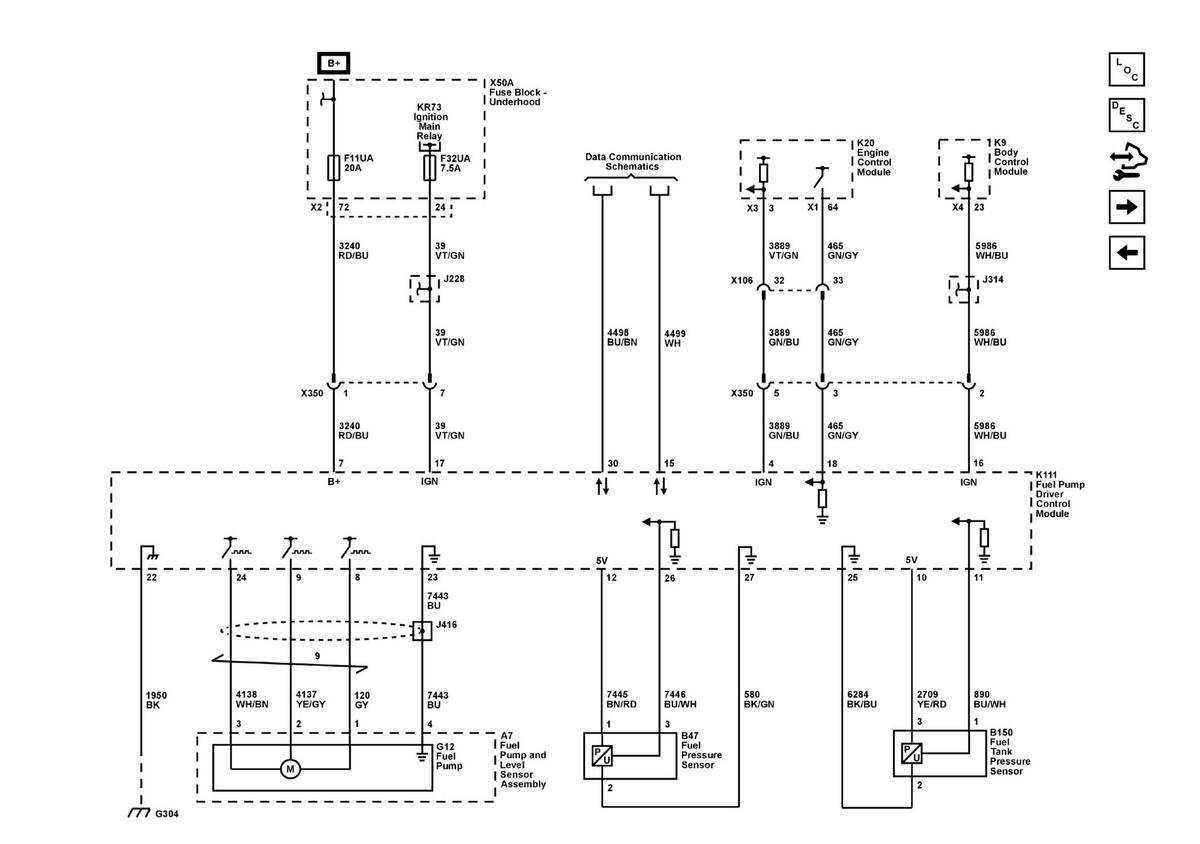

Fuel Controls - Fuel Pump and Fuel Pump Driver Control Module

GM6228449Courtesy of GENERAL MOTORS COMPANY
