K4 Running Board Control Module X3 (B3L)
WARNING: This page is about a different car, the 2024 Cadillac Escalade ESV and 2024 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

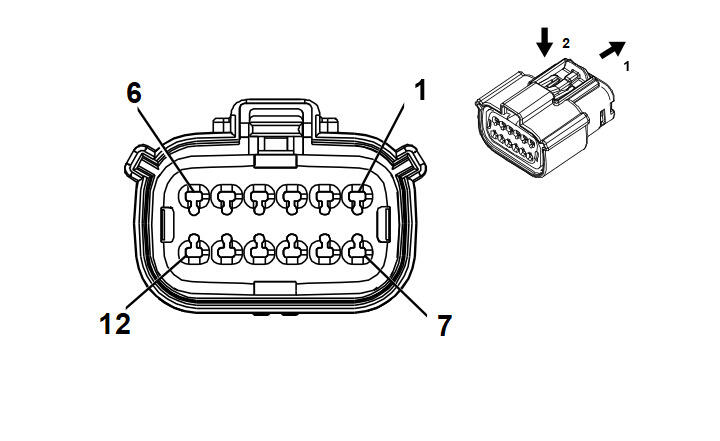

Connector Part Information
- Harness Type: Chassis Wiring Harness
- OEM Connector: 35435906
- Service Connector: 19352907
- Description: 12-Way F 1.5 MX Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
85528055 |
J-35616-2A (GY) |
J-38125-217 |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GN/RD |
7464 |
Right Running Board Step Motor Hall Sensor 5V Reference |
I |
- |
| 2 |
0.5 |
VT |
7465 |
Right Running Board Step Motor Hall Sensor Signal |
I |
- |
| 3 |
0.5 |
YE/BK |
7463 |
Right Running Board Step Motor Hall Sensor Low Reference |
I |
- |
| 4 |
0.5 |
BN |
4748 |
Left Running Board Step Courtesy Lamp Control |
I |
- |
| 5 |
0.5 |
GY/VT |
4749 |
Right Running Board Step Courtesy Lamp Control |
I |
- |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
| 7 |
0.5 |
VT/RD |
7468 |
Left Running Board Step Motor Hall Sensor 5V Reference |
I |
- |
| 8 |
0.5 |
YE |
7467 |
Left Running Board Step Motor Hall Sensor Signal |
I |
- |
| 9 |
0.5 |
YE/BN |
7466 |
Left Running Board Step Motor Hall Sensor Low Reference |
I |
- |
| 10 - 12 |
- |
- |
- |
Not Occupied |
- |
- |
