B355RF Communication Interface Module Microphone - Right Front (UQH)
WARNING: This page is about a different car, the 2024 Cadillac Escalade ESV and 2024 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

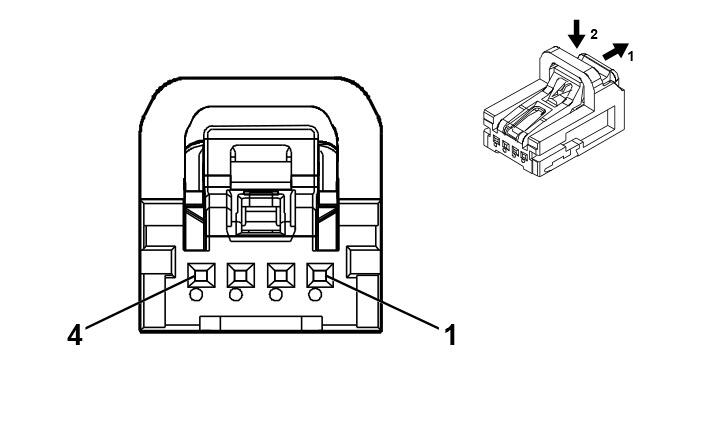

Connector Part Information
- Harness Type: Headlining Trim Panel Harness
- OEM Connector: 35068218
- Service Connector: 84769202
- Description: 4-Way F Mini 50 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Service by Cable |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BU |
8579 |
Automotive Audio Bus A2B Serial Data 1 [-] |
I |
- |
| 2 |
0.35 |
GN |
8580 |
Automotive Audio Bus A2B Serial Data 1 [+] |
I |
- |
| 3 |
0.35 |
GN |
8580 |
Automotive Audio Bus A2B Serial Data 1 [+] |
I |
- |
| 4 |
0.35 |
BU |
8579 |
Automotive Audio Bus A2B Serial Data 1 [-] |
I |
- |
