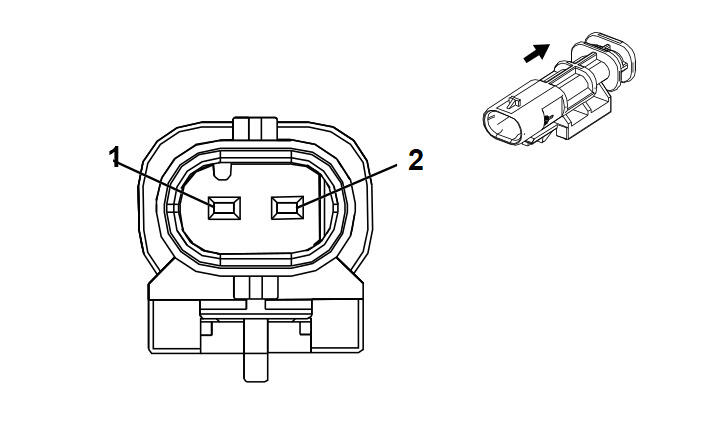

Q37LFB Front Shock Absorber Actuator - Left (Z95)
WARNING: This page is about a different car, the 2024 Cadillac Escalade ESV and 2024 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Chassis Wiring Harness
- OEM Connector: 33207247
- Service Connector: 85533165
- Description: 2-Way M 1.2 MCON Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-17 (L-GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BN/WH |
1107 |
Left Front Shock Absorber Actuator Control |
I |
- |
| 2 |
0.5 |
GY/BU |
1113 |
Left Front Shock Absorber Actuator Control |
I |
- |
