K69 Transfer Case Control Module (L87)
WARNING: This page is about a different car, the 2024 Cadillac Escalade ESV and 2024 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

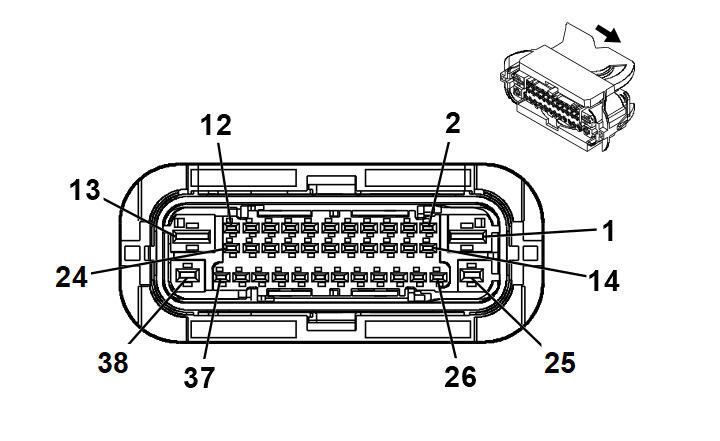

Connector Part Information
- Harness Type: Engine Wiring Harness
- OEM Connector: 35497867
- Service Connector: 86825458
- Description: 38-Way F 1.5, 2.8, 4.8 MCP Series, Sealed (BK with BN Inner Connector)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19368624 |
J-35616-35 (VT) |
J-38125-212 |
| II |
19369235 |
J-35616-14 (GN) |
EL-38125-560A |
| III |
85158596 |
J-35616-40 (BU) |
EL-38125-560A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2.5 |
RD/GY |
1342 |
Battery Positive Voltage |
III |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.5 |
BU/YE |
4979 |
AUTOSAR CAN Bus [+] 2 Serial Data |
II |
- |
| 4 |
0.5 |
WH |
4978 |
AUTOSAR CAN Bus [-] 2 Serial Data |
II |
- |
| 5 |
0.5 |
WH/GN |
7479 |
Rotary Position Sensor Signal |
II |
- |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
| 7 |
0.5 |
YE |
7474 |
Incremental Encoder Direction Signal |
II |
- |
| 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
0.5 |
YE/WH |
1695 |
4WD Locked Range Indicator Control |
II |
- |
| 10 |
- |
- |
- |
Not Occupied |
- |
- |
| 11 |
0.5 |
VT/GY |
8017 |
Secondary Axle Motor Relay Control |
II |
- |
| 12 |
0.5 |
GY/BK |
1570 |
Front Axle Actuator Control |
II |
- |
| 13 |
2.5 |
YE/VT |
1553 |
Transfer Case Motor Counter Clockwise Control |
III |
- |
| 14 |
- |
- |
- |
Not Occupied |
- |
- |
| 15 |
0.5 |
BU/YE |
4979 |
AUTOSAR CAN Bus [+] 2 Serial Data |
II |
- |
| 16 |
0.5 |
WH |
4978 |
AUTOSAR CAN Bus [-] 2 Serial Data |
II |
- |
| 17 |
- |
- |
- |
Not Occupied |
- |
- |
| 18 |
0.5 |
VT/BK |
2139 |
Run/Crank Ignition 1 Voltage |
II |
- |
| 19 |
0.5 |
BU/GY |
7473 |
Incremental Encoder Impulse Signal |
II |
- |
| 20 |
0.5 |
WH/RD |
7477 |
Gear Position Sensor 5V Reference |
II |
- |
| 21 - 23 |
- |
- |
- |
Not Occupied |
- |
- |
| 24 |
0.5 |
BK |
8015 |
Transfer Case Motor Low Reference |
II |
- |
| 25 |
2.5 |
BK |
6550 |
Ground |
I |
- |
| 26 |
- |
- |
- |
Not Occupied |
- |
- |
| 27 |
0.5 |
BK |
8014 |
Transfer Case Lock Solenoid Low Reference |
II |
- |
| 28 - 29 |
- |
- |
- |
Not Occupied |
- |
- |
| 30 |
0.5 |
YE/BK |
7478 |
Gear Position Sensor Low Reference |
II |
- |
| 31 |
0.5 |
WH/GN |
7475 |
Incremental Encoder Sensor Voltage Reference |
II |
- |
| 32 |
- |
- |
- |
Not Occupied |
- |
- |
| 33 |
0.5 |
BU |
8013 |
Transfer Case Lock Solenoid Control 2 |
II |
- |
| 34 |
0.5 |
YE/BN |
1569 |
Transfer Case Lock Solenoid Valve Control |
II |
- |
| 35 |
- |
- |
- |
Not Occupied |
- |
- |
| 36 |
0.5 |
VT |
7476 |
Incremental Encoder Sensor Low Reference |
II |
- |
| 37 |
- |
- |
- |
Not Occupied |
- |
- |
| 38 |
2.5 |
YE/GY |
1552 |
Transfer Case Motor Clockwise Control |
I |
- |
