K43 Power Steering Control Module X3
WARNING: This page is about a different car, the 2024 Cadillac Escalade ESV and 2024 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

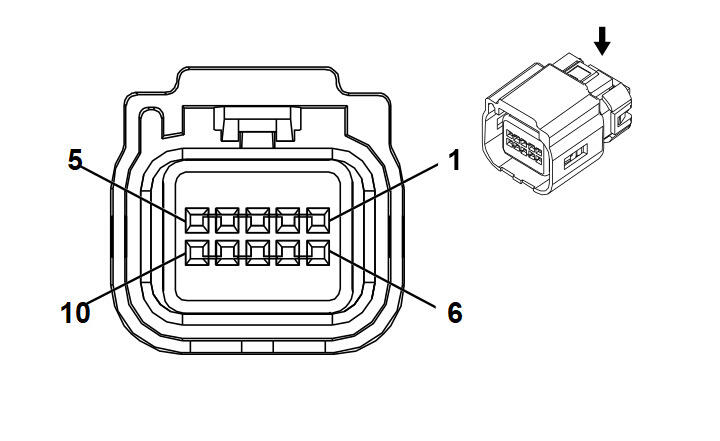

Connector Part Information
- Harness Type: Power Steering Control Module Wiring Harness
- OEM Connector: 13817800
- Service Connector: Service by Harness - See Part Catalog
- Description: 10-Way F 0.64 Kaizen Series, Sealed (BN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-64B (L-BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BU |
8367 |
Handwheel Channel A Torque Pressure Sensor 1 SENT Signal |
I |
- |
| 2 |
0.5 |
RD |
8366 |
Handwheel Channel A High Reference |
I |
- |
| 3 |
0.5 |
BK |
8370 |
Handwheel Channel A Low Reference |
I |
- |
| 4 |
0.5 |
WH/RD |
8371 |
Handwheel Channel B High Reference |
I |
- |
| 5 |
0.5 |
WH/BU |
8372 |
Handwheel Channel B Torque Pressure Sensor 1 SENT Signal |
I |
- |
| 6 |
0.5 |
VT |
8368 |
Handwheel Channel A Torque Pressure Sensor 2 SENT Signal |
I |
- |
| 7 |
0.5 |
OG |
8369 |
Handwheel Channel A Angle Position Sensor SENT Signal |
I |
- |
| 8 |
0.5 |
GY |
8375 |
Handwheel Channel B Low Reference |
I |
- |
| 9 |
0.5 |
YE |
8374 |
Handwheel Channel B Angle Position Sensor SENT Signal |
I |
- |
| 10 |
0.5 |
GN |
8373 |
Handwheel Channel B Torque Pressure Sensor 2 SENT Signal |
I |
- |
