Installation Procedure
- NOTE:
Some components not shown for graphic clarity.

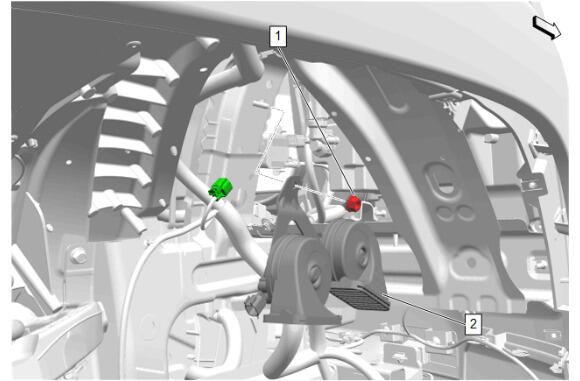

Horn (2) - Install
- Horn Nut (1) - Install and tighten - Fastener Specifications
- Connect the electrical connector.

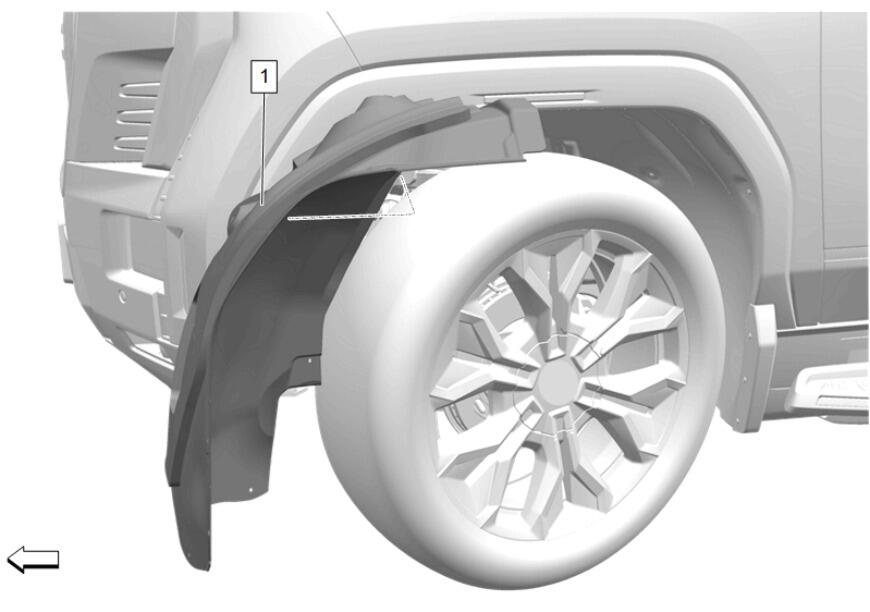

Rotate or maneuver the right side front wheelhouse front liner (1) as necessary and position it in place.

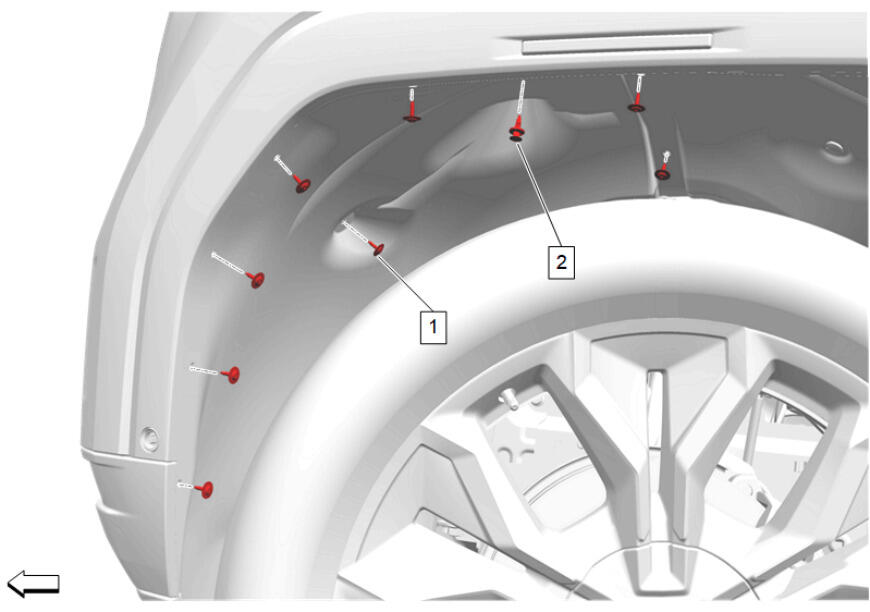

Front Wheelhouse Liner Bolt - Right Side (1) - Install and tighten [5x] - Fastener Specifications
Front Wheelhouse Liner Retainer - Right Side (2) - Install
- Front Wheelhouse Liner Bolt - Right Side (1) - Install and tighten [8x] - Fastener Specifications
- Return the front wheel to its original position.
CAUTION:
Refer to Fastener Caution
