Fastener Specifications

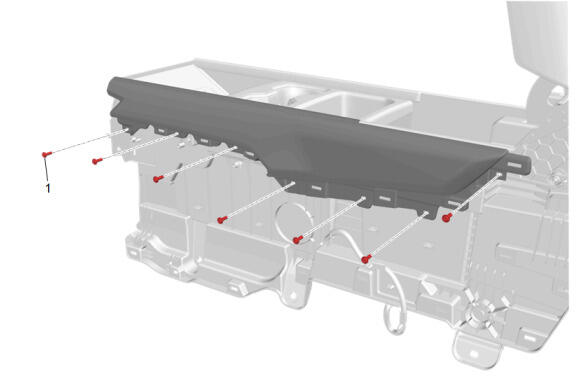

GM6277925Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Floor Console Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Trim Plate Bolt [7x] - - 1.5 N.m (13 lb in) Front Floor Console Applique Replacement

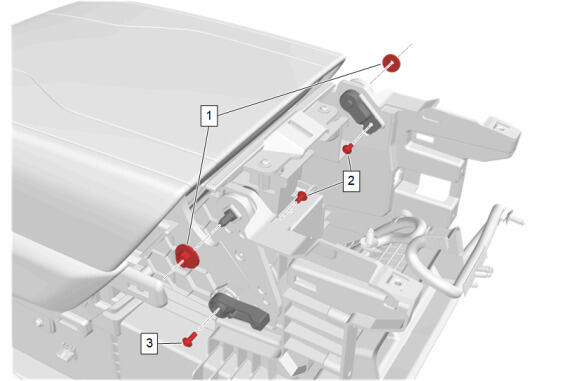

GM6287430Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Floor Console Armrest

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Armrest Nut [2x] - - 3 N.m (27 lb in) Front Floor Console Armrest Dampener Replacement
2 Front Floor Console Armrest Bolt [2x] - - 0.85 N.m (8 lb in) Front Floor Console Armrest Dampener Replacement
3 Front Floor Console Rear Bracket Bolt - - 1.5 N.m (13 lb in) Front Floor Console Center Compartment Door Latch Replacement

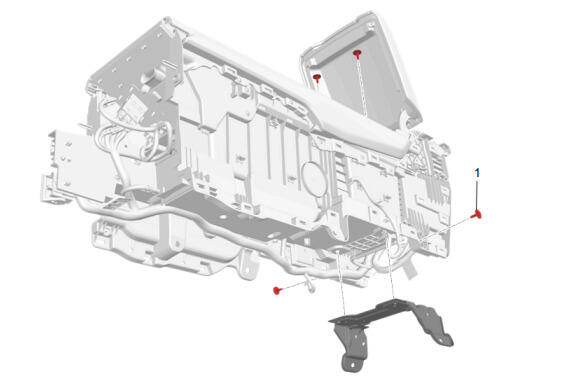

GM6309747Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Floor Console Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Intermediate Bracket Bolt [4x] - - 9 N.m (80 lb in) Front Floor Console Bracket Replacement

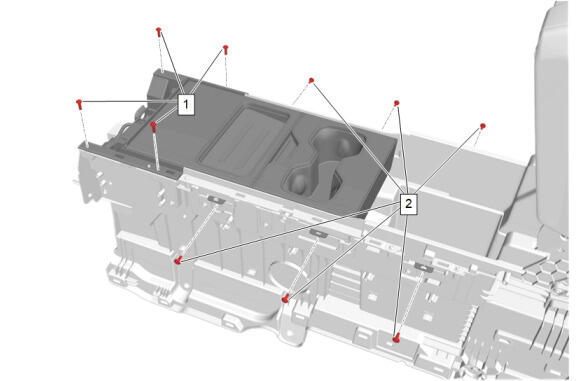

GM6473846Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Floor Console Center Compartment and Cup Holder

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Compartment Bolt [4x] - - 1.5 N.m (13 lb in) Front Floor Console Center Compartment Replacement
2 Front Floor Console Cup Holder Bolt [6x] - - 2.5 N.m (22 lb in) Front Floor Console Cup Holder Replacement

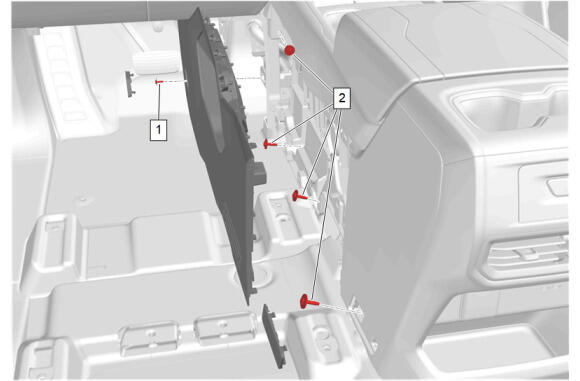

GM6287431Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Floor Console Extension Panel

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Extension Bolt - - 2.5 N.m (22 lb in) Front Floor Console Extension Panel Replacement
2 Front Floor Console Retainer Bolt [4x] - - 9 N.m (80 lb in) Front Floor Console Removal and Installation

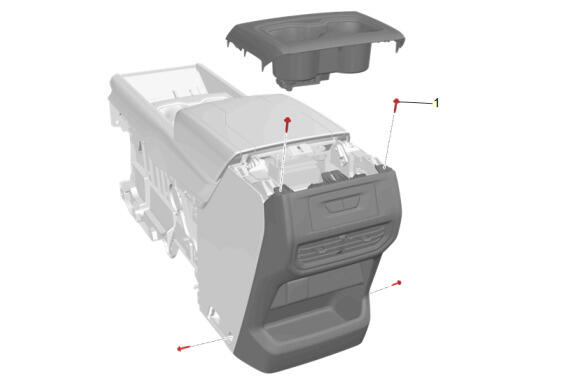

GM6287433Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Floor Console Rear Trim Panel

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Rear Cover Bolt [4x] - - 2.5 N.m (22 lb in) Front Floor Console Rear Trim Panel Replacement

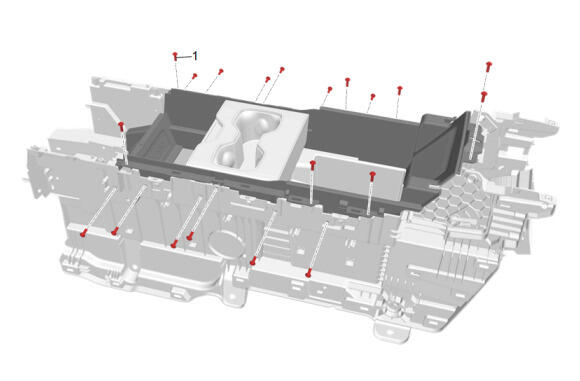

GM6473887Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Floor Console Upper Panel

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Trim Plate Bolt [20x] - - 1.5 N.m (13 lb in) Front Floor Console Upper Panel Replacement

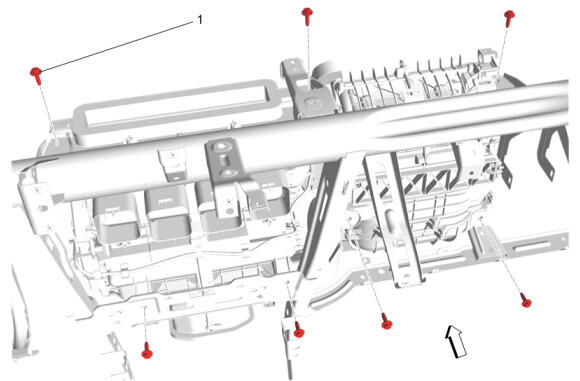

GM6312183Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Heater and Air Conditioning Evaporator and Blower Module

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Heater and Air Conditioning Evaporator and Blower Module Bolt [7x] - - 9 N.m (80 lb in) Instrument Panel Tie Bar Replacement

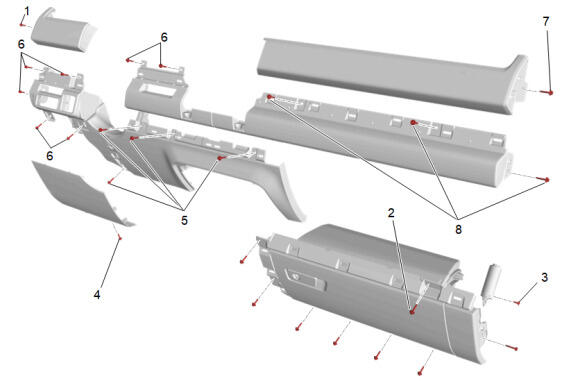

GM6561398Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Instrument Panel

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Carrier Bolt - - 2.5 N.m (22 lb in) Instrument Panel Trim Plate Applique Replacement
2 Instrument Panel Compartment Bolt [8x] - - 2.5 N.m (22 lb in) Instrument Panel Compartment Replacement
3 Instrument Panel Compartment Door Dampener Bolt - - 2.5 N.m (22 lb in) Instrument Panel Compartment Replacement
4 Instrument Panel Knee Bolster Bolt - - 2.5 N.m (22 lb in) Instrument Panel Knee Bolster Replacement
5 Instrument Panel Lower Trim Panel Bolt [4x] - - 2.5 N.m (22 lb in) Instrument Panel Lower Trim Panel Replacement
6 Instrument Panel Switch Trim Plate Bolt [7x] - - 2.5 N.m (22 lb in) Instrument Panel Switch Trim Plate Replacement - Right Side
Instrument Panel Switch Trim Plate Replacement - Left Side
7 Instrument Panel Trim Pad Applique Bolt - - 2.5 N.m (22 lb in) Instrument Panel Trim Pad Applique Replacement
8 Instrument Panel Trim Pad Bolt [3x] - - 2.5 N.m (22 lb in) Instrument Panel Center Trim Pad Replacement

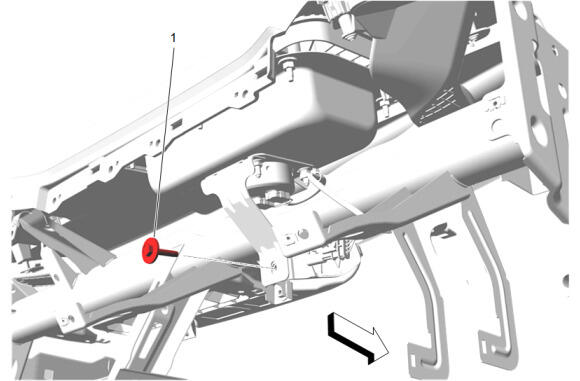

GM6308462Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Instrument Panel Airbag

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Airbag Bolt - - 9 N.m (80 lb in) Instrument Panel Upper Trim Panel Removal and Installation

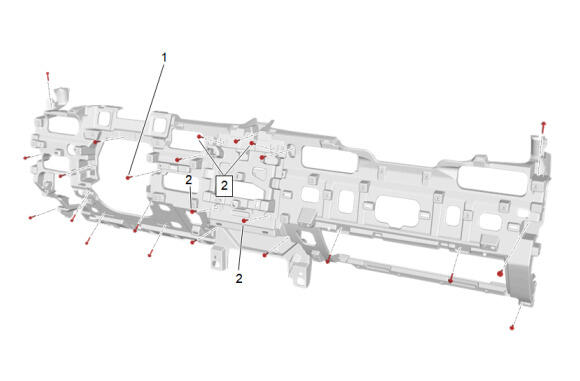

GM6561397Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Instrument Panel Carrier

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Carrier Bolt [20x] - - 2.5 N.m (22 lb in) Instrument Panel Carrier Removal and Installation
2 Instrument Panel Upper Trim Panel Bracket Bolt [4x] - - 2.5 N.m (22 lb in) Instrument Panel Carrier Removal and Installation

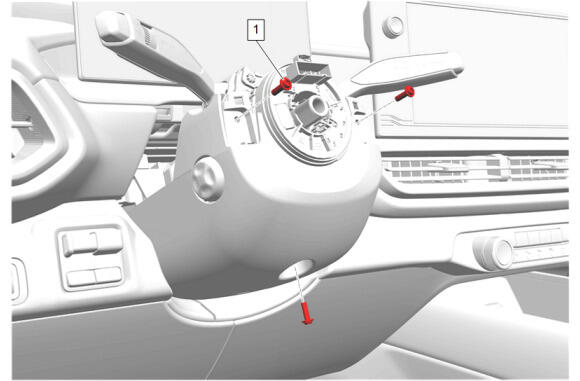

GM6302381Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Instrument Panel Steering Column Lower Trim Cover

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Steering Column Lower Trim Cover Bolt [3x] - - 3.3 N.m (29 lb in) Instrument Panel Steering Column Lower Trim Cover Replacement

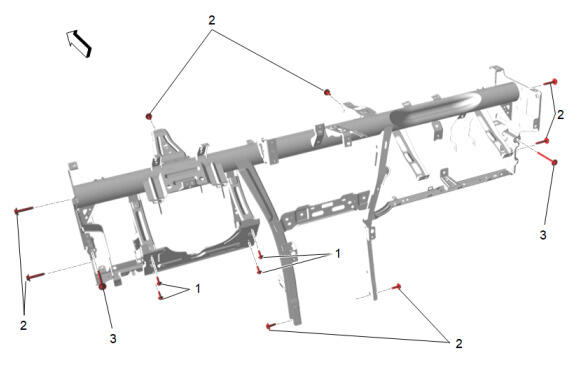

GM6308461Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Instrument Panel Tie Bar

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Knee Bolster Deflector Bolt [4x] - - 9 N.m (80 lb in) Instrument Panel Tie Bar Replacement
2 Instrument Panel Tie Bar Bolt [8x] - - 22 N.m (16 lb ft) Instrument Panel Tie Bar Replacement
3 Instrument Panel Tie Bar Brace Bolt [2x] - - 9 N.m (80 lb in) Instrument Panel Tie Bar Replacement

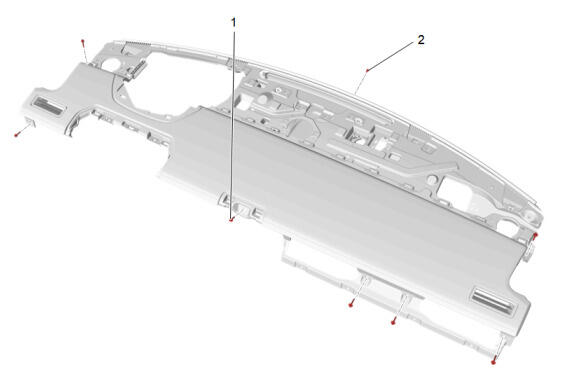

GM6561396Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Instrument Panel Upper Trim Panel

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Upper Trim Panel Bolt [7x] - - 2.5 N.m (22 lb in) Instrument Panel Upper Trim Panel Removal and Installation
2 Windshield Defroster Outlet Duct Bolt - - 1.5 N.m (13 lb in) Instrument Panel Upper Trim Panel Removal and Installation

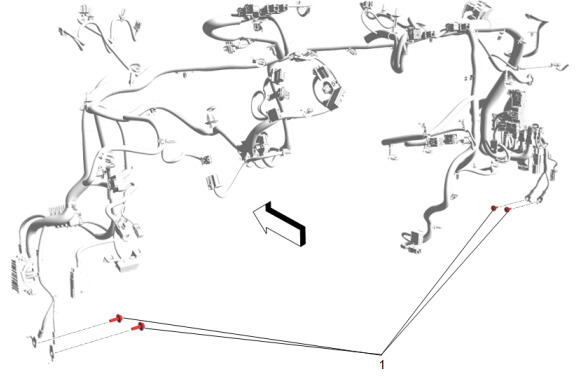

GM6307874Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Instrument Panel Wiring Harness

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Wiring Harness Ground Bolt [4x] - - 9 N.m (80 lb in) Instrument Panel Tie Bar Replacement
