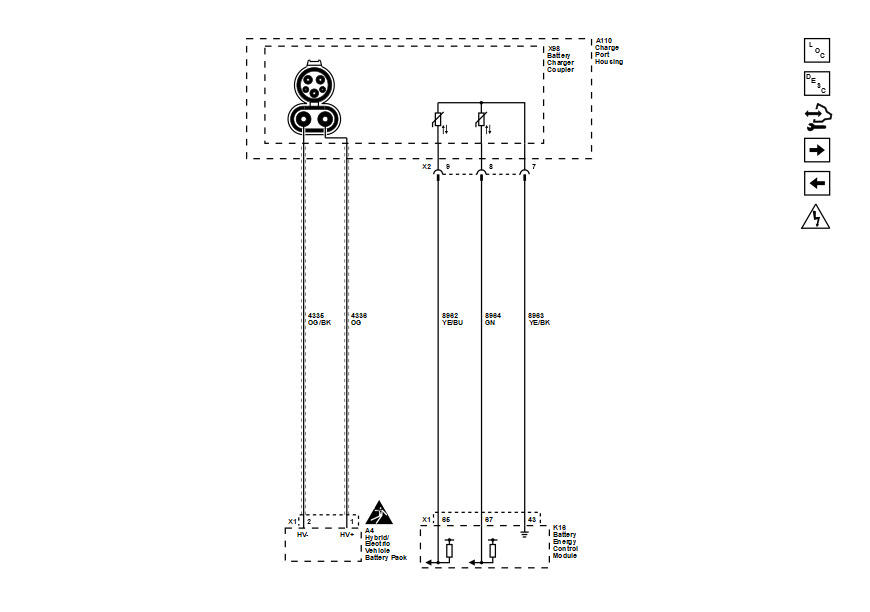

Home >> GMC >> 2024 >> Sierra EV >> Repair and Diagnosis >> Electrical >> Charging Systems >> Plug-In Charging >> Schematic Wiring Diagrams >> Plug-In Charging Wiring Schematics >> DC Power - Battery Charging
