Removal Procedure

  1. Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation

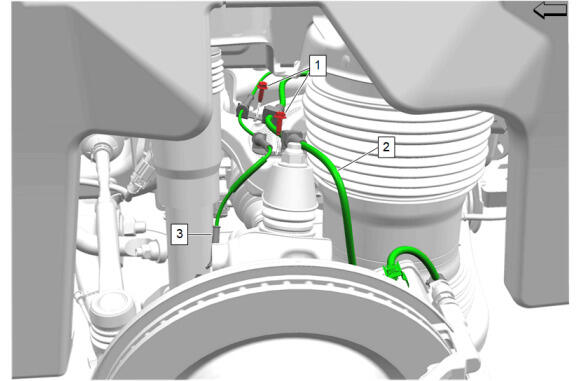

  2. GM6478338Courtesy of GENERAL MOTORS COMPANY

    Rear Wheel Speed Sensor Bracket Bolt (1) @Rear Suspension Upper Control Arm - Remove [2x]

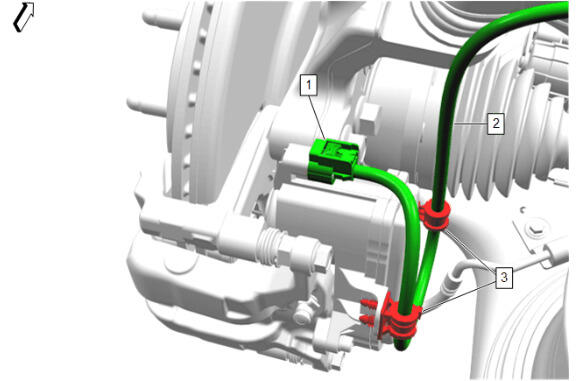

  3. GM6478339Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector and release the wiring harness retainers as necessary. (1, 3)

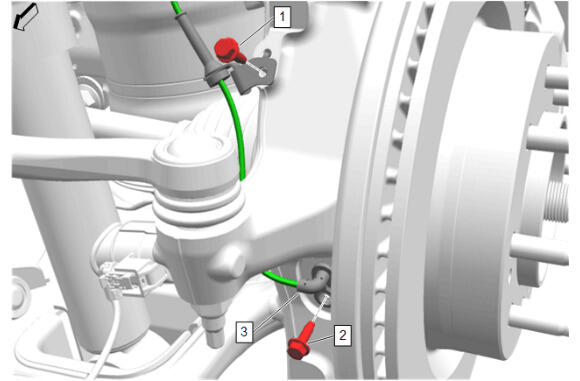

  4. GM6478340Courtesy of GENERAL MOTORS COMPANY

    Rear Wheel Speed Sensor Bracket Bolt (1) @Rear Suspension Knuckle - Remove

  5. Rear Wheel Speed Sensor Bolt (2) @Rear Suspension Knuckle - Remove
  6. Remove underbody panels as necessary. Underbody Panel Component Locator

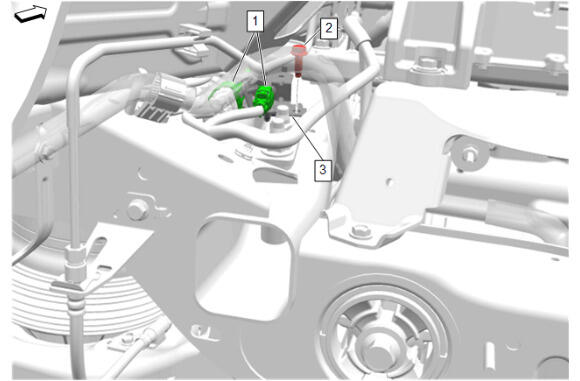

  7. GM6478343Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connectors. (1)

  8. Rear Wheel Speed Sensor Bracket Bolt (2) @Rear Suspension Cradle - Remove

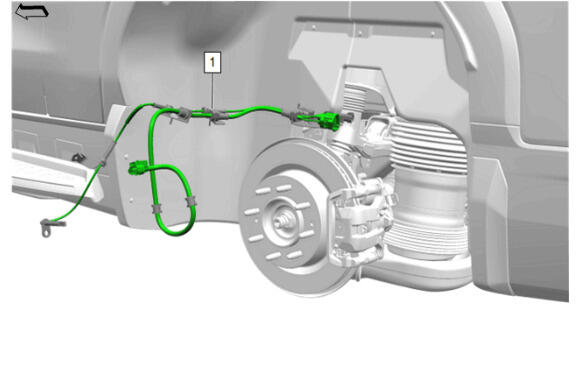

  9. GM6478344Courtesy of GENERAL MOTORS COMPANY

    Rear Wheel Speed Sensor (1) - Remove
