Installation Procedure

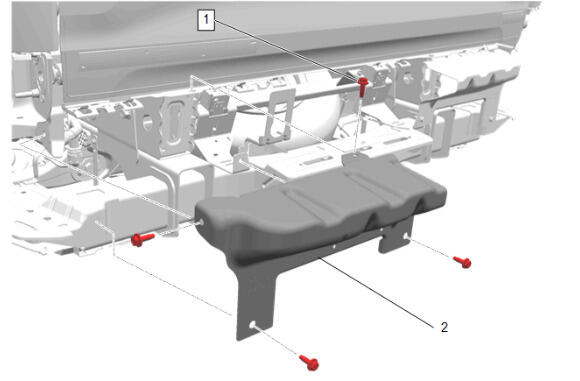

With the aid of an assistant, install the trailer hitch platform (2).
- Trailer Hitch Platform Bolt (1) - Install and tighten [4x] - Fastener Specifications
Trailer Hitch Platform Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Position the wiring harness.

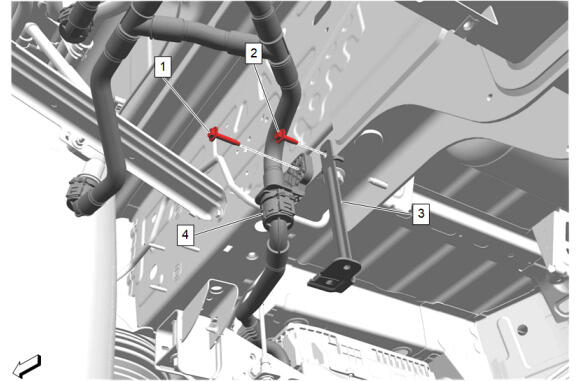

Drive Motor Battery Charger Receptacle Coolant Inlet Secondary Hose (4) - Install
- Drive Motor Battery Charger Receptacle Coolant Inlet Secondary Hose Clip Bolt (1) - Install and tighten - Fastener Specifications

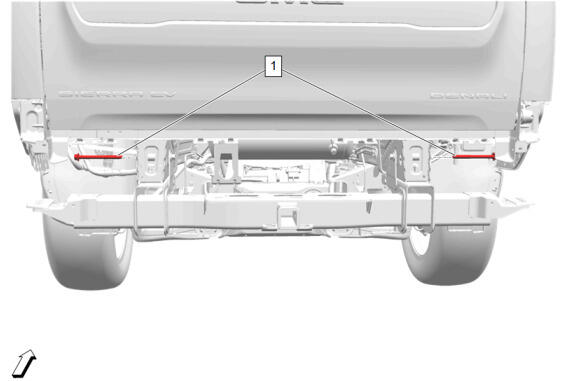

- Underbody Rear Air Outer Deflector Bracket - Left Side and Right Side (3) - Install [2x]
- Underbody Rear Air Outer Deflector Bracket Bolt - Left Side and Right Side (2) - Install and tighten [2x] - Fastener Specifications

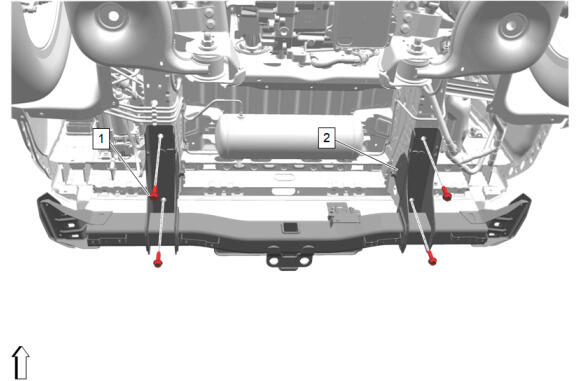

Rear Bumper Impact Bar Bracket - Left Side and Right Side (2) - Install [2x]
- Rear Bumper Lower Fascia Bracket Bolt - Left Side and Right Side (1) - Install and tighten [8x] - Fastener Specifications
With the aid of an assistant, install the fascia. (1) Rear Bumper Fascia Removal and Installation
- Install underbody panels as necessary. Underbody Panel Component Locator
CAUTION:
Refer to Fastener Caution .
