Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

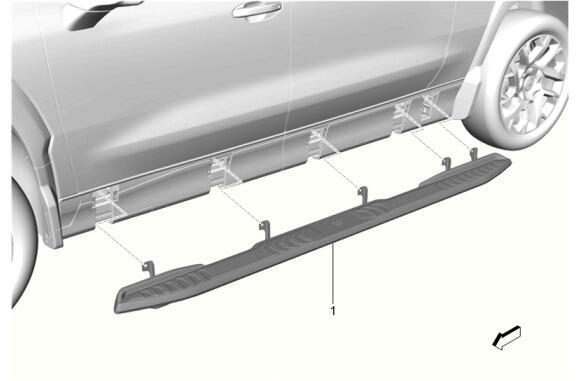

With the aid of an assistant, install the assist step (1).
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution

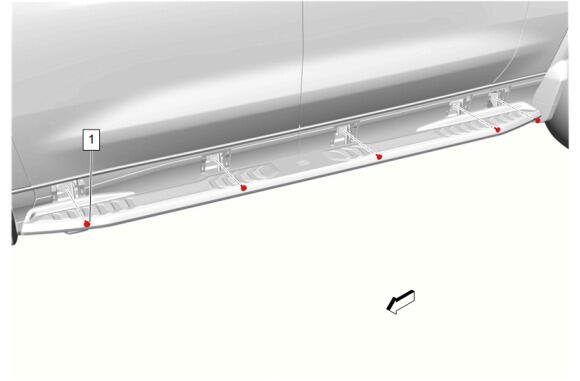

Assist Step Bolt (1) - Install and tighten [5x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

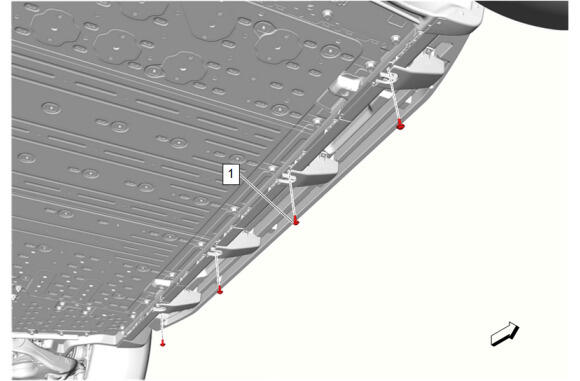

Assist Step Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

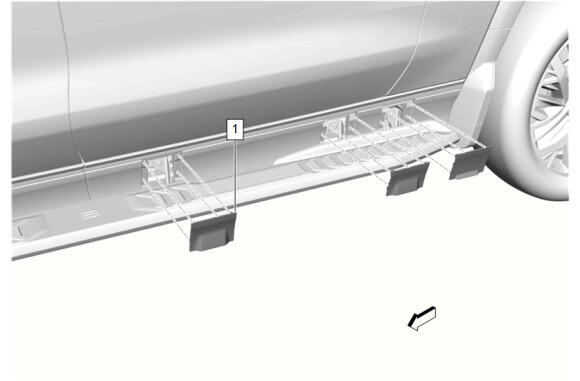

Rocker Panel Rear Molding Access Hole Cover (1) - Install [3x]
Courtesy of GENERAL MOTORS COMPANY

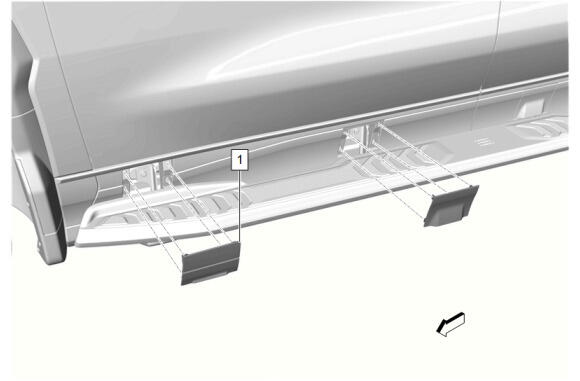

Rocker Panel Front Molding Access Hole Cover (1) - Install [2x]
