Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

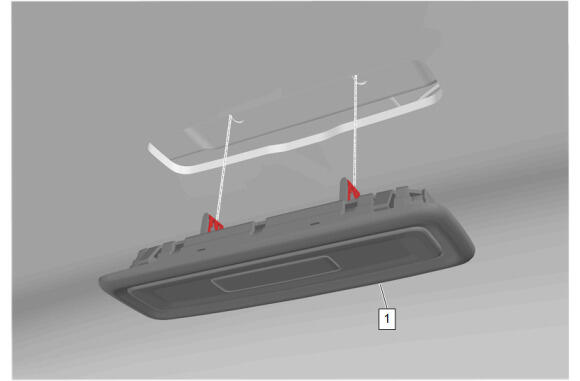

Using a flat-bladed plastic trim tool, remove the rear seat position center reading and courtesy lamp (1).
Disconnect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

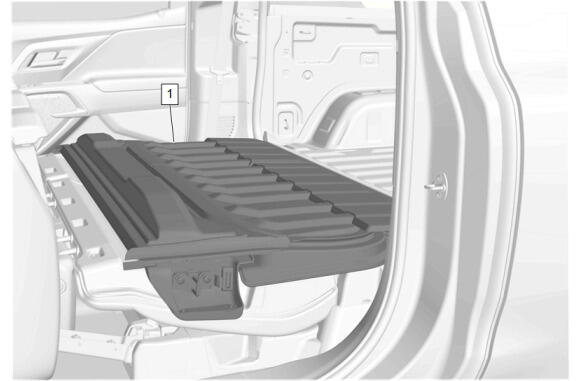

Fold the left and right rear seat cushions (1) down.
Courtesy of GENERAL MOTORS COMPANY

Fold the left and right rear seat back cushions (1) down.
Courtesy of GENERAL MOTORS COMPANY

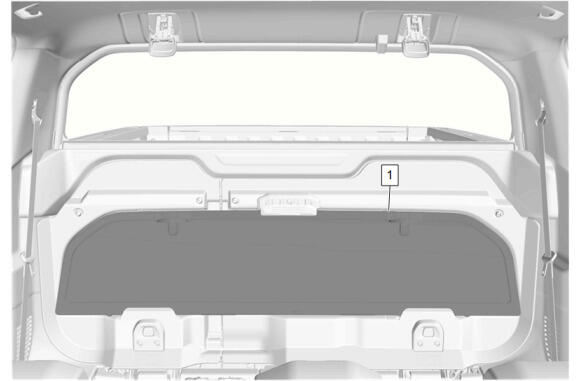

Remove the rear window (1) and place it in the designated storage cavity of the midgate.
Courtesy of GENERAL MOTORS COMPANY

Open the midgate (1).
Courtesy of GENERAL MOTORS COMPANY

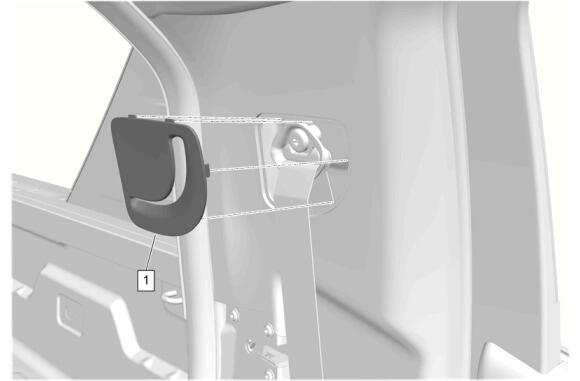

Using a suitable plastic trim tool, release the retaining tabs.
Rear Seat Belt Opening Bezel- Left Side(1) - Reposition
Courtesy of GENERAL MOTORS COMPANY

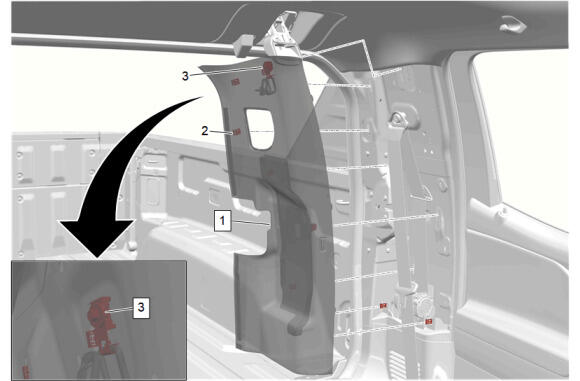

Pull the body side rear window garnish molding (1) toward the inside of the vehicle to disengage the retaining clips (2) and the tether from the body.
Access the body lock pillar upper trim panel bolt (3) on the backside of the body side rear window garnish molding (1).
Body Lock Pillar Upper Trim Panel Bolt- Left Side(3) - Remove

NOTE:

The body side rear window garnish molding does not need to be fully removed from the vehicle.

Body Side Rear Window Garnish Molding- Left Side(1) - Reposition
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Using a suitable plastic trim tool, release the retaining tabs.
Rear Seat Belt Opening Bezel- Right Side(1) - Reposition
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Pull the body side rear window garnish molding (1) toward the inside of the vehicle to disengage the retaining clips (2) and the tether from the body.
Access the body lock pillar upper trim panel bolt (3) on the backside of the body side rear window garnish molding (1).
Body Lock Pillar Upper Trim Panel Bolt- Right Side(3) - Remove

NOTE:

The body side rear window garnish molding does not need to be fully removed from the vehicle.

Body Side Rear Window Garnish Molding- Right Side(1) - Reposition
Courtesy of GENERAL MOTORS COMPANY

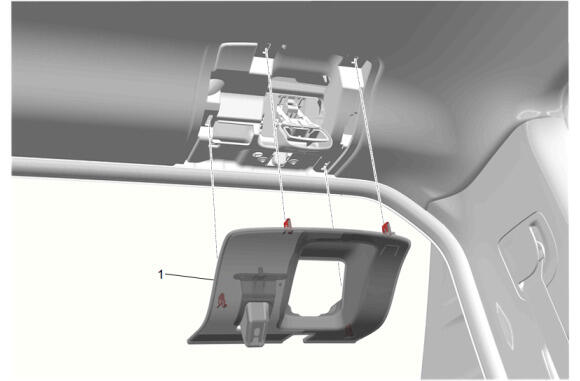

Open the latch for the rear window.
Using a flat-bladed plastic trim tool, release the retaining clips.
Headlining Trim Panel Retainer Plate- Left Side and Right Side(1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

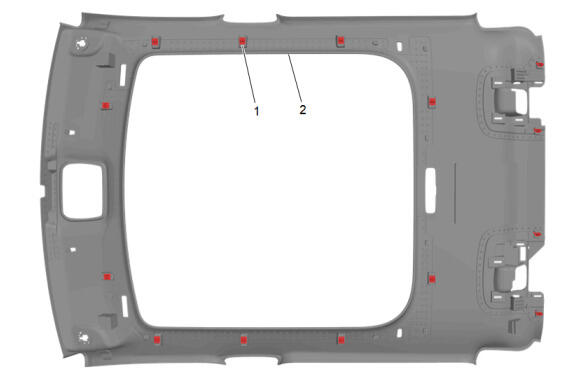

Lower the back portion of the headlining trim panel (2).
Courtesy of GENERAL MOTORS COMPANY

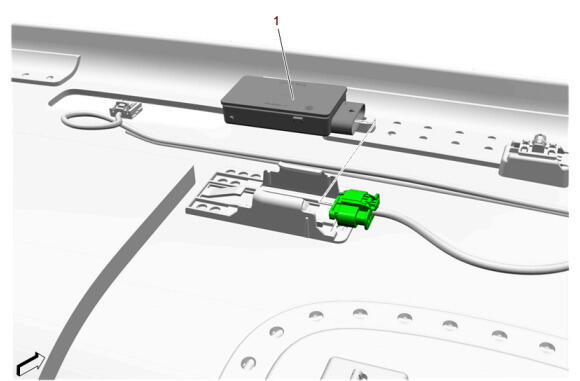

Release the retaining tabs.
UHF Low Energy Remote Control Access Sensor Transceiver(1) - Remove
Disconnect the electrical connector.
