Installation Procedure

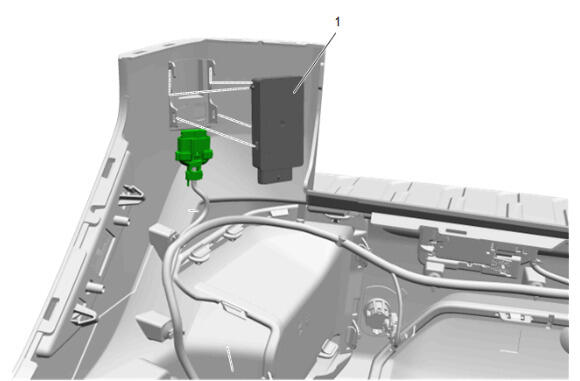

  1. GM6656127Courtesy of GENERAL MOTORS COMPANY

    UHF Low Energy Remote Control Access Sensor Transceiver(1) - Install

  2. Secure the retaining tabs.
  3. Connect the electrical connector.
  4. GM6530921Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, install the fascia.(1) - Rear Bumper Fascia Removal and Installation
