Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

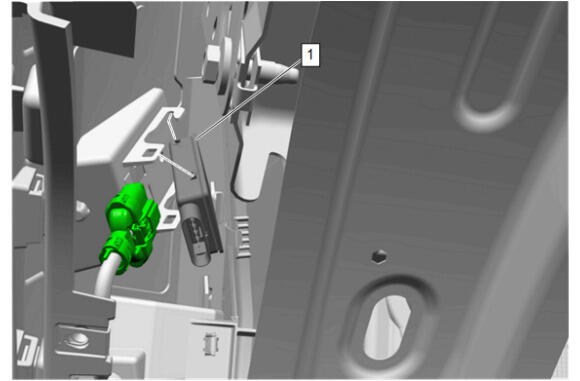

UHF Low Energy Remote Control Access Sensor Transceiver- Position 3(1) - Install
Ensure that the retaining tabs are fully secured.
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Rotate or maneuver the front wheelhouse front liner (1) as necessary and position it in place.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution

Front Wheelhouse Liner Bolt(1) - Install and tighten [5x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Wheelhouse Liner Retainer(2) - Install
Front Wheelhouse Liner Bolt(1) - Install and tighten [8x] - Fastener Specifications
Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
