Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

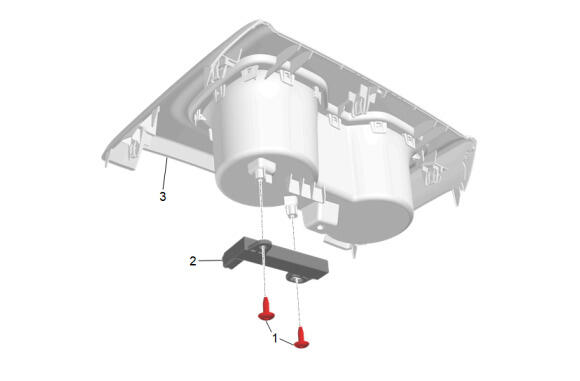

Install the low frequency console antenna (2) onto the front floor console rear cup holder (3).

CAUTION:

Refer to Fastener Caution .

Ignition Lock Key Transmitter Antenna Bracket Bolt(1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Front Floor Console Rear Cup Holder(1) - Install
