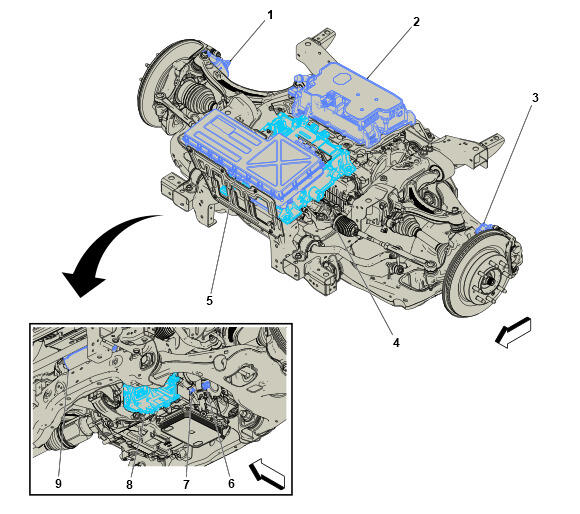

| 1. M104R Parking Brake Actuator - Right M104R Parking Brake Actuator - Right |
| 2. T1 DC/AC Converter Control Module T1 DC/AC Converter Control Module X1
, or T1 DC/AC Converter Control Module X2
, or T1 DC/AC Converter Control Module X3 |
| 3. M104L Parking Brake Actuator - Left M104L Parking Brake Actuator - Left |
| 4. T18 Battery Charger T18 Battery Charger X1
, or T18 Battery Charger X2
, or T18 Battery Charger X3
, or T18 Battery Charger X4
, or T18 Battery Charger X5
, or T18 Battery Charger X6
, or T18 Battery Charger X7
, or T18 Battery Charger X8 |
| 5. K57B Battery Charger Control Module 2 |
| 6. B228B Drive Motor 2 Position Sensor B228B Drive Motor 2 Position Sensor |
| 7. B389R Drive Unit Fluid Temperature Sensor - Rear B389R Drive Unit Fluid Temperature Sensor - Rear |
| 8. K107B Drive Motor Control Module 2 K107B Drive Motor Control Module 2 X1
, or K107B Drive Motor Control Module 2 X2 |
| 9. K92 Active Rear Steering Motor Control Module K92 Power Steering Control Module - Rear X1
, or K92 Power Steering Control Module - Rear X2 |
