Fastener Specifications

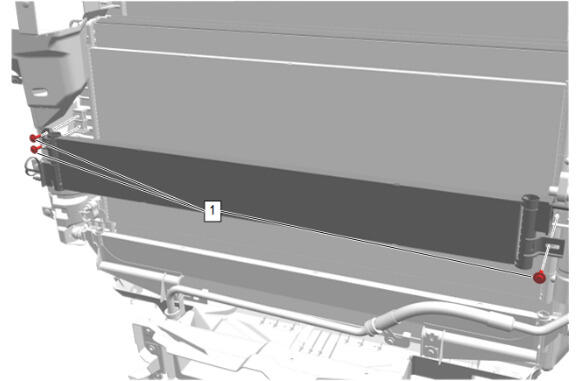

GM6288874Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Auxiliary Cooler (L5P)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Auxiliary Cooler Bolt
[3x]		 - - 9 N.m (80 lb in) Transmission Fluid Auxiliary Cooler Replacement (L8T) , or Transmission Fluid Auxiliary Cooler Replacement (L5P)

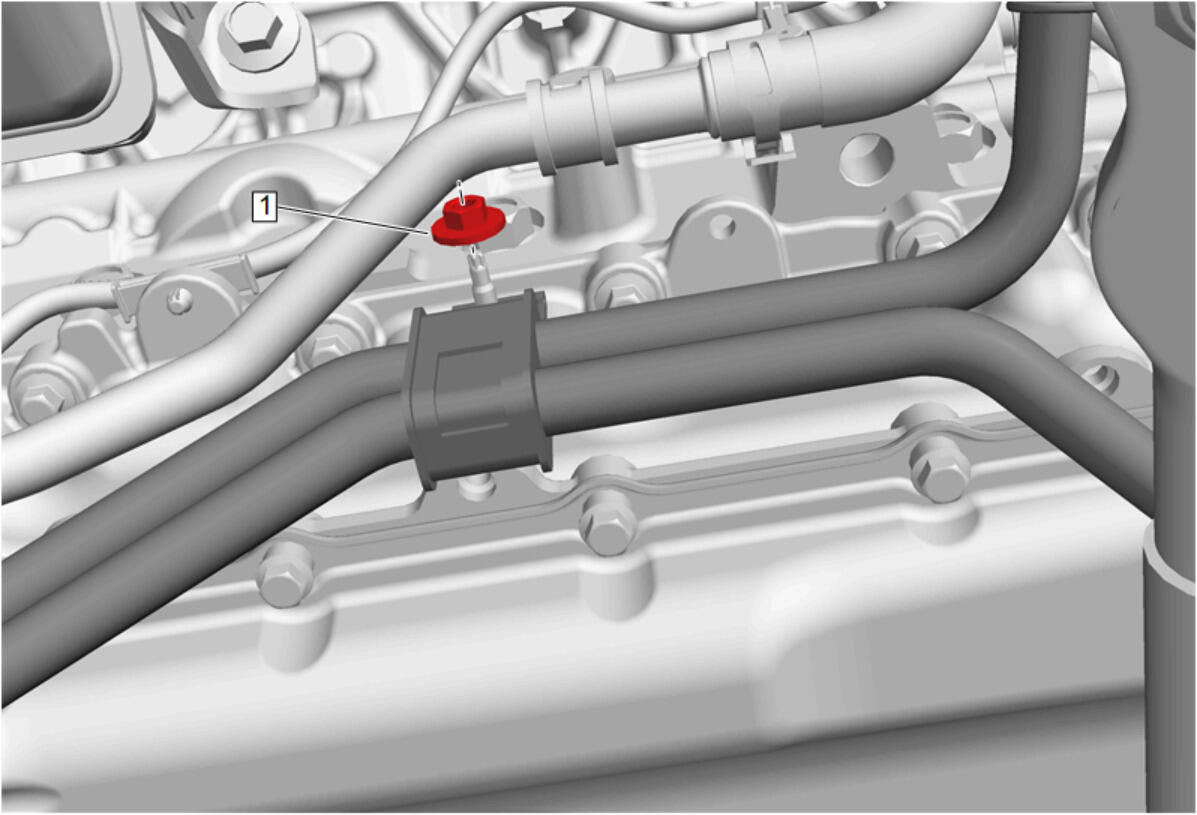

GM5300630Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Cooler Inlet and Outlet Pipe @ Engine (L5P)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Pipe Nut - - 9 N.m (80 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L8T) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L8T & ULV) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L5P) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L5P & ULV)

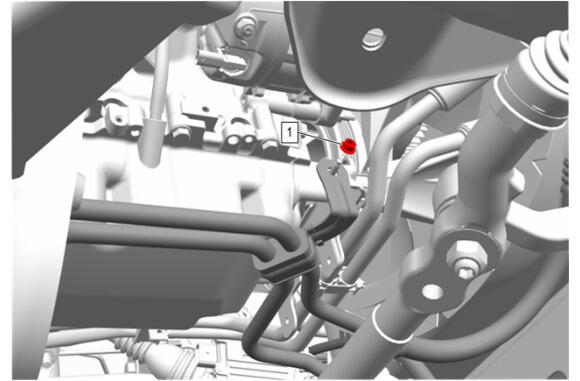

GM6276576Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Cooler Inlet and Outlet Pipe @ Engine (L8T)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Auxiliary Cooler Pipe Bracket Nut - - 9 N.m (80 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L8T) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L8T & ULV) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L5P) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L5P & ULV)

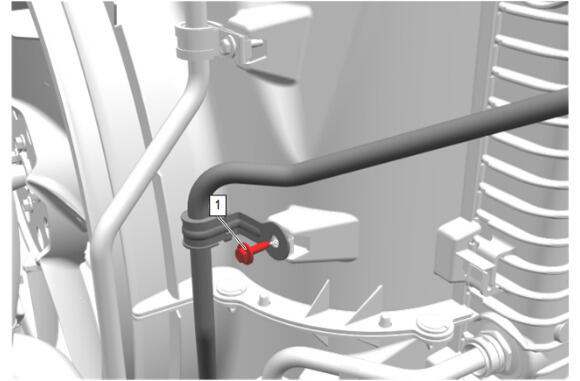

GM6276064Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Cooler Inlet and Outlet Pipe @ Fan Shroud (L8T)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Inlet and Outlet Pipe Bolt - - 9 N.m (80 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L8T) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L8T & ULV) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L5P) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L5P & ULV)

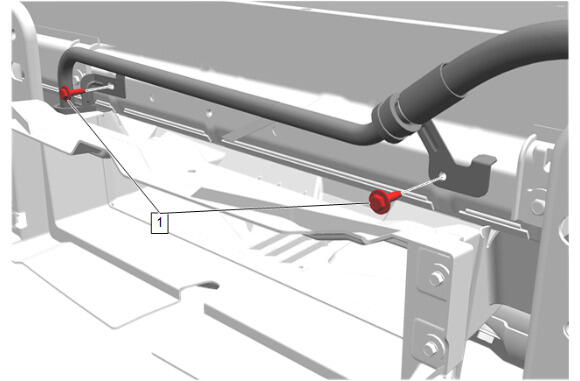

GM5914768Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Cooler Inlet and Outlet Pipe @ Radiator Air Front Lower Baffle (L5P)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Pipe Bolt
[2x]		 - - 9 N.m (80 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L8T) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L8T & ULV) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L5P) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L5P & ULV)

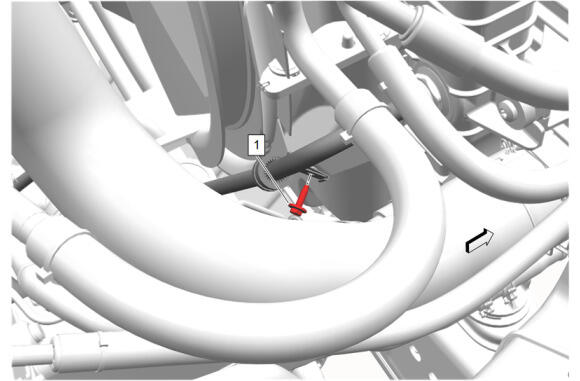

GM5779117Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Cooler Inlet and Outlet Pipe @ Radiator (L5P)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Inlet and Outlet Pipe Bolt - - 9 N.m (80 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L8T) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L8T & ULV) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L5P) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L5P & ULV)

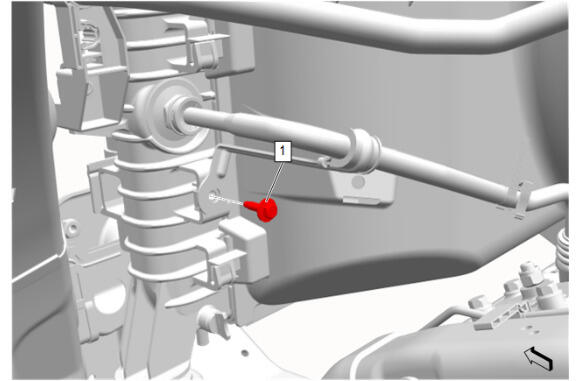

GM6281977Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Cooler Inlet and Outlet Pipe @ Radiator (L8T)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Inlet and Outlet Pipe Bolt - - 9 N.m (80 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L8T) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L8T & ULV) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L5P) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L5P & ULV)

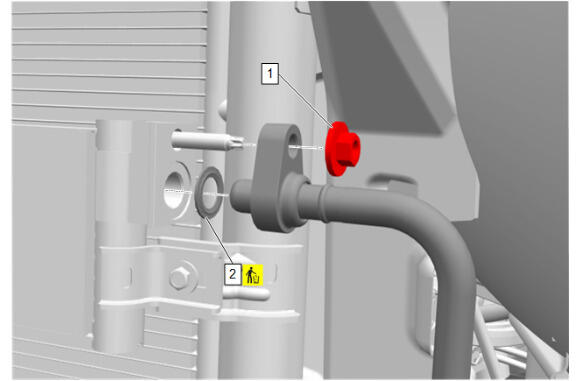

GM6288290Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Cooler Inlet and Outlet Pipe @ Transmission Fluid Auxiliary Cooler (L5P)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Pipe Nut - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L8T) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L8T & ULV) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L5P) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L5P & ULV)
2 Transmission Fluid Cooler Pipe Fitting Seal Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L8T) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L8T & ULV) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L5P) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L5P & ULV)

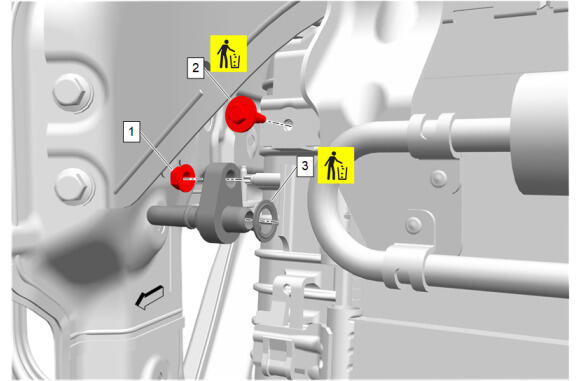

GM5777885Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Cooler Inlet and Outlet Pipe @ Transmission Fluid Auxiliary Cooler (L8T)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Pipe Nut - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L8T) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L8T & ULV) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L5P) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L5P & ULV)
2 Transmission Fluid Auxiliary Cooler Bolt Yes Yes 7 N.m (62 lb in) Transmission Fluid Auxiliary Cooler Replacement (L8T) , or Transmission Fluid Auxiliary Cooler Replacement (L5P)
3 Transmission Fluid Cooler Pipe Fitting Seal Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L8T) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L8T & ULV) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L5P) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L5P & ULV)

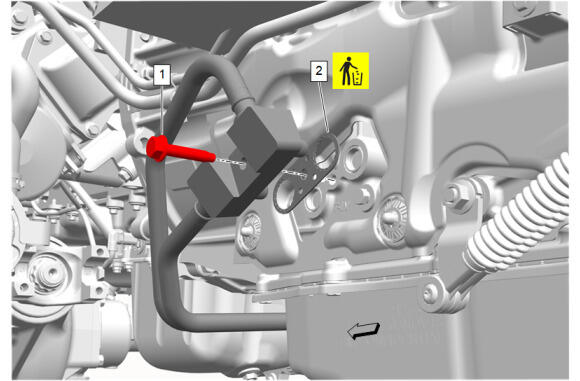

GM5779049Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Cooler Inlet and Outlet Pipe @ Transmission (L5P & L8T)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Pipe Bolt - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L8T) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L8T & ULV) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L5P) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L5P & ULV)
2 Transmission Fluid Cooler Pipe Fitting Seal Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L8T) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L8T & ULV) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L5P) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L5P & ULV)

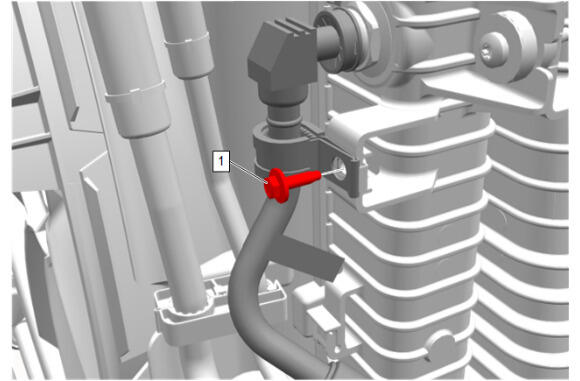

GM6288978Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Cooler Hose/Pipe (L5P)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Pipe Bolt - - 9 N.m (80 lb in) Transmission Fluid Cooler Hose/Pipe Replacement (L8T) , or Transmission Fluid Cooler Hose/Pipe Replacement (L5P)

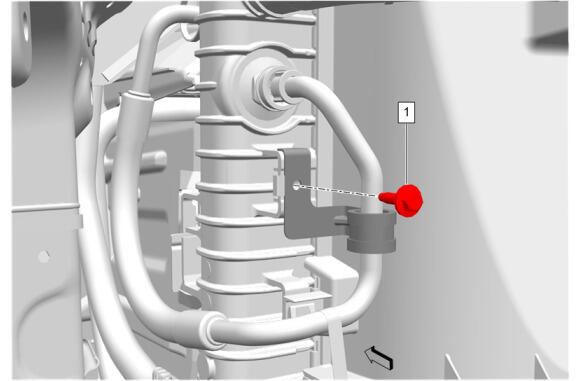

GM5778419Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Cooler Hose/Pipe (L8T)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Pipe Bolt - - 9 N.m (80 lb in) Transmission Fluid Cooler Hose/Pipe Replacement (L8T) , or Transmission Fluid Cooler Hose/Pipe Replacement (L5P)

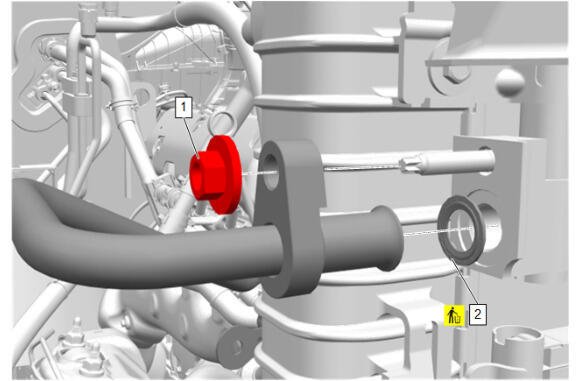

GM6288989Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Cooler Hose/Pipe @ Transmission Fluid Auxiliary Cooler (L8T)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Pipe Nut - - 22 N.m (16 lb ft) Transmission Fluid Cooler Hose/Pipe Replacement (L8T) , or Transmission Fluid Cooler Hose/Pipe Replacement (L5P)
2 Transmission Fluid Cooler Pipe Fitting Seal Yes - - Transmission Fluid Cooler Hose/Pipe Replacement (L8T) , or Transmission Fluid Cooler Hose/Pipe Replacement (L5P)

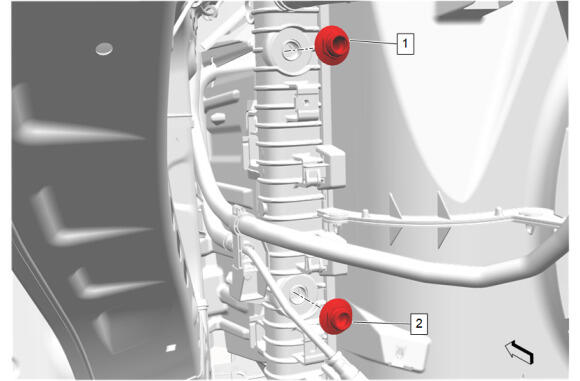

GM5778383Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Cooler Pipe Connectors (L8T)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Pipe Connector - - 24 N.m (18 lb ft) Transmission Fluid Cooler Pipe Connector Replacement - Radiator Upper (L8T) , or Transmission Fluid Cooler Pipe Connector Replacement - Radiator Upper (L5P)
2 Transmission Fluid Cooler Pipe Connector - - 24 N.m (18 lb ft) Transmission Fluid Cooler Pipe Connector Replacement - Radiator Lower (L5P) , or Transmission Fluid Cooler Pipe Connector Replacement - Radiator Lower (L8T)

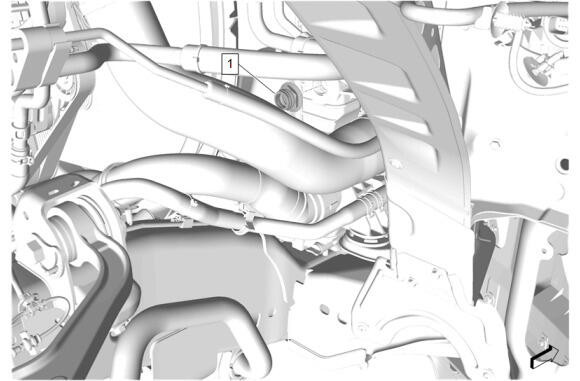

GM5671301Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Cooler Pipe Connector Lower (L5P)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Pipe Connector - - 24 N.m (18 lb ft) Transmission Fluid Cooler Pipe Connector Replacement - Radiator Lower (L5P) , or Transmission Fluid Cooler Pipe Connector Replacement - Radiator Lower (L8T)

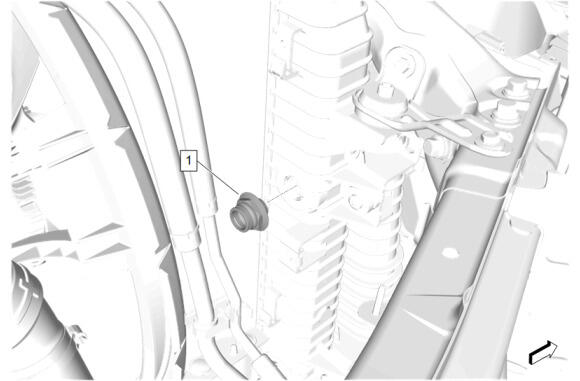

GM5671304Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Cooler Pipe Connector Upper (L5P)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Pipe Connector - - 24 N.m (18 lb ft) Transmission Fluid Cooler Pipe Connector Replacement - Radiator Upper (L8T) , or Transmission Fluid Cooler Pipe Connector Replacement - Radiator Upper (L5P)
