Installation Procedure

  1. GM5630539Courtesy of GENERAL MOTORS COMPANY

    Ride Control Switch (1) - Install

  2. Secure the retaining tabs.
  3. GM5000816Courtesy of GENERAL MOTORS COMPANY

    Connect all electrical connectors.

  4. Instrument Panel Trim Pad (2) - Install
    5. CAUTION:

    Refer to Fastener Caution .

  5. Instrument Panel Trim Pad Bolt (1) - Install and tighten [2x] - Fastener Specifications
  6. GM5000730Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fuse Block Access Hole Cover (1) - Install



  1. GM5902245Courtesy of GENERAL MOTORS COMPANY

    Ride Control Switch (1) - Install

  2. Secure the retaining tabs.
  3. GM5903583Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  4. Instrument Panel Switch Trim Plate (1) - Install
  5. GM5903580Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Switch Trim Plate Bolt (2) - Install and tighten [3x] - Fastener Specifications

  6. Instrument Panel Cluster Trim Plate (1) - Install
  7. GM5900953Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Line up flange around the front side door weatherstrip

    Instrument Panel Outer Trim Cover (2) - Install

    8. WARNING:

    When removing, handling or installing this component wear protective gloves. The sharp edges on the component may be very sharp and may cause injury.

  8. Instrument Panel Knee Bolster (1) - Install


  1. GM5902245Courtesy of GENERAL MOTORS COMPANY

    Ride Control Switch (1) - Install

  2. Secure the retaining tabs.
  3. GM5903583Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  4. Instrument Panel Switch Trim Plate (1) - Install

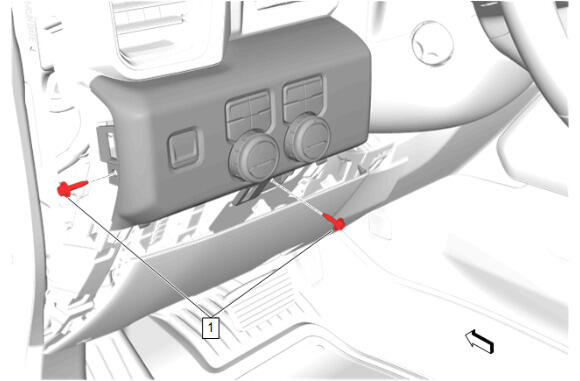

  5. GM5912970Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Switch Trim Plate Bolt (1) - Install and tighten [2x] - Fastener Specifications

  6. GM5900953Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Line up flange around the front side door weatherstrip

    Instrument Panel Outer Trim Cover (2) - Install

    7. WARNING:

    When removing, handling or installing this component wear protective gloves. The sharp edges on the component may be very sharp and may cause injury.

  8. Instrument Panel Knee Bolster (1) - Install
