Installation Procedure

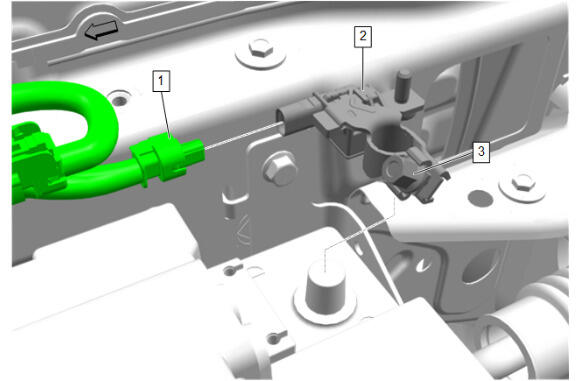

  1. GM6291341Courtesy of GENERAL MOTORS COMPANY

    Battery Monitor Module (2) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Battery Negative Post Clamp Nut (3) - Tighten - Fastener Specifications
  3. Connect the electrical connector.(1)

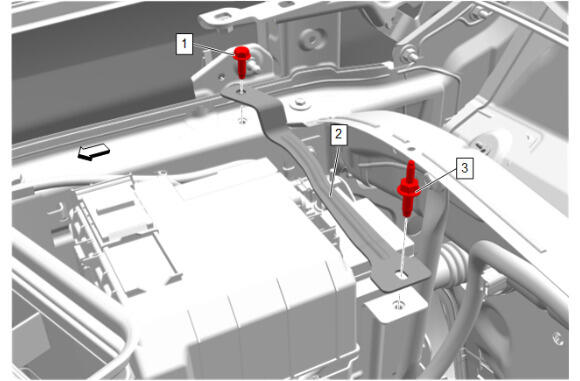

  4. GM6289621Courtesy of GENERAL MOTORS COMPANY

    Battery Hold Down Strap (2) - Install

  5. Battery Tray Stop Bolt (3) - Install and tighten - Fastener Specifications
  6. Battery Tray Bolt (1) - Install and tighten - Fastener Specifications

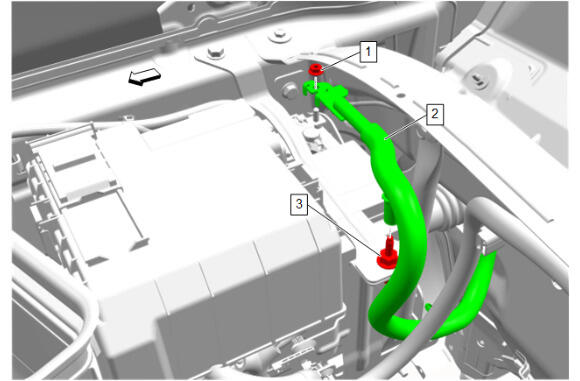

  7. GM6289587Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable Extension Cable (2) - Move into position

  8. Battery Negative Cable Extension Cable (2) @ Battery Tray Stop Bolt (3) - Engage
  9. Battery Negative Cable Nut (1) - Install and tighten - Fastener Specifications
