Fastener Specifications

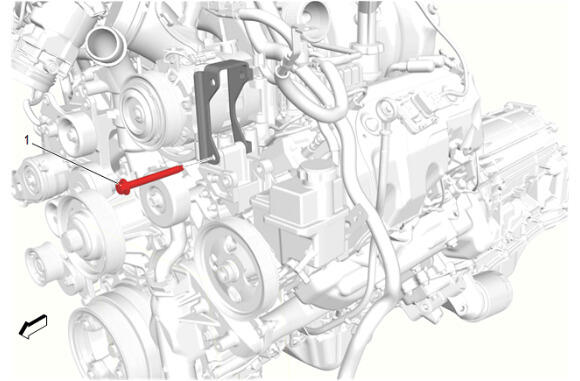

GM5782949Courtesy of GENERAL MOTORS COMPANY
Auxiliary Generator Bracket (L5P with KHF)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Generator Bracket Bolt - - 58 N.m (43 lb ft) Auxiliary Generator Bracket Replacement

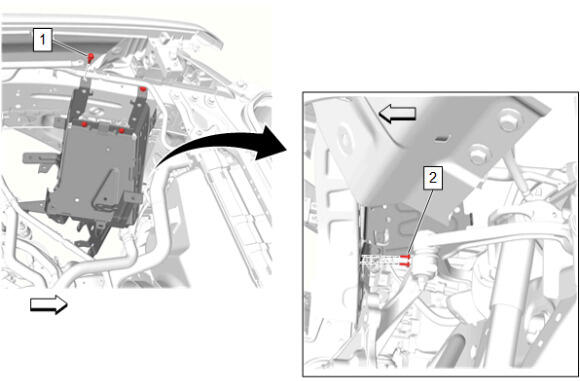

GM5779436Courtesy of GENERAL MOTORS COMPANY
Battery Auxiliary Tray

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Tray Bolt [4x] - - 22 N.m (16 lb ft) Battery Auxiliary Tray Replacement (K4Z) , or Battery Auxiliary Tray Replacement (- K4Z)
2 Battery Tray Support Bolt [2x] - - 9 N.m (80 lb in) Battery Auxiliary Tray Replacement (K4Z) , or Battery Auxiliary Tray Replacement (- K4Z)

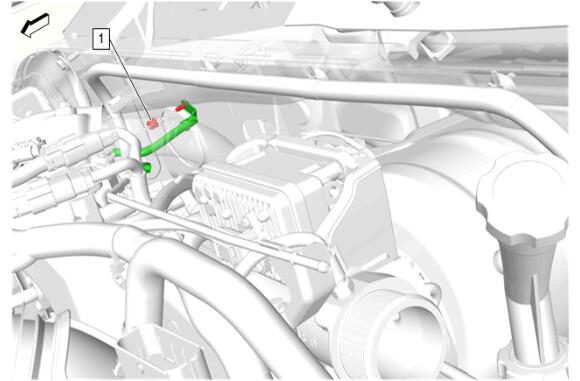

GM5778365Courtesy of GENERAL MOTORS COMPANY
Battery Negative Cable (K4Z)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Negative Cable Ground Nut - - 22 N.m (16 lb ft) Battery Negative Cable Replacement

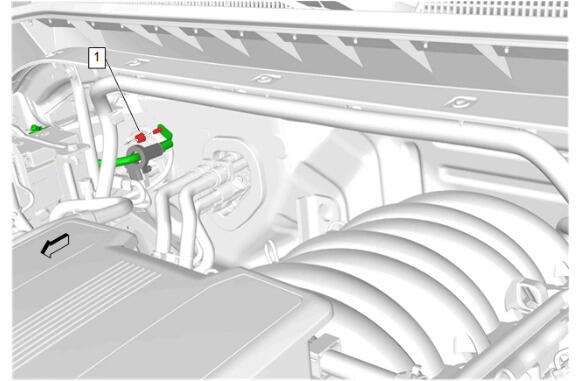

GM5778370Courtesy of GENERAL MOTORS COMPANY
Battery Negative Cable (without K4Z)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Negative Cable Ground Nut - - 22 N.m (16 lb ft) Battery Negative Cable Replacement

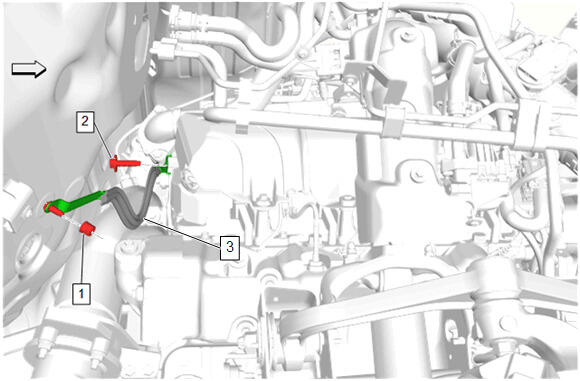

GM5779536Courtesy of GENERAL MOTORS COMPANY
Battery Negative Cable Extension Cable Strap (L5P)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Negative Cable Ground Nut - - 22 N.m (16 lb ft) Battery Negative Cable Extension Cable Strap Replacement (L8T) , or Battery Negative Cable Extension Cable Strap Replacement (L5P)
2 Battery Negative Cable Ground Stud - - 50 N.m (37 lb ft) Battery Negative Cable Extension Cable Strap Replacement (L8T) , or Battery Negative Cable Extension Cable Strap Replacement (L5P)

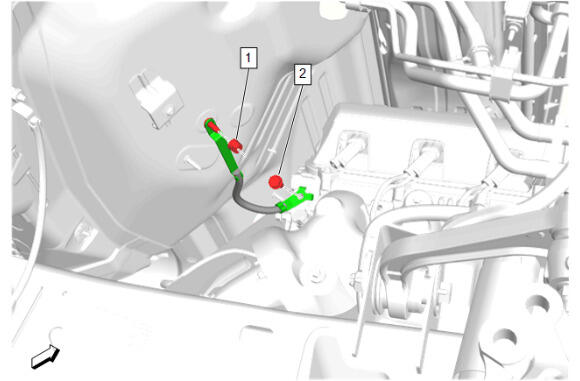

GM5779478Courtesy of GENERAL MOTORS COMPANY
Battery Negative Cable Extension Cable Strap (L8T)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Negative Cable Ground Nut - - 22 N.m (16 lb ft) Battery Negative Cable Extension Cable Strap Replacement (L8T) , or Battery Negative Cable Extension Cable Strap Replacement (L5P)
2 Battery Negative Cable Ground Stud - - 58 N.m (43 lb ft) Battery Negative Cable Extension Cable Strap Replacement (L8T) , or Battery Negative Cable Extension Cable Strap Replacement (L5P)

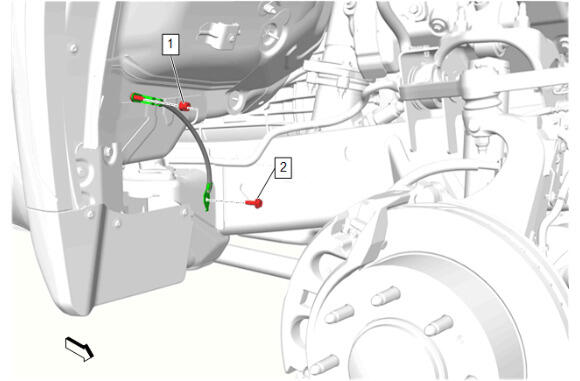

GM5807198Courtesy of GENERAL MOTORS COMPANY
Battery Positive and Negative Cable Strap

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Ground Nut [2x] - - 22 N.m (16 lb ft) Battery Positive and Negative Cable Strap Replacement
2 Battery Cable Terminal Bolt - - 22 N.m (16 lb ft) Battery Positive and Negative Cable Strap Replacement

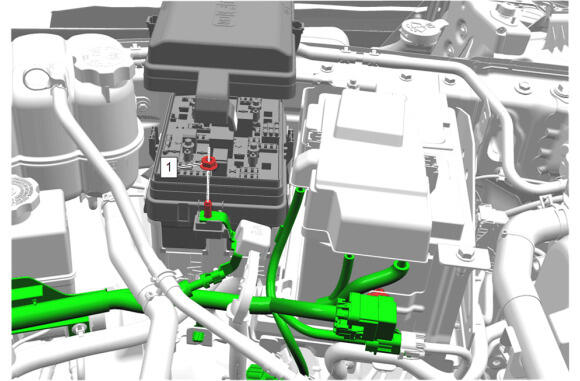

GM6309629Courtesy of GENERAL MOTORS COMPANY
Battery Positive Cable Nut

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Positive Cable Nut - - 15 N.m (11 lb ft) Battery Positive Cable Replacement (L5P) , or Battery Positive Cable Replacement (L8T - K4Z) , or Battery Positive Cable Replacement (L8T & K4Z)

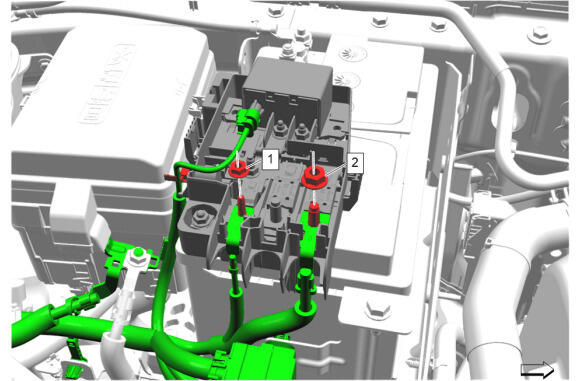

GM6309113Courtesy of GENERAL MOTORS COMPANY
Battery Positive Cable Nut

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Positive Cable Nut - - 6 N.m (53 lb in) Battery Positive Cable Replacement (L5P) , or Battery Positive Cable Replacement (L8T - K4Z) , or Battery Positive Cable Replacement (L8T & K4Z)
2 Battery Positive Cable Nut - - 15 N.m (11 lb ft) Battery Positive Cable Replacement (L5P) , or Battery Positive Cable Replacement (L8T - K4Z) , or Battery Positive Cable Replacement (L8T & K4Z)

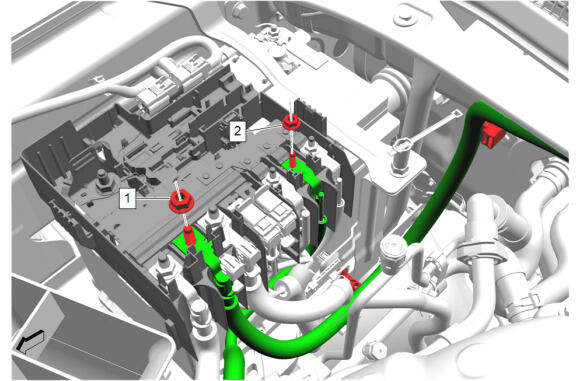

GM6307298Courtesy of GENERAL MOTORS COMPANY
Battery Positive Cable Nut

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Positive Cable Nut - - 15 N.m (11 lb ft) Battery Positive Cable Replacement (L5P) , or Battery Positive Cable Replacement (L8T - K4Z) , or Battery Positive Cable Replacement (L8T & K4Z)
2 Battery Positive Cable Nut - - 6 N.m (53 lb in) Battery Positive Cable Replacement (L5P) , or Battery Positive Cable Replacement (L8T - K4Z) , or Battery Positive Cable Replacement (L8T & K4Z)

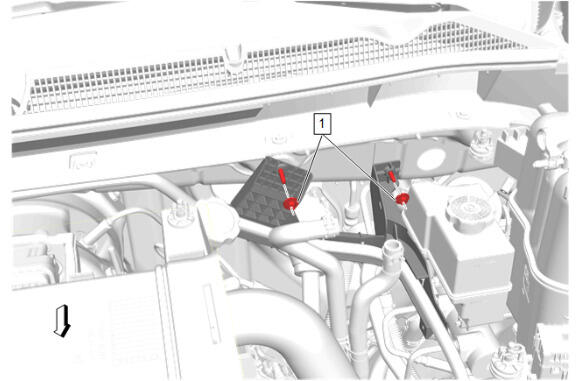

GM5780051Courtesy of GENERAL MOTORS COMPANY
Battery Positive Cable Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Positive Cable Nut [2x] - - 9 N.m (80 lb in) Battery Positive Cable Replacement (L5P) , or Battery Positive Cable Replacement (L8T - K4Z) , or Battery Positive Cable Replacement (L8T & K4Z)

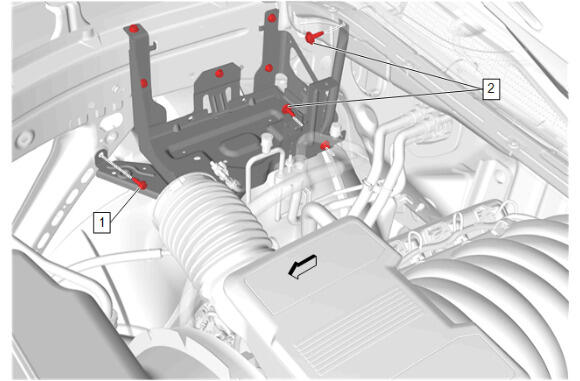

GM5778582Courtesy of GENERAL MOTORS COMPANY
Battery Tray

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Tray Bolt [6x] - - 22 N.m (16 lb ft) Battery Tray Replacement (L5P) , or Battery Tray Replacement (L8T)
2 Battery Tray Bolt [2x] - - 22 N.m (16 lb ft) Battery Tray Replacement (L5P) , or Battery Tray Replacement (L8T)

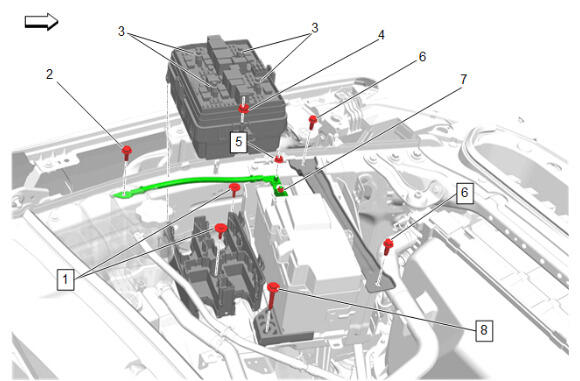

GM5779083Courtesy of GENERAL MOTORS COMPANY
Engine Compartment - Left Side (K4Z)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Engine Wiring Harness Fuse Block Bracket Bolt [2x] - - 9 N.m (80 lb in) Engine Wiring Harness Fuse Block Bracket Replacement
2 Battery Negative Cable Ground Bolt - - 22 N.m (16 lb ft) Auxiliary Battery Negative Cable Replacement
3 Engine Wiring Harness Junction Block Bolt [4x] - - 6 N.m (53 lb in) Engine Wiring Harness Junction Block Replacement
4 Body Ground Stud Nut - - 15 N.m (11 lb ft) Engine Wiring Harness Junction Block Replacement
5 Body Ground Stud Nut - - 15 N.m (11 lb ft) Auxiliary Battery Negative Cable Replacement
6 Battery Hold Down Strap Bolt [2x] - - 22 N.m (16 lb ft) Auxiliary Battery Replacement
7 Battery Post Negative Cable Clamp Nut - - 5 N.m (44 lb in) Battery Negative Cable Disconnection and Connection (- K4Z) , or Battery Negative Cable Disconnection and Connection (K4Z)
8 Battery Hold Down Retainer Bolt - - 22 N.m (16 lb ft) Auxiliary Battery Replacement

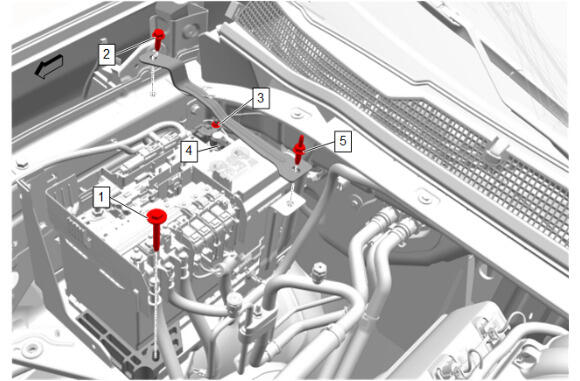

GM6294493Courtesy of GENERAL MOTORS COMPANY
Engine Compartment - Right Side

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Hold Down Retainer Bolt - - 22 N.m (16 lb ft) Battery Replacement
2 Battery Tray Bolt - - 22 N.m (16 lb ft) Battery Replacement
3 Battery Negative Cable Nut - - 9 N.m (80 lb in) Battery Negative Cable Disconnection and Connection (- K4Z) , or Battery Negative Cable Disconnection and Connection (K4Z)
4 Battery Negative Post Clamp Nut - - 5 N.m (44 lb in) Battery Monitor Module Replacement
5 Battery Tray Stop Bolt - - 22 N.m (16 lb ft) Battery Replacement
GM5780080Courtesy of GENERAL MOTORS COMPANY

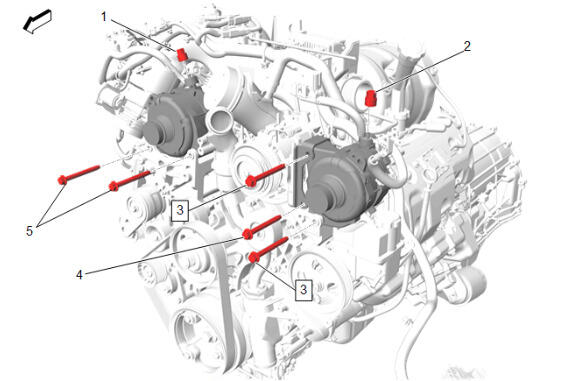

Engine - Front (L5P)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Positive Cable Nut - - 14 N.m (124 lb in) Generator Replacement (L5P & KHF) , or Generator Replacement (L5P - KHF) , or Generator Replacement (L8T & KHF) , or Generator Replacement (L8T - KHF)
2 Battery Positive Cable Nut (KHF) - - 14 N.m (124 lb in) Auxiliary Generator Replacement (L5P) , or Auxiliary Generator Replacement (L8T)
3 Generator Bolt [2x] (KHF) - - 58 N.m (43 lb ft) Auxiliary Generator Replacement (L5P) , or Auxiliary Generator Replacement (L8T)
4 Generator Bracket Bolt (KHF) - - 58 N.m (43 lb ft) Generator Bracket Replacement (L5P & KHF) , or Generator Bracket Replacement (L5P - KHF)
5 Generator Bolt [2x] - - 58 N.m (43 lb ft) Generator Replacement (L5P & KHF) , or Generator Replacement (L5P - KHF) , or Generator Replacement (L8T & KHF) , or Generator Replacement (L8T - KHF)

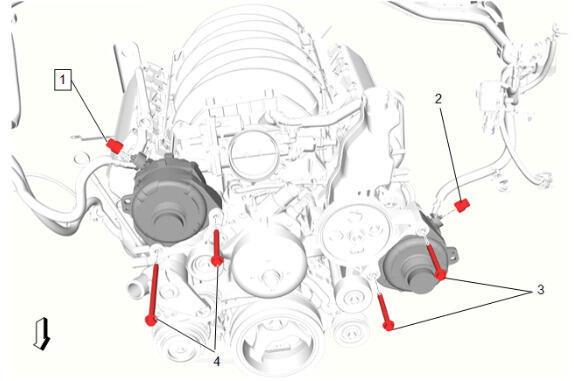

GM5783218Courtesy of GENERAL MOTORS COMPANY
Engine - Front (L8T)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Positive Cable Nut - - 14 N.m (124 lb in) Generator Replacement (L5P & KHF) , or Generator Replacement (L5P - KHF) , or Generator Replacement (L8T & KHF) , or Generator Replacement (L8T - KHF)
2 Battery Positive Cable Nut (KHF) - - 14 N.m (124 lb in) Auxiliary Generator Replacement (L5P) , or Auxiliary Generator Replacement (L8T)
3 Generator Bolt [2x] (KHF) - - 58 N.m (43 lb ft) Auxiliary Generator Replacement (L5P) , or Auxiliary Generator Replacement (L8T)
4 Generator Bolt [2x] - - 58 N.m (43 lb ft) Generator Replacement (L5P & KHF) , or Generator Replacement (L5P - KHF) , or Generator Replacement (L8T & KHF) , or Generator Replacement (L8T - KHF)

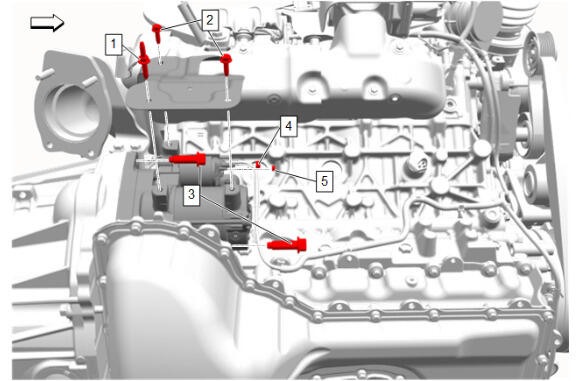

GM6318120Courtesy of GENERAL MOTORS COMPANY
Engine - Right Side (L5P)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Starter Stud - - 9 N.m (80 lb in) Starter Heat Shield Replacement (L8T) , or Starter Heat Shield Replacement (L5P & ULV) , or Starter Heat Shield Replacement (L5P)
2 Starter Heat Shield Bolt [2x] - - 9 N.m (80 lb in) Starter Heat Shield Replacement (L8T) , or Starter Heat Shield Replacement (L5P & ULV) , or Starter Heat Shield Replacement (L5P)
3 Starter Bolt [2x] - - 58 N.m (43 lb ft) Starter Replacement (L5P) , or Starter Replacement (L8T) , or Starter Replacement (L5P & ULV)
4 Starter Solenoid Cable Nut - - 14 N.m (124 lb in) Starter Replacement (L5P) , or Starter Replacement (L8T) , or Starter Replacement (L5P & ULV)
5 Engine Wiring Harness Start Motor Lead Nut - - 3.4 N.m (30 lb in) Starter Replacement (L5P) , or Starter Replacement (L8T) , or Starter Replacement (L5P & ULV)

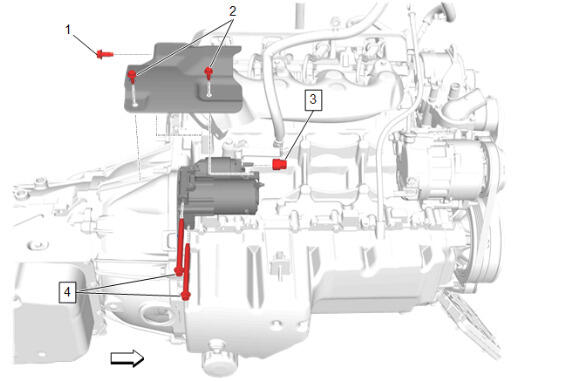

GM5785182Courtesy of GENERAL MOTORS COMPANY
Engine - Right Side (L8T)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Starter Heat Shield Bolt - - 22 N.m (16 lb ft) Starter Heat Shield Replacement (L8T) , or Starter Heat Shield Replacement (L5P & ULV) , or Starter Heat Shield Replacement (L5P)
2 Starter Heat Shield Bolt [2x] - - 9 N.m (80 lb in) Starter Heat Shield Replacement (L8T) , or Starter Heat Shield Replacement (L5P & ULV) , or Starter Heat Shield Replacement (L5P)
3 Battery Positive Cable Nut - - 14 N.m (124 lb in) Starter Replacement (L5P) , or Starter Replacement (L8T) , or Starter Replacement (L5P & ULV)
4 Starter Bolt [2x] - - 58 N.m (43 lb ft) Starter Replacement (L5P) , or Starter Replacement (L8T) , or Starter Replacement (L5P & ULV)

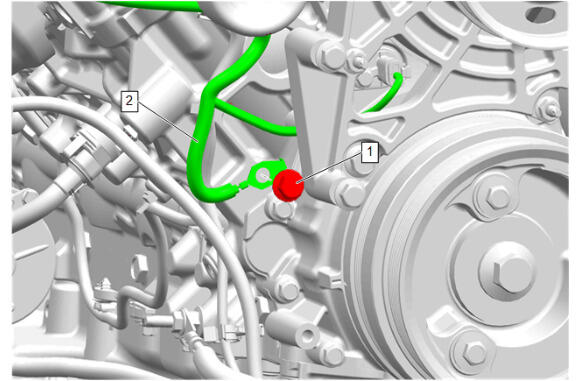

GM5971826Courtesy of GENERAL MOTORS COMPANY
Engine Wiring Harness Clip Bolt

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Engine Wiring Harness Clip Bolt - - 58 N.m (43 lb ft) Engine Removal and Installation (- ULV - KHF) , or Engine Removal and Installation (- ULV & KHF) , or Engine Removal and Installation (ULV - KHF) , or Engine Removal and Installation (ULV & KHF)

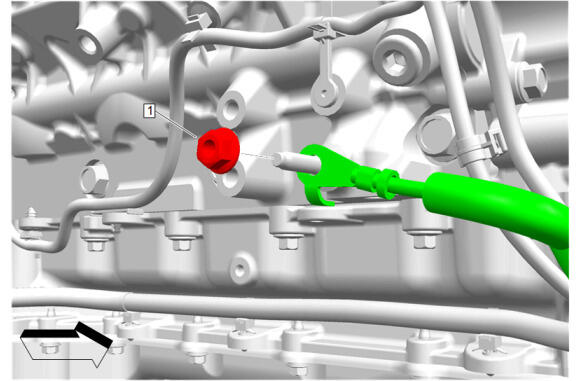

GM5994798Courtesy of GENERAL MOTORS COMPANY
Engine Wiring Harness Ground Nut

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Engine Wiring Harness Ground Nut - - 22 N.m (16 lb ft) Engine Removal and Installation (- ULV - KHF) , or Engine Removal and Installation (- ULV & KHF) , or Engine Removal and Installation (ULV - KHF) , or Engine Removal and Installation (ULV & KHF)

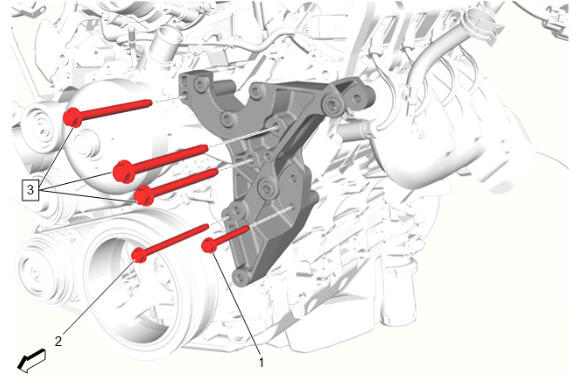

GM5783223Courtesy of GENERAL MOTORS COMPANY
Generator and Power Steering Pump Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Generator and Power Steering Pump Bracket Bolt - - 22 N.m (16 lb ft) Generator and Power Steering Pump Bracket Replacement
2 Generator and Power Steering Pump Bracket Bolt - - 22 N.m (16 lb ft) Generator and Power Steering Pump Bracket Replacement
3 Generator and Power Steering Pump Bracket Bolt [3x] - - 58 N.m (43 lb ft) Generator and Power Steering Pump Bracket Replacement

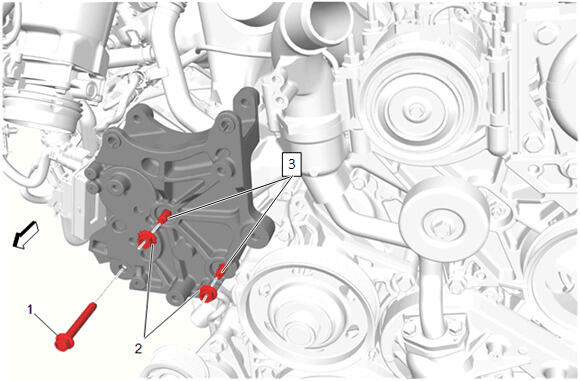

GM5782935Courtesy of GENERAL MOTORS COMPANY
Generator Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Generator Bracket Bolt - - 50 N.m (37 lb ft) Generator Bracket Replacement (L5P & KHF) , or Generator Bracket Replacement (L5P - KHF)
2 Generator Bracket Nut [2x] - - 50 N.m (37 lb ft) Generator Bracket Replacement (L5P & KHF) , or Generator Bracket Replacement (L5P - KHF)
3 Generator Bracket Stud [2x] - - 9 N.m (80 lb in) Generator Bracket Replacement (L5P & KHF) , or Generator Bracket Replacement (L5P - KHF)
GM5604877Courtesy of GENERAL MOTORS COMPANY
Multifunction Power Supply Converter Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Multifunction Power Supply Converter Nut [2x] - - 9 N.m (80 lb in) Multifunction Power Supply Converter Bracket Replacement
