Fastener Specifications

GM5786709Courtesy of GENERAL MOTORS COMPANY
Brake Pressure Modulator Valve Mounting

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Brake Pressure Modulator Valve Bracket Bolt [3x] - - 22 N.m (16 lb ft) Electronic Brake Control Module with Brake Pressure Modulator Valve Replacement
2 Brake Pressure Modulator Valve Bolt - - 11 N.m (97 lb in) Electronic Brake Control Module with Brake Pressure Modulator Valve Replacement

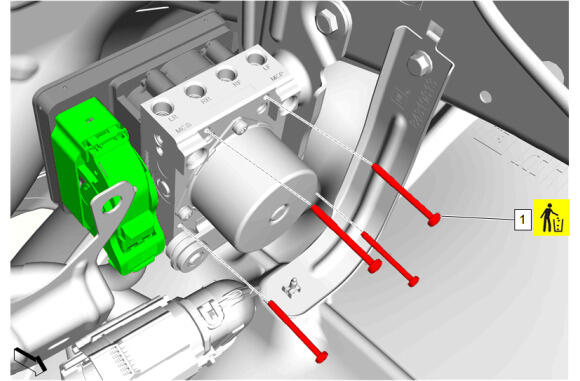

GM5750719Courtesy of GENERAL MOTORS COMPANY
Electronic Brake Control Module

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Electronic Brake Control Module Bolt [4x] Yes - Electronic Brake Control Module Bolt Sequence  Electronic Brake Control Module Replacement
GM5787173Courtesy of GENERAL MOTORS COMPANY
Front Wheel Speed Sensor Brackets

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Wheel Speed Sensor Bolt [2x] - - 9 N.m (80 lb in) Front Wheel Speed Sensor Replacement - Left Side
Front Wheel Speed Sensor Replacement - Right Side
GM5787172Courtesy of GENERAL MOTORS COMPANY
Front Wheel Speed Sensor at Knuckle

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Wheel Speed Sensor Bolt - - 9 N.m (80 lb in) Front Wheel Speed Sensor Replacement - Left Side
Front Wheel Speed Sensor Replacement - Right Side
GM5787284Courtesy of GENERAL MOTORS COMPANY
Rear Chassis Harness

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Chassis Rear Wiring Harness Bracket Bolt [3x] - - 9 N.m (80 lb in) Rear Wheel Speed Sensor Replacement - Right Side (without Chassis Cab - 310/314) (SRW) , or Rear Wheel Speed Sensor Replacement - Right Side (without Chassis Cab - 310/314) (DZW) , or Rear Wheel Speed Sensor Replacement - Right Side (with Chassis Cab - 310/314) (DZW)
Rear Wheel Speed Sensor Replacement - Left Side (without Chassis Cab - 310/314) (SRW) , or Rear Wheel Speed Sensor Replacement - Left Side (without Chassis Cab - 310/314) (DZW) , or Rear Wheel Speed Sensor Replacement - Left Side (with Chassis Cab - 310/314) (DZW)
2 Jounce Block bolt - Upper [2x] - - 9 N.m (80 lb in) Rear Wheel Speed Sensor Replacement - Right Side (without Chassis Cab - 310/314) (SRW) , or Rear Wheel Speed Sensor Replacement - Right Side (without Chassis Cab - 310/314) (DZW) , or Rear Wheel Speed Sensor Replacement - Right Side (with Chassis Cab - 310/314) (DZW)
Rear Wheel Speed Sensor Replacement - Left Side (without Chassis Cab - 310/314) (SRW) , or Rear Wheel Speed Sensor Replacement - Left Side (without Chassis Cab - 310/314) (DZW) , or Rear Wheel Speed Sensor Replacement - Left Side (with Chassis Cab - 310/314) (DZW)
3 Jounce Block Nut - Upper - - 9 N.m (80 lb in) Rear Wheel Speed Sensor Replacement - Right Side (without Chassis Cab - 310/314) (SRW) , or Rear Wheel Speed Sensor Replacement - Right Side (without Chassis Cab - 310/314) (DZW) , or Rear Wheel Speed Sensor Replacement - Right Side (with Chassis Cab - 310/314) (DZW)
Rear Wheel Speed Sensor Replacement - Left Side (without Chassis Cab - 310/314) (SRW) , or Rear Wheel Speed Sensor Replacement - Left Side (without Chassis Cab - 310/314) (DZW) , or Rear Wheel Speed Sensor Replacement - Left Side (with Chassis Cab - 310/314) (DZW)
4 Jounce Block bolt - Upper - - - Rear Wheel Speed Sensor Replacement - Right Side (without Chassis Cab - 310/314) (SRW) , or Rear Wheel Speed Sensor Replacement - Right Side (without Chassis Cab - 310/314) (DZW) , or Rear Wheel Speed Sensor Replacement - Right Side (with Chassis Cab - 310/314) (DZW)
Rear Wheel Speed Sensor Replacement - Left Side (without Chassis Cab - 310/314) (SRW) , or Rear Wheel Speed Sensor Replacement - Left Side (without Chassis Cab - 310/314) (DZW) , or Rear Wheel Speed Sensor Replacement - Left Side (with Chassis Cab - 310/314) (DZW)
5 Jounce Block bolt - - 9 N.m (80 lb in) Rear Wheel Speed Sensor Replacement - Right Side (without Chassis Cab - 310/314) (SRW) , or Rear Wheel Speed Sensor Replacement - Right Side (without Chassis Cab - 310/314) (DZW) , or Rear Wheel Speed Sensor Replacement - Right Side (with Chassis Cab - 310/314) (DZW)
Rear Wheel Speed Sensor Replacement - Left Side (without Chassis Cab - 310/314) (SRW) , or Rear Wheel Speed Sensor Replacement - Left Side (without Chassis Cab - 310/314) (DZW) , or Rear Wheel Speed Sensor Replacement - Left Side (with Chassis Cab - 310/314) (DZW)
6 Jounce Block Nut - Upper [2x] - - 9 N.m (80 lb in) Rear Wheel Speed Sensor Replacement - Right Side (without Chassis Cab - 310/314) (SRW) , or Rear Wheel Speed Sensor Replacement - Right Side (without Chassis Cab - 310/314) (DZW) , or Rear Wheel Speed Sensor Replacement - Right Side (with Chassis Cab - 310/314) (DZW)
Rear Wheel Speed Sensor Replacement - Left Side (without Chassis Cab - 310/314) (SRW) , or Rear Wheel Speed Sensor Replacement - Left Side (without Chassis Cab - 310/314) (DZW) , or Rear Wheel Speed Sensor Replacement - Left Side (with Chassis Cab - 310/314) (DZW)
7 Jounce Block bolt - - - Rear Wheel Speed Sensor Replacement - Right Side (without Chassis Cab - 310/314) (SRW) , or Rear Wheel Speed Sensor Replacement - Right Side (without Chassis Cab - 310/314) (DZW) , or Rear Wheel Speed Sensor Replacement - Right Side (with Chassis Cab - 310/314) (DZW)
Rear Wheel Speed Sensor Replacement - Left Side (without Chassis Cab - 310/314) (SRW) , or Rear Wheel Speed Sensor Replacement - Left Side (without Chassis Cab - 310/314) (DZW) , or Rear Wheel Speed Sensor Replacement - Left Side (with Chassis Cab - 310/314) (DZW)
GM5787286Courtesy of GENERAL MOTORS COMPANY
Rear Chassis Harness Tie Straps

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Tie Strap[4x] Yes - - Rear Wheel Speed Sensor Replacement - Right Side (without Chassis Cab - 310/314) (SRW) , or Rear Wheel Speed Sensor Replacement - Right Side (without Chassis Cab - 310/314) (DZW) , or Rear Wheel Speed Sensor Replacement - Right Side (with Chassis Cab - 310/314) (DZW)
Rear Wheel Speed Sensor Replacement - Left Side (without Chassis Cab - 310/314) (SRW) , or Rear Wheel Speed Sensor Replacement - Left Side (without Chassis Cab - 310/314) (DZW) , or Rear Wheel Speed Sensor Replacement - Left Side (with Chassis Cab - 310/314) (DZW)
GM5787170Courtesy of GENERAL MOTORS COMPANY
Rear Wheel Speed Sensor with DZW

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Wheel Speed Sensor Bolt- Right Side [2x] - - 9 N.m (80 lb in) Rear Wheel Speed Sensor Replacement - Right Side (without Chassis Cab - 310/314) (SRW) , or Rear Wheel Speed Sensor Replacement - Right Side (without Chassis Cab - 310/314) (DZW) , or Rear Wheel Speed Sensor Replacement - Right Side (with Chassis Cab - 310/314) (DZW)
2 Rear Wheel Speed Sensor Bolt- Left Side [2x] - - 9 N.m (80 lb in) Rear Wheel Speed Sensor Replacement - Left Side (without Chassis Cab - 310/314) (SRW) , or Rear Wheel Speed Sensor Replacement - Left Side (without Chassis Cab - 310/314) (DZW) , or Rear Wheel Speed Sensor Replacement - Left Side (with Chassis Cab - 310/314) (DZW)
GM5787287Courtesy of GENERAL MOTORS COMPANY
Rear Wheel Speed Sensor with SRW

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Wheel Speed Sensor Bolt - - 9 N.m (80 lb in) Rear Wheel Speed Sensor Replacement - Right Side (without Chassis Cab - 310/314) (SRW) , or Rear Wheel Speed Sensor Replacement - Right Side (without Chassis Cab - 310/314) (DZW) , or Rear Wheel Speed Sensor Replacement - Right Side (with Chassis Cab - 310/314) (DZW)
Rear Wheel Speed Sensor Replacement - Left Side (without Chassis Cab - 310/314) (SRW) , or Rear Wheel Speed Sensor Replacement - Left Side (without Chassis Cab - 310/314) (DZW) , or Rear Wheel Speed Sensor Replacement - Left Side (with Chassis Cab - 310/314) (DZW)

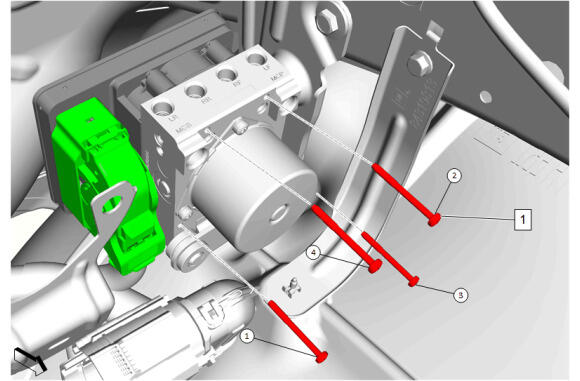

Electronic Brake Control Module Bolt Sequence
GM5750717Courtesy of GENERAL MOTORS COMPANY
Callout Component Name[Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Electronic Brake Control Module Bolt [4x] Yes - First Pass: 1.5 N.m (13 lb in)
Second Pass: 2.5 N.m (22 lb in)
Final Pass: 3.5 N.m (31 lb in)		 Electronic Brake Control Module Replacement
