Removal Procedure
- Prepare the brake system control module for removal. Control Module References
- Front Wheelhouse Liner - Remove - Front Wheelhouse Liner Replacement
- Thoroughly clean the area around the electronic brake control module (EBCM) and brake pressure modulator valve (BPMV) of all dirt and debris.
- NOTE:
Brake pipes not shown for graphic clarity. It is not necessary to remove the brake pipes from the BPMV.

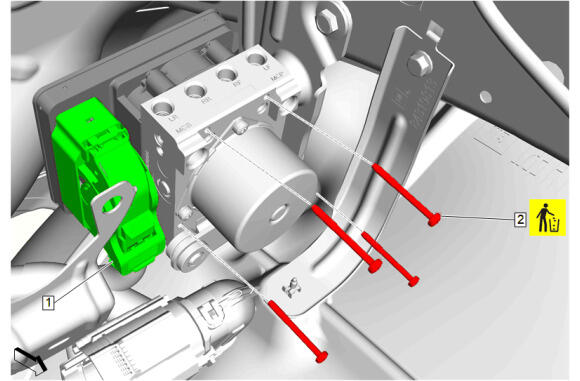

Disconnect the electrical connector. (1)
- Electronic Brake Control Module Bolt (2) - Remove and DISCARD [4x]
- NOTE:
Brake pipes not shown for graphic clarity. It is not necessary to remove the brake pipes from the BPMV.

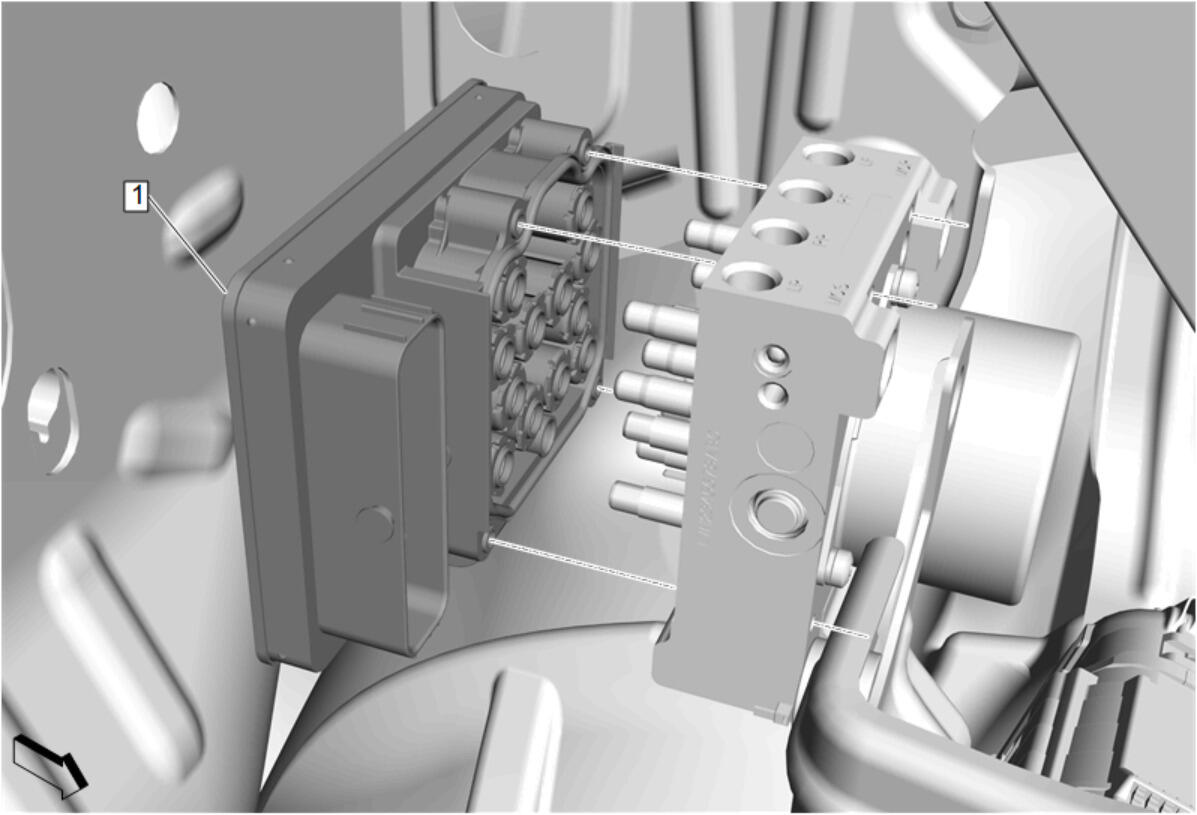

Electronic Brake Control Module (1) - Remove
