Installation Procedure

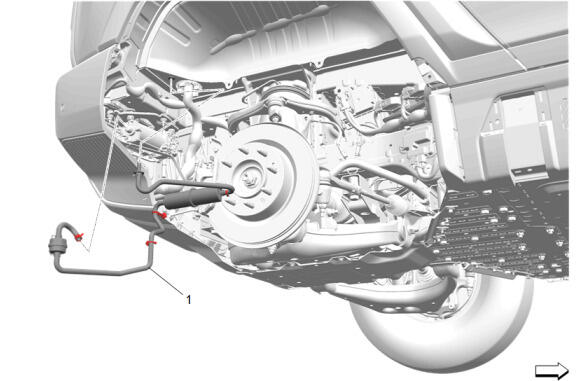

  1. GM6157567Courtesy of GENERAL MOTORS COMPANY

    Automatic Level Control Air Compressor Inlet Tube (1) - Install

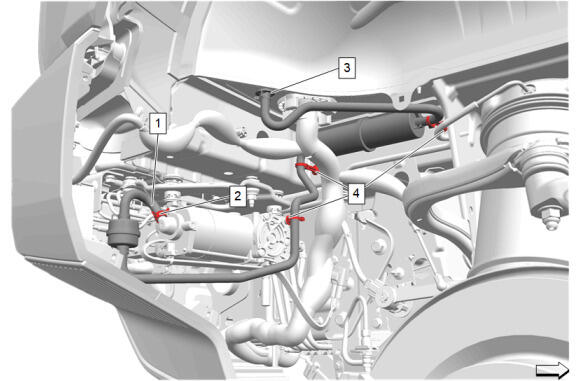

  2. GM6154876Courtesy of GENERAL MOTORS COMPANY

    Install the 3 automatic level control air compressor inlet tube retainers (4).

  3. Install the automatic level control air compressor inlet tube (1) in the body grommet (3).
  4. Automatic Level Control Air Compressor Inlet Tube (1) - Install
  5. Install the hose clamp (1) on the automatic level control air compressor inlet tube (2).

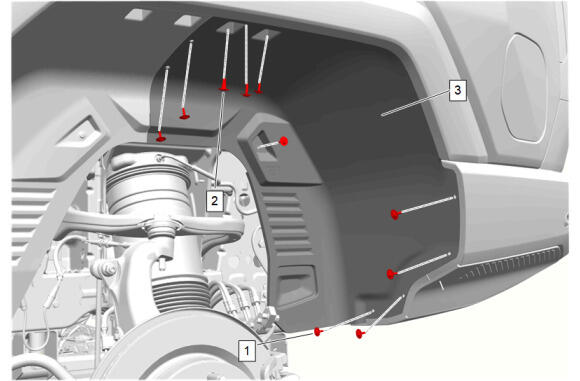

  6. GM5810325Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Rear Wheelhouse Panel Rear Liner- Right Side (3) - Install

    7. CAUTION:

    Refer to Fastener Caution

  7. Rear Wheelhouse Liner Bolt- Right Side (1) - Install and tighten [9x] - Fastener Specifications
  8. Rear Wheelhouse Liner Retainer- Right Side (2) - Install
  9. Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
