Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

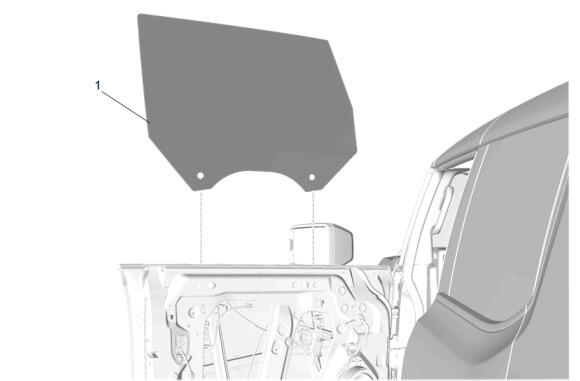

Place the front side door window (1) into the door frame.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

CAUTION:
Refer to Fastener Caution .

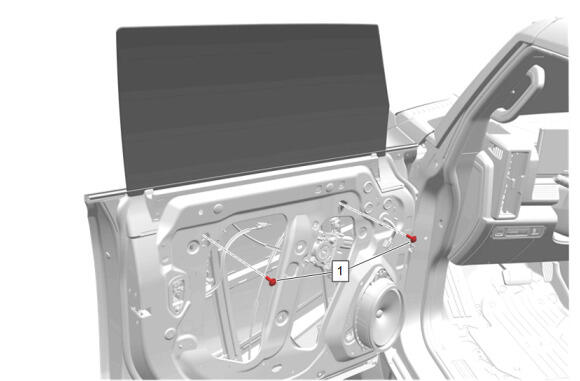

Install and tighten the 2 front side door window regulator sash retaining bolts (1). Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

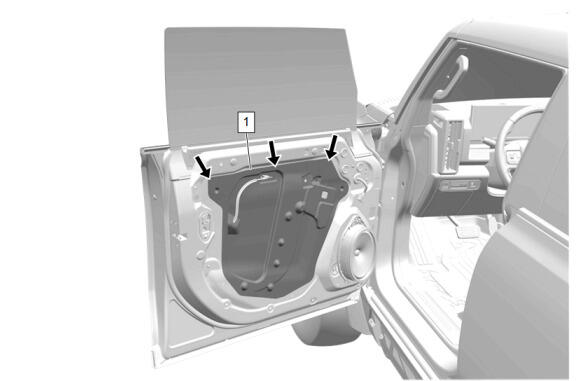

Front Side Door Water Deflector (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Trim (3) - Install - Front Side Door Trim Removal and Installation
Enable the SIR System. SIR Disabling and Enabling
