Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

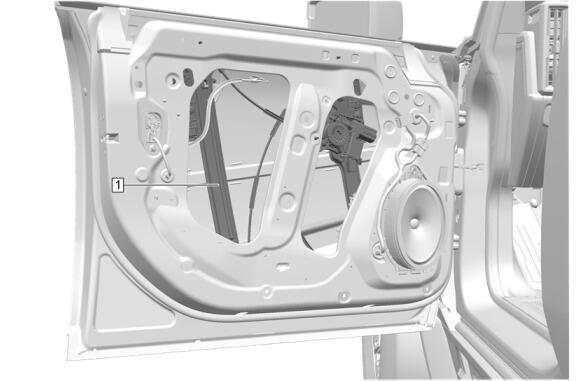

Install the front side door window regulator (1) through the door panel opening.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

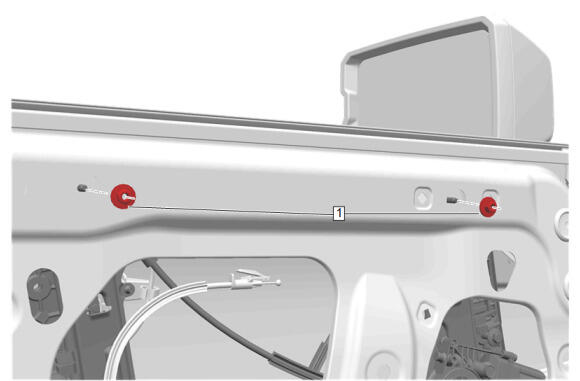

Install and tighten the 2 front side door window regulator upper nuts (1). Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

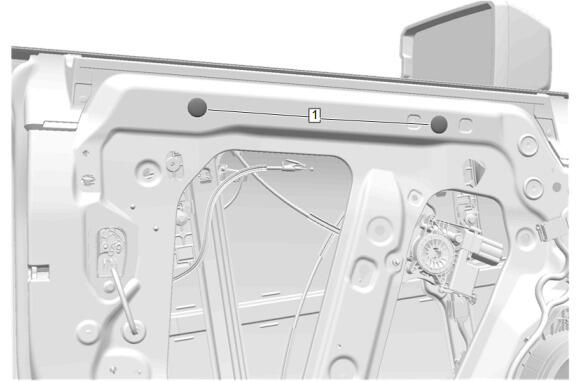

Install the 2 front side door window regulator upper access plugs (1).
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Window Regulator Nut (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

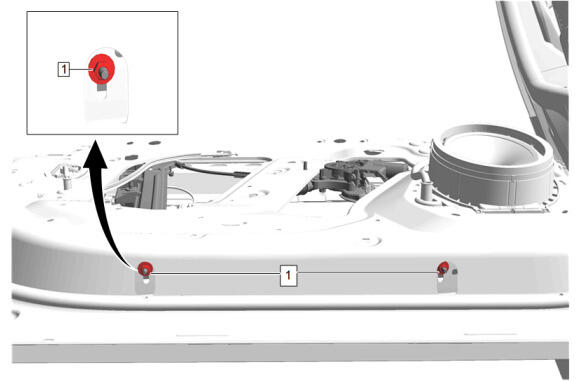

Align the 2 front side door window regulator lower nuts (1) to the marked location before removal.
Install and tighten the 2 rear side door window regulator lower nuts (1). Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

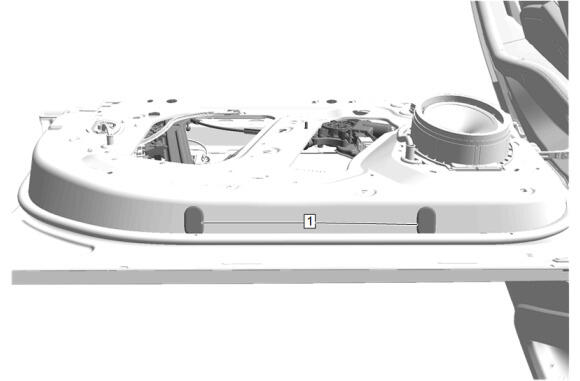

Install the 2 front side door window regulator lower access plugs (1).
Courtesy of GENERAL MOTORS COMPANY

Place the front side door window (1) into the door frame.
Courtesy of GENERAL MOTORS COMPANY

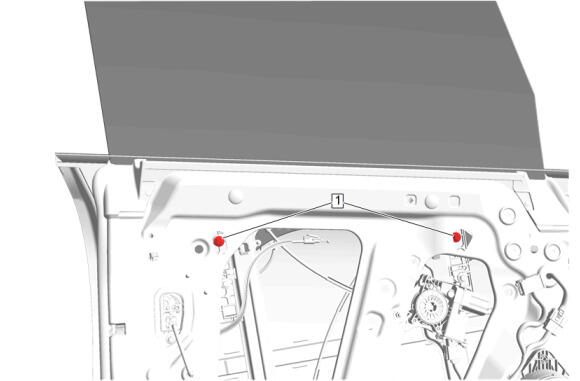

Install and tighten the 2 front side door window regulator sash retaining bolts (1). Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

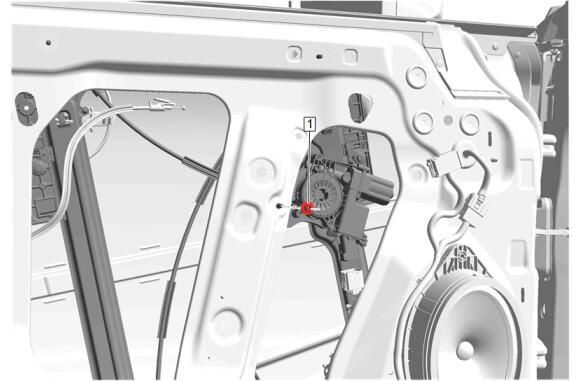

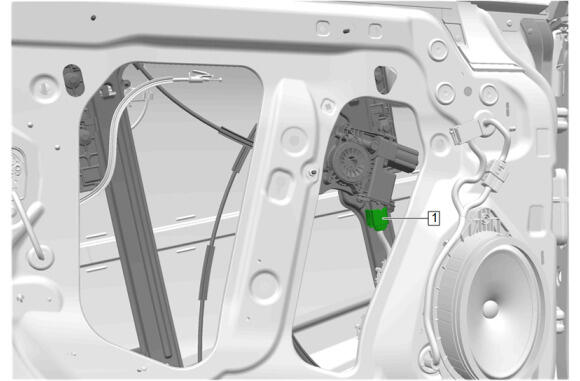

Connect the electrical connector (1).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
When reinstalling water deflector ensure integral locators are installed properly and that water deflector is secured and leakproof.

Route front side door inside handle cable through hole in deflector (1).
Front Side Door Water Deflector (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Pull Handle Bracket (2) - Install
Front Side Door Pull Handle Bolt (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Trim (3) - Install - Front Side Door Trim Removal and Installation
Enable the SIR System. SIR Disabling and Enabling
