Installation Procedure
Install the air suspension control module (3) on the air suspension control module manifold assembly (2).
- Automatic Level Control Air Compressor Bolt (1) - Install and tighten - Fastener Specifications

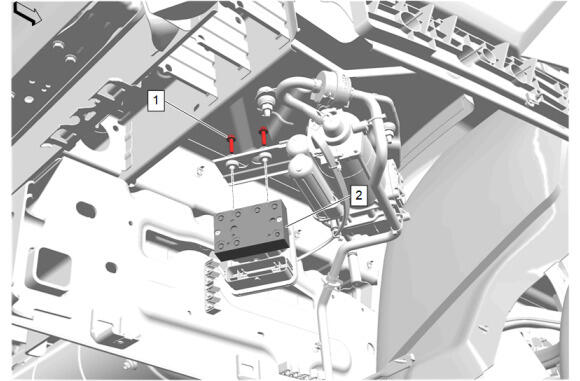

Install the air suspension control module manifold assembly (1) and air suspension control module as an assembly.
- Install and tighten the 2 automatic level control air compressor bolts (1). Fastener Specifications
- NOTE:
The air suspension controller and the air lines are color coded for ease of installation.
Electrical Connector (2) - Connect [3x]
- Install and tighten the 7 automatic level control air compressor tube fitting (1) to the air suspension control module manifold assembly. Fastener Specifications
Automatic Level Control Module (1) - Install
Automatic Level Control Air Compressor Nut (2) - Install and tighten [2x] - Fastener Specifications
- Automatic Level Control Air Compressor Bolt (1) - Install and tighten - Fastener Specifications

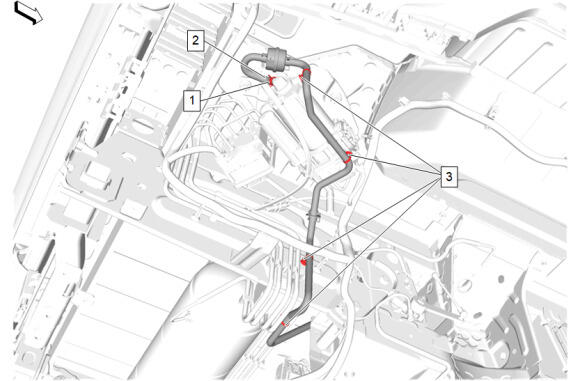

Install the 4 automatic level control air compressor inlet tube retainers (3).
- Automatic Level Control Air Compressor Inlet Tube (2) - Install
- Install the hose clamp (1) on the automatic level control air compressor inlet tube (2). Hose Clamp Replacement Guidelines - Spring Type
Remove the automatic level control air supply reservoir coupling cap (1).
- Install CH-52667 Air Spring Inflator to the automatic level control air supply reservoir air valve (2) and set the regulator on the nitrogen tank to 16 Bar (232 PSI).
- Using CH-52667 Air Spring Inflator, open the valve on the pressure gage to fill the automatic level control air supply reservoir.
- Using CH-52667 Air Spring Inflator and the shop nitrogen tank, fill the automatic level control air supply reservoir to 16 Bar (232 PSI).
- Close the pressure gauge valve and remove CH-52667 Air Spring Inflator from the automatic level control air supply reservoir.
- Install the automatic level control air supply reservoir coupling cap (1) and tighten. Fastener Specifications
- Partially lower the vehicle, but DO NOT let the wheels touch the ground.
- Using GDS2 tool, use short-term inflate to increase pressure to the air springs:
- Front: 6 Bar (87 PSI)
- Rear: 5 Bar (73 PSI)
- Using GDS2, verify automatic level control air supply tank pressure is at 16 Bar (232 PSI), if not repeat steps 7 - 12.

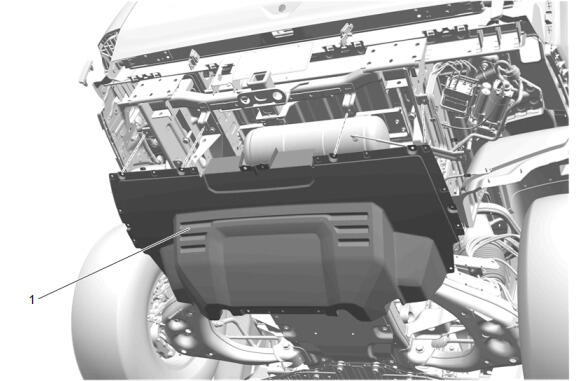

Underbody Rear Air Rear Deflector (1) - Install

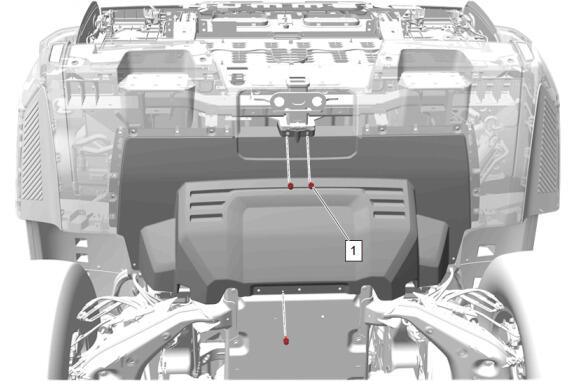

Underbody Rear Air Deflector Bolt (1) - Install and tighten [6x] - Fastener Specifications

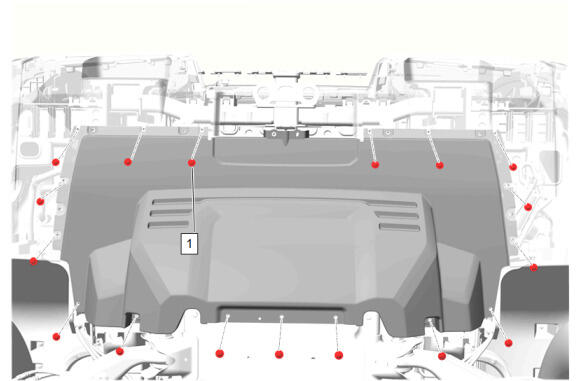

Underbody Rear Air Deflector Bolt (1) - Install and tighten [17x] - Fastener Specifications

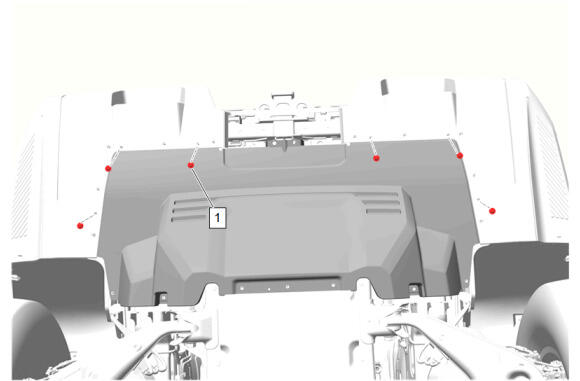

Underbody Rear Air Deflector Retainer (1) - Install [3x]
With the aid of an assistant, install the fascia. (1) Rear Bumper Fascia Removal and Installation (GQH / GQI / GQO) , or Rear Bumper Fascia Removal and Installation (GQ2 / GQB / GQC)
- Remove the support and lower the vehicle.
Refer to Fastener Caution .
