Fastener Specifications

GM5869324Courtesy of GENERAL MOTORS COMPANY
Battery Charger Bolts @ Drive Motor Power Distribution Control Module Protector

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Power Distribution Control Module Bolt [3x] - - 9 N.m (80 lb in) Battery Charger Replacement
GM5867014Courtesy of GENERAL MOTORS COMPANY
Battery Charger Bolts @ Power Electric Carrier Frame

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Power Distribution Control Module Bolt [4x] - - 22 N.m (16 lb ft) Battery Charger Replacement

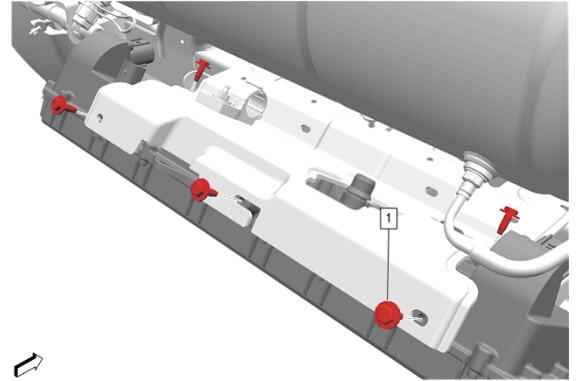

GM6180423Courtesy of GENERAL MOTORS COMPANY
Battery Charger Control Module 2 Bolts @ Back and Top

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Battery Charger Bolt [5x] - - 9 N.m (80 lb in) Battery Charger Replacement - Battery Charger Control Module 2 (GQ2, GQB, GQC)

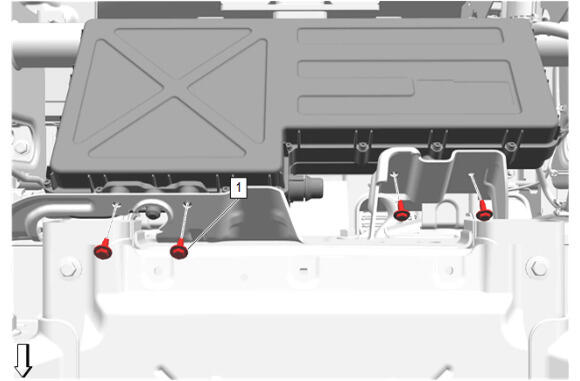

GM6180424Courtesy of GENERAL MOTORS COMPANY
Battery Charger Control Module 2 Bolts @ Bottom

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Battery Charger Bolt [4x] - - 9 N.m (80 lb in) Battery Charger Replacement - Battery Charger Control Module 2 (GQ2, GQB, GQC)
GM5870404Courtesy of GENERAL MOTORS COMPANY
Battery Charger Coupling Bolt @ Ground Strap

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Battery Charger Receptacle Bolt - - 22 N.m (16 lb ft) Battery Charger Coupler Replacement
GM5870406Courtesy of GENERAL MOTORS COMPANY
Battery Charger Coupling Bolts @ Channel

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Battery Charger Receptacle Bolt [3x] - - 9 N.m (80 lb in) Battery Charger Coupler Replacement
GM5870405Courtesy of GENERAL MOTORS COMPANY
Battery Charger Coupling Bolts @ Charge Port Housing

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Battery Charger Receptacle Bolt [4x] - - 9 N.m (80 lb in) Battery Charger Coupler Replacement

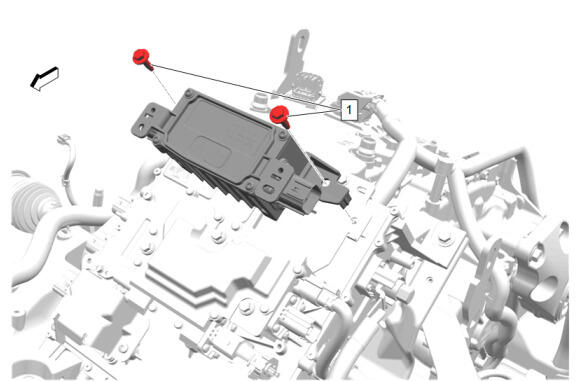

GM6328028Courtesy of GENERAL MOTORS COMPANY
Battery Charger Coupler Fuse Block

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Generator Bolt [2x] - - 9 N.m (80 lb in) Battery Charger Coupler Fuse Block Replacement (P80 / P8L)
GM5905775Courtesy of GENERAL MOTORS COMPANY
Drive Motor Power Inverter Module Bracket Bolts

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Power Inverter Module Cooling Inlet Hose Bracket Bolt [2x] - - 9 N.m (80 lb in) Battery Charger Replacement

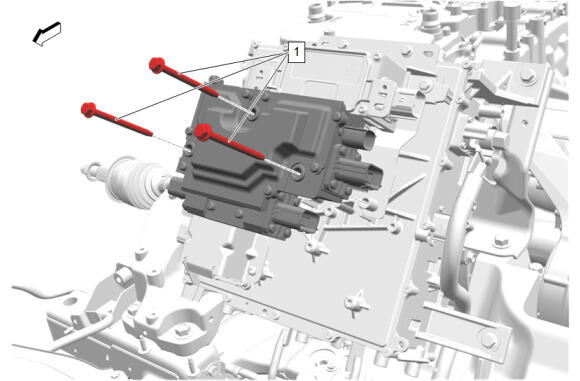

GM6328256Courtesy of GENERAL MOTORS COMPANY
Hybrid/Electric Vehicle Battery Charging Disconnect Module Relay

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Battery Charger Module Relay Bolt [3x] - - 9 N.m (80 lb in) Hybrid/Electric Vehicle Battery Charging Disconnect Module Relay Replacement (P80 / P8L)
