Installation Procedure

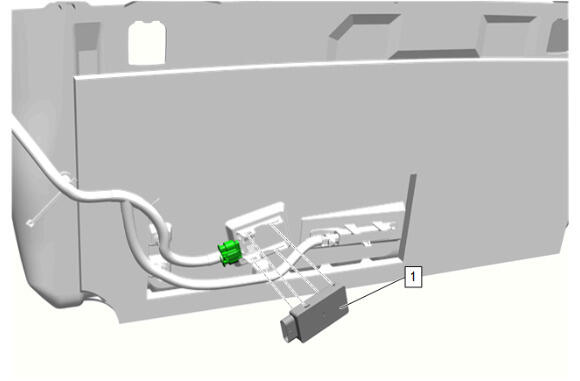

  1. GM5830170Courtesy of GENERAL MOTORS COMPANY

    UHF Low Energy Remote Control Access Sensor Transceiver (1) - Install

  2. Secure the retaining tabs.
  3. Connect the electrical connector.

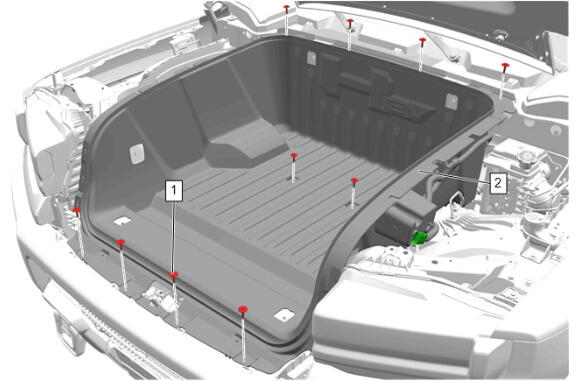

  4. GM5787366Courtesy of GENERAL MOTORS COMPANY

    Front Trim Finish Compartment (2) - Install - Front Trim Finish Compartment Removal and Installation
