Installation Procedure

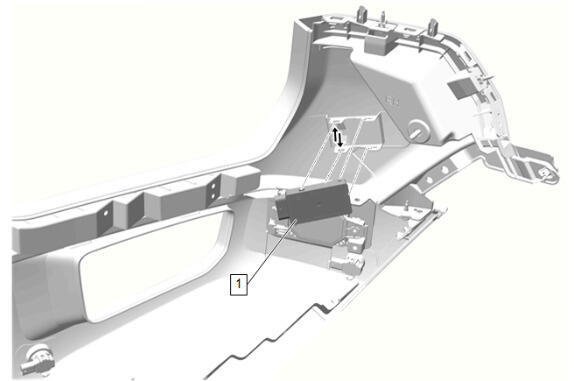

  1. GM5819287Courtesy of GENERAL MOTORS COMPANY

    UHF Low Energy Remote Control Access Sensor Transceiver (1) - Install

  2. Secure the retaining tabs.
  3. Connect the electrical connector.
  4. GM5788843Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (1) - Install - Front Bumper Fascia Removal and Installation
