Home >> GMC >> 2024 >> Hummer EV 2X, 4D Utility >> Repair and Diagnosis >> Body & Frame >> Body, Cab Control Systems >> Vehicle Access System - Repair Instructions >> Repair Instructions >> Hood Latch Release Switch Replacement >> Removal Procedure

Removal Procedure

  1. GM5788843Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, remove the fascia. (1) Front Bumper Fascia Removal and Installation

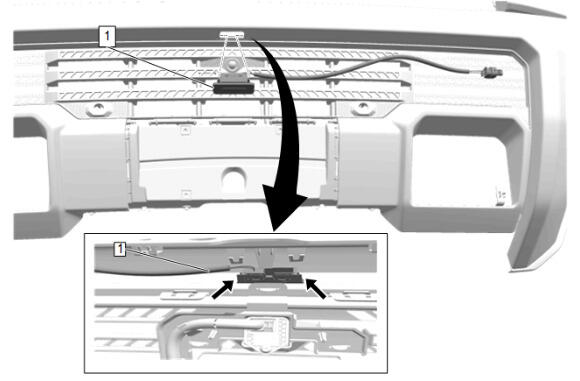

  2. GM6356664Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector.

  3. Release the retaining tabs.
  4. Hood Latch Release Switch (1) - Remove
