Installation Procedure

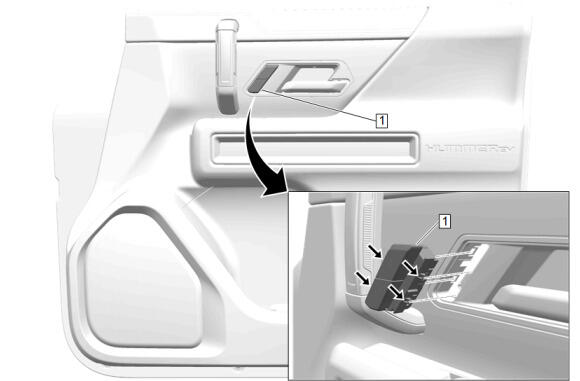

  1. GM5912066Courtesy of GENERAL MOTORS COMPANY

    Door Lock Switch - Passenger Front (1) - Install

  2. Connect the electrical connector.
  3. Install the insulator as necessary.

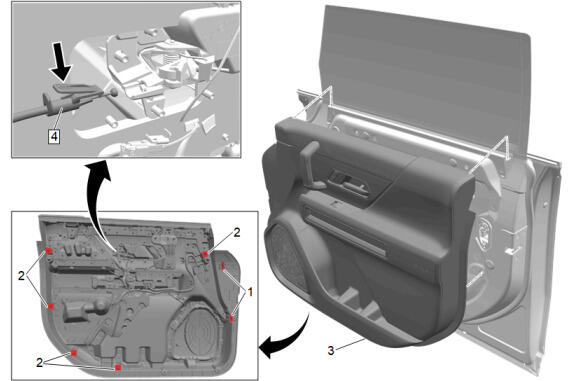

  4. GM5912067Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Trim (3) - Install - Front Side Door Trim Removal and Installation
