Fastener Specifications

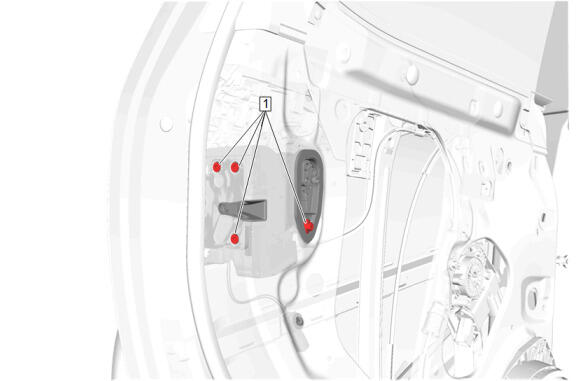

GM5834777Courtesy of GENERAL MOTORS COMPANY
Front Side Door Latch

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Latch Bolt [4x] - - 9 N.m (80 lb in) Front Side Door Latch Replacement
GM5833095Courtesy of GENERAL MOTORS COMPANY
Front Side Door Latch Striker

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Latch Striker Bolt [2x] - - 22 N.m (16 lb ft) Front Side Door Latch Striker Replacement
GM5862754Courtesy of GENERAL MOTORS COMPANY
Front Side Door Outside Handle Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Outside Handle Bracket Front Bolt - - 4.7 N.m (42 lb in) Front Side Door Outside Handle Bracket Replacement
2 Front Side Door Outside Handle Bracket Rear Bolt - - 4.7 N.m (42 lb in) Front Side Door Outside Handle Bracket Replacement

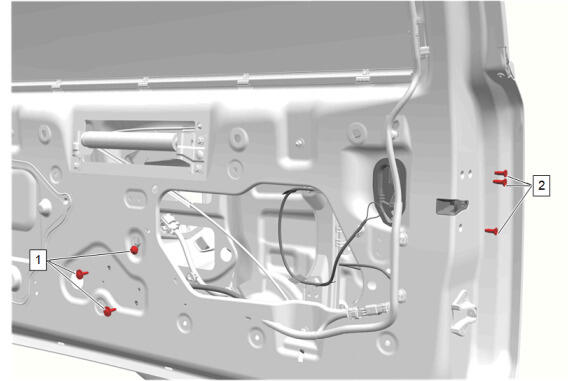

GM6152373Courtesy of GENERAL MOTORS COMPANY
Rear Door Latch (GQ2 / GQB / GQC)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Liftgate Latch Control Module Bolt [3x] - - 9 N.m (80 lb in) Rear Door Latch Replacement (GQ2 / GQB / GQC)
2 Rear Door Latch Bolt [3x] - Yes 9 N.m (80 lb in) Rear Door Latch Replacement (GQ2 / GQB / GQC)
GM5839481Courtesy of GENERAL MOTORS COMPANY
Pickup Box Auxiliary Endgate Latch (GQH / GQI / GQO)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Pickup Box Auxiliary Endgate Latch Bolt [2x] - - 25 N.m (10 lb in) Pickup Box Auxiliary Endgate Latch Replacement (GQH / GQI / GQO)
GM5834867Courtesy of GENERAL MOTORS COMPANY
Pickup Box Endgate Latch (GQH / GQI / GQO)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Pickup Box Endgate Latch Handle Bolt - - 25 N.m (10 lb in) Pickup Box Endgate Latch Replacement (GQH / GQI / GQO)
GM5834866Courtesy of GENERAL MOTORS COMPANY
Pickup Box Endgate Latch Handle (GQH / GQI / GQO)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Pickup Box Endgate Latch Handle Bolt [3x] - - 4 N.m (35 lb in) Pickup Box Endgate Latch Handle Replacement (GQH / GQI / GQO)

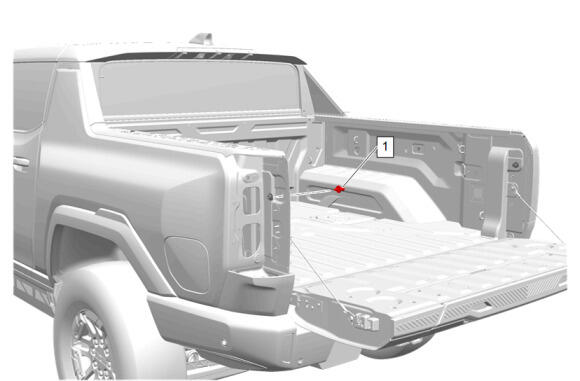

GM5839317Courtesy of GENERAL MOTORS COMPANY
Pickup Box Endgate Striker (GQH / GQI / GQO)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Pickup Box Endgate Striker - - 40 N.m (30 lb ft) Pickup Box Endgate Striker Replacement (GQH / GQI / GQO)

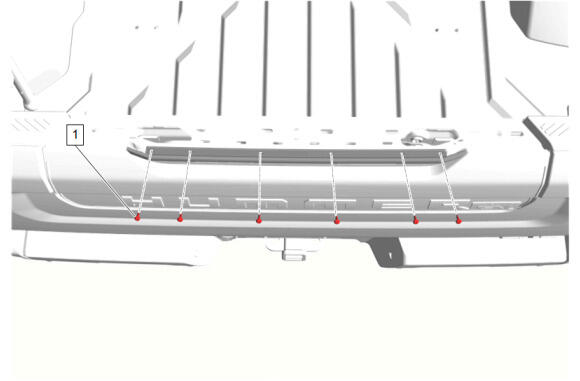

GM6635885Courtesy of GENERAL MOTORS COMPANY
Rear Closure Fixed Handle Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Closure Center Applique Bolt [6x] - - 2.5 N.m (22 lb in) Rear Closure Fixed Handle Applique Replacement

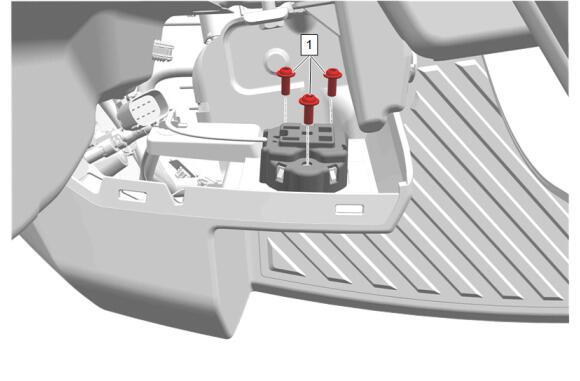

GM6152584Courtesy of GENERAL MOTORS COMPANY
Rear Door Access Control Pushbutton (GQ2/ GQB / GQC)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Door Access Control Pushbutton Bolt [3x] - - 2.5 N.m (22 lb in) Rear Door Access Control Pushbutton Replacement (GQ2 / GQB / GQC)

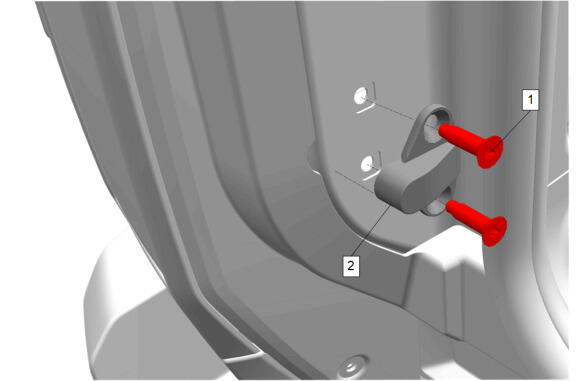

GM6379232Courtesy of GENERAL MOTORS COMPANY
Rear Door Body Side Bumper

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Door Guide Wedge Bolt [2x] - - 22 N.m (16 lb ft) Rear Door Body Side Bumper Replacement

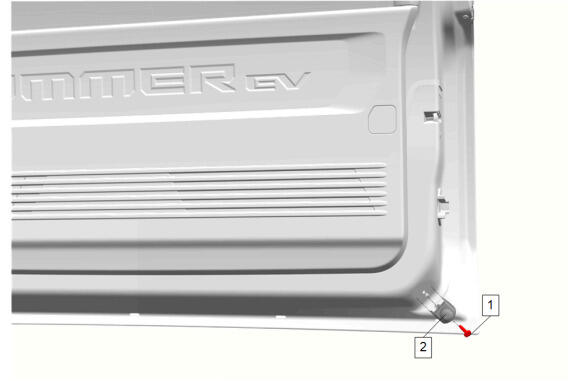

GM6378692Courtesy of GENERAL MOTORS COMPANY
Rear Door Bumper

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Door Bumper Bolt - - 9 N.m (80 lb in) Rear Door Bumper Replacement

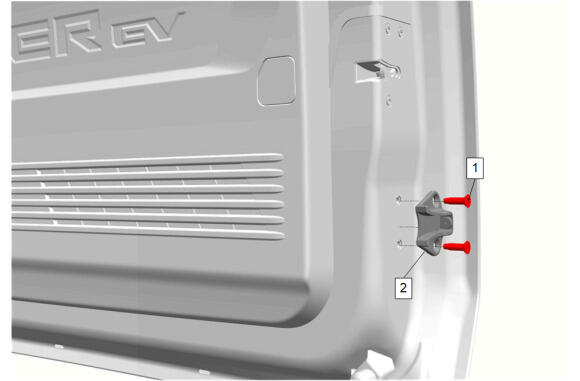

GM6379241Courtesy of GENERAL MOTORS COMPANY
Rear Door Door Side Bumper

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Door Guide Wedge Bolt [2x] - - 22 N.m (16 lb ft) Rear Door Door Side Bumper Replacement

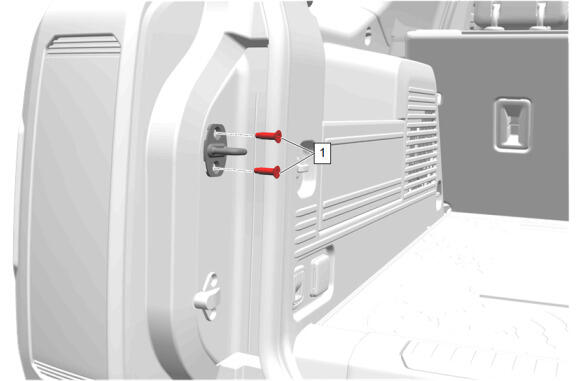

GM6157757Courtesy of GENERAL MOTORS COMPANY
Rear Door Latch Striker (GQ2/ GQB / GQC)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Door Latch Striker Bolt [2x] - - 22 N.m (16 lb ft) Rear Door Latch Striker Replacement (GQ2 / GQB / GQC)

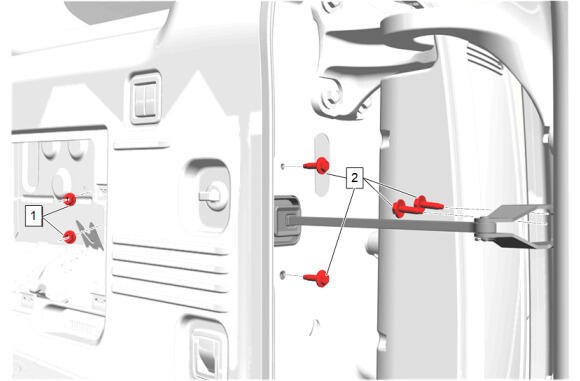

GM6151260Courtesy of GENERAL MOTORS COMPANY
Rear Door Power Assist Actuator (GQ2/ GQB / GQC)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Door Power Assist Actuator Nut [2x] - - 9 N.m (80 lb in) Rear Door Power Assist Actuator Replacement (GQ2 / GQB / GQC)
2 Rear Door Power Assist Actuator Bolt [4x] - - 17 N.m (13 lb ft)

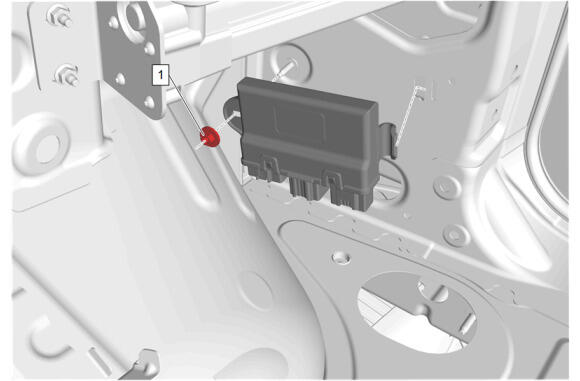

GM6146976Courtesy of GENERAL MOTORS COMPANY
Rear Gate Module (GQ2/ GQB / GQC)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Access Control Module Nut - - 9 N.m (80 lb in) Rear Gate Module Replacement (GQ2 / GQB / GQC)
GM5834815Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Latch

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Latch Bolt [4x] - Yes 9 N.m (80 lb in) Rear Side Door Latch Replacement
GM5834818Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Latch Striker

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Latch Striker Bolt [2x] - - 22 N.m (16 lb ft) Rear Side Door Latch Striker Replacement
GM5862755Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Outside Handle Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Outside Handle Bracket Front Bolt - - 4.7 N.m (42 lb in) Rear Side Door Outside Handle Bracket Replacement
2 Rear Side Door Outside Handle Bracket Rear Bolt - - 4.7 N.m (42 lb in) Rear Side Door Outside Handle Bracket Replacement
