Fastener Specifications

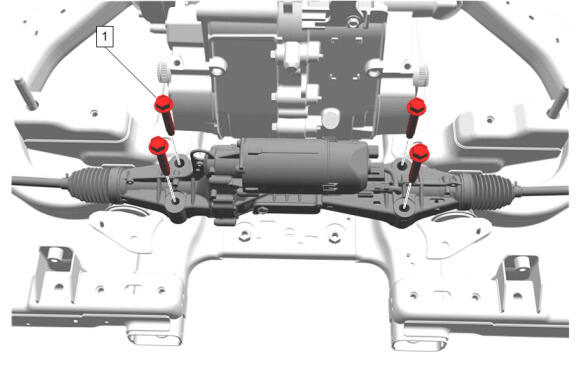

Rear Wheel Steering Actuator
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Wheel Steering Actuator Bolt [4x] | - | - | First Pass: 160 N.m (118 lb ft) Second Pass: 30-45 degrees |
Rear Wheel Steering Actuator Replacement |

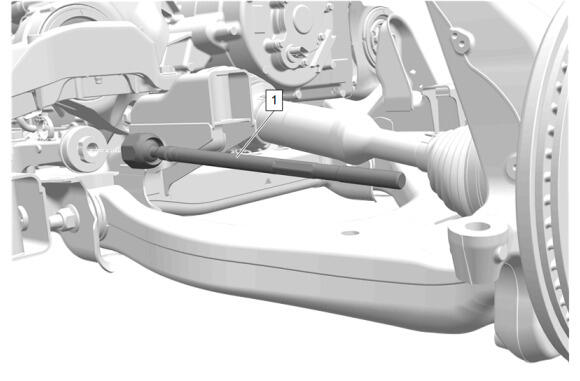

Rear Wheel Steering Inner Tie Rod
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Wheel Steering Linkage Inner Tie Rod | - | - | First Pass: 60 N.m (44 lb ft) Second Pass: 20-30 degrees |
Rear Wheel Steering Inner Tie Rod Replacement |

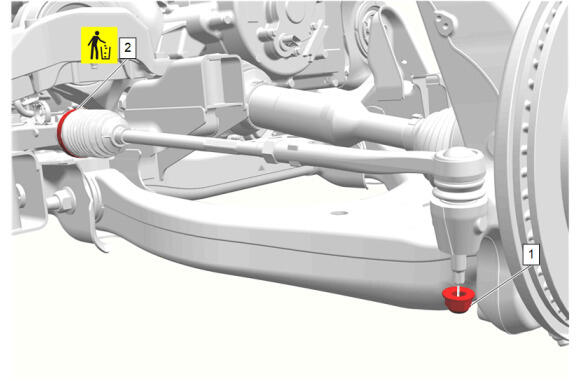

Rear Wheel Steering Outer Tie Rod
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Wheel Steering Actuator Nut | - | - | First Pass: 35 N.m (26 lb ft) Second Pass: 85-100 degrees |
Rear Wheel Steering Linkage Outer Tie Rod Replacement |
| 2 | Steering Gear Boot Clamp - Inner | Yes | - | - | Rear Wheel Steering Inner Tie Rod Replacement |
