Removal Procedure

Fold the rear seat back to the downward position.
Courtesy of GENERAL MOTORS COMPANY

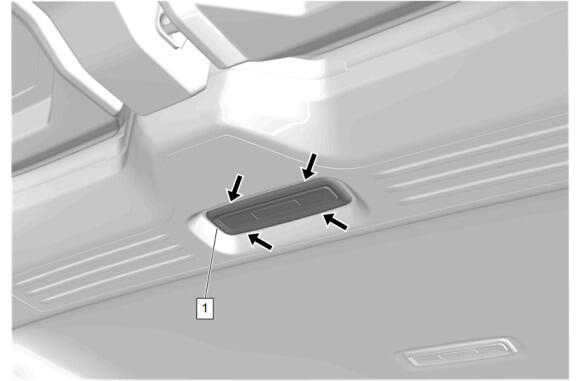

Insert a suitable flat-bladed plastic trim tool between the rear seat position center reading and courtesy lamp (1) and back body opening side molding.
Separate the rear seat position center reading and courtesy lamp (1) from the back body opening side molding.
Courtesy of GENERAL MOTORS COMPANY

Pull downward to release the retaining tabs.
Rear Seat Position Center Reading and Courtesy Lamp (1) - Remove
Disconnect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Use a flat-bladed plastic trim tool to release the retaining clips.
Disconnect the wiring harness retainer.
Back Body Opening Side Molding (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Using a suitable plastic trim tool, release the retaining tabs.
Rear Seat Belt Opening Bezel - Right Side (1) - Reposition
Courtesy of GENERAL MOTORS COMPANY

Pull the body side rear window garnish molding (1) inwards to release the retaining clips from the body side inner frame.
Disconnect the electrical connector and release the wiring harness retainers as necessary.
Body Side Rear Window Garnish Molding - Right Side (1) - Reposition
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Disconnect the electrical connector.
Release the retaining tab.
Remote Function Actuator Module (1) - Remove
