Installation Procedure

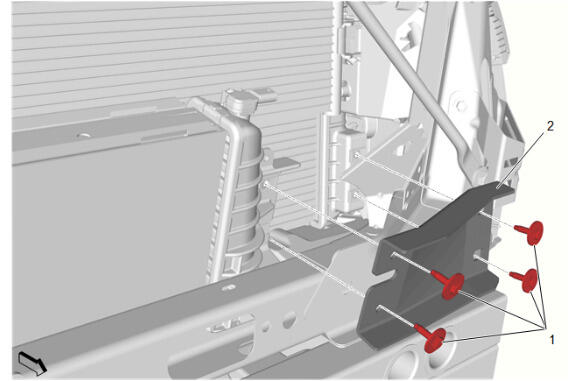

  1. GM6157999Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Radiator Bracket (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Charge Air Cooler Bolt (1) - Install and tighten [4x] - Fastener Specifications
  3. GM6165917Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Shutter (1) - Install

  4. GM6141023Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Shutter Bolt (1) - Install and tighten [8x] - Fastener Specifications

  5. GM6141014Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Shutter Bolt (1) - Install and tighten [2x] - Fastener Specifications

  6. GM6141507Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector. (1)

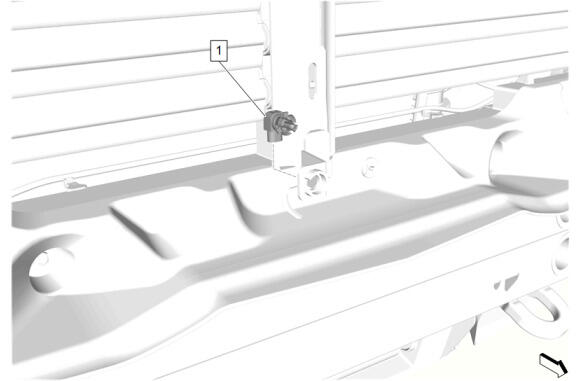

  7. GM6124684Courtesy of GENERAL MOTORS COMPANY

    Ambient Air Temperature Sensor (1) - Install

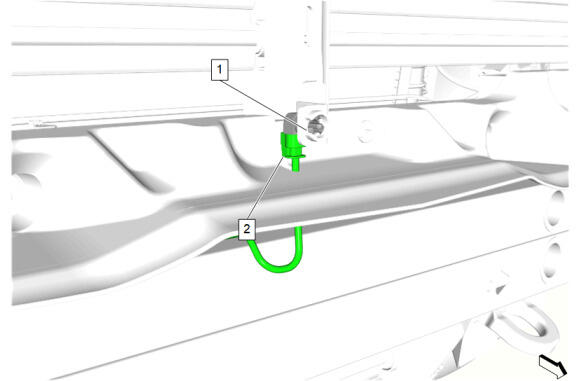

  8. GM6124683Courtesy of GENERAL MOTORS COMPANY

    Ensure the ambient air temperature sensor retaining tabs are fully engaged in the ambient air temperature gauge sensor bracket (1).

  9. Connect the electrical connector. (2)
  10. GM6164817Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, install the fascia. (1) Front Bumper Fascia Removal and Installation (- SD0) , or Front Bumper Fascia Removal and Installation (SD0)
