Fastener Specifications

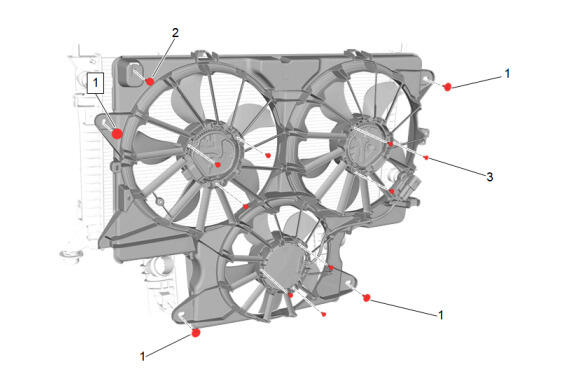

GM6201522Courtesy of GENERAL MOTORS COMPANY
Engine Coolant Fan Rear Shroud

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Coolant Fan Shroud Bolt [4x] - - 9 N.m (80 lb in) Engine Coolant Fan Rear Shroud Replacement (4TX) , or Engine Coolant Fan Rear Shroud Replacement (- 4TX)
2 Radiator Inlet Hose Clip Bolt - - 9 N.m (80 lb in) Radiator Inlet Hose Replacement
3 Fan Blade Bolt [9x] - - 6.65 N.m (59 lb in) Engine Cooling Fan Motor Replacement (- 4TX) , or Engine Cooling Fan Motor Replacement (4TX)

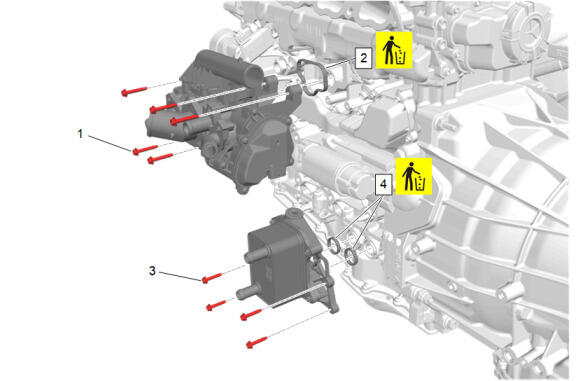

GM6165167Courtesy of GENERAL MOTORS COMPANY
Engine Coolant Flow Control Valve & Engine Oil Cooler

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Coolant Flow Control Valve Bolt [5x] - - 8.5 N.m (75 lb in) Engine Coolant Flow Control Valve Replacement
2 Engine Coolant Flow Control Valve Seal Yes - - Engine Coolant Flow Control Valve Replacement
3 Engine Oil Cooler Bolt [4x] - - Engine Oil Cooler Bolt Sequence  Engine Oil Cooler Replacement
4 Engine Oil Cooler Seal [2x] Yes - - Engine Oil Cooler Replacement

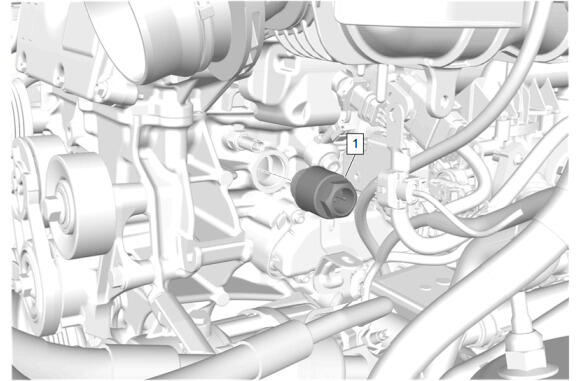

GM6162496Courtesy of GENERAL MOTORS COMPANY
Engine Coolant Heater

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Coolant Heater - - 50 N.m (37 lb ft) Engine Coolant Heater Replacement

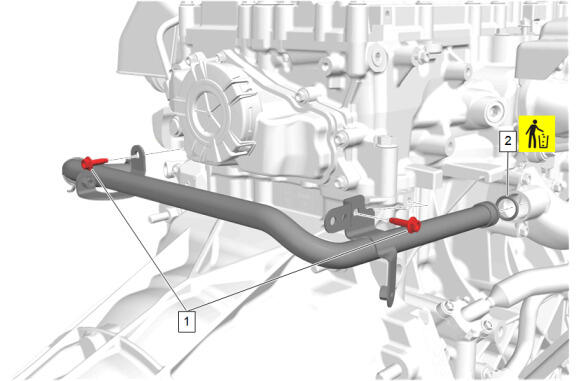

GM6165945Courtesy of GENERAL MOTORS COMPANY
Engine Coolant Thermostat Housing Inlet Pipe

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Coolant Thermostat Housing Bracket Bolt [2x] - - 8.5 N.m (75 lb in) Engine Coolant Thermostat Housing Inlet Pipe Replacement
2 Water Pump Outlet Port Seal Yes - - Engine Coolant Thermostat Housing Inlet Pipe Replacement

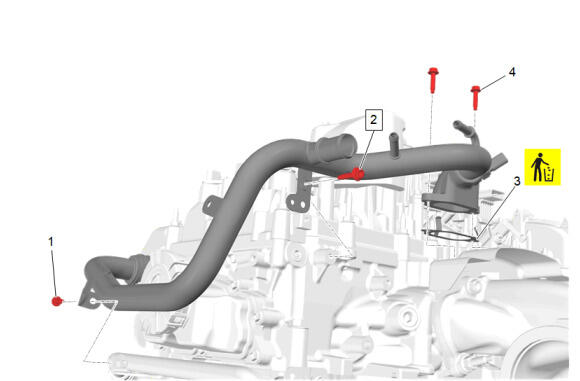

GM6166314Courtesy of GENERAL MOTORS COMPANY
Exhaust Manifold Outlet Pipe

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Exhaust Manifold Outlet Pipe Bolt-M5 x 17.65 - - 8.5 N.m (75 lb in) Exhaust Manifold Outlet Pipe Replacement
2 Exhaust Manifold Outlet Pipe Bolt-M5 x 22.65 [3x] - - 8.5 N.m (75 lb in) Exhaust Manifold Outlet Pipe Replacement
3 Exhaust Manifold Outlet Pipe Gasket Yes - - Exhaust Manifold Outlet Pipe Replacement

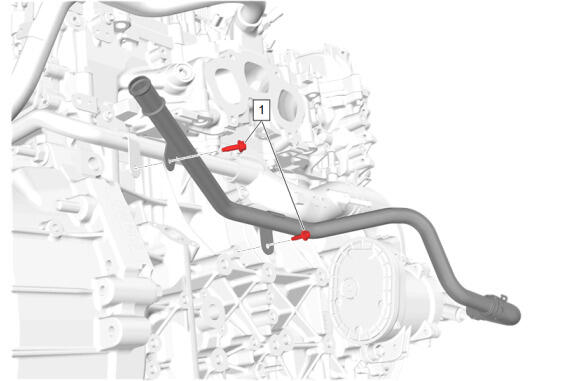

GM6166357Courtesy of GENERAL MOTORS COMPANY
Heater Outlet Pipe

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Heater Outlet Pipe Bolt [2x] - - 8.5 N.m (75 lb in) Heater Outlet Pipe Replacement

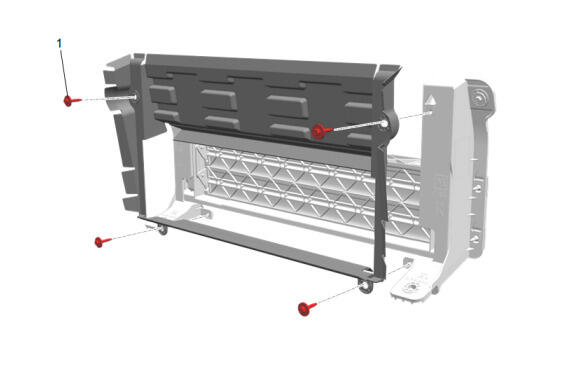

GM6201567Courtesy of GENERAL MOTORS COMPANY
Radiator Air Front Lower Baffle

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radiator Air Front Lower Baffle Bolt [4x] - - 2.5 N.m (22 lb in) Radiator Air Front Lower Baffle Replacement

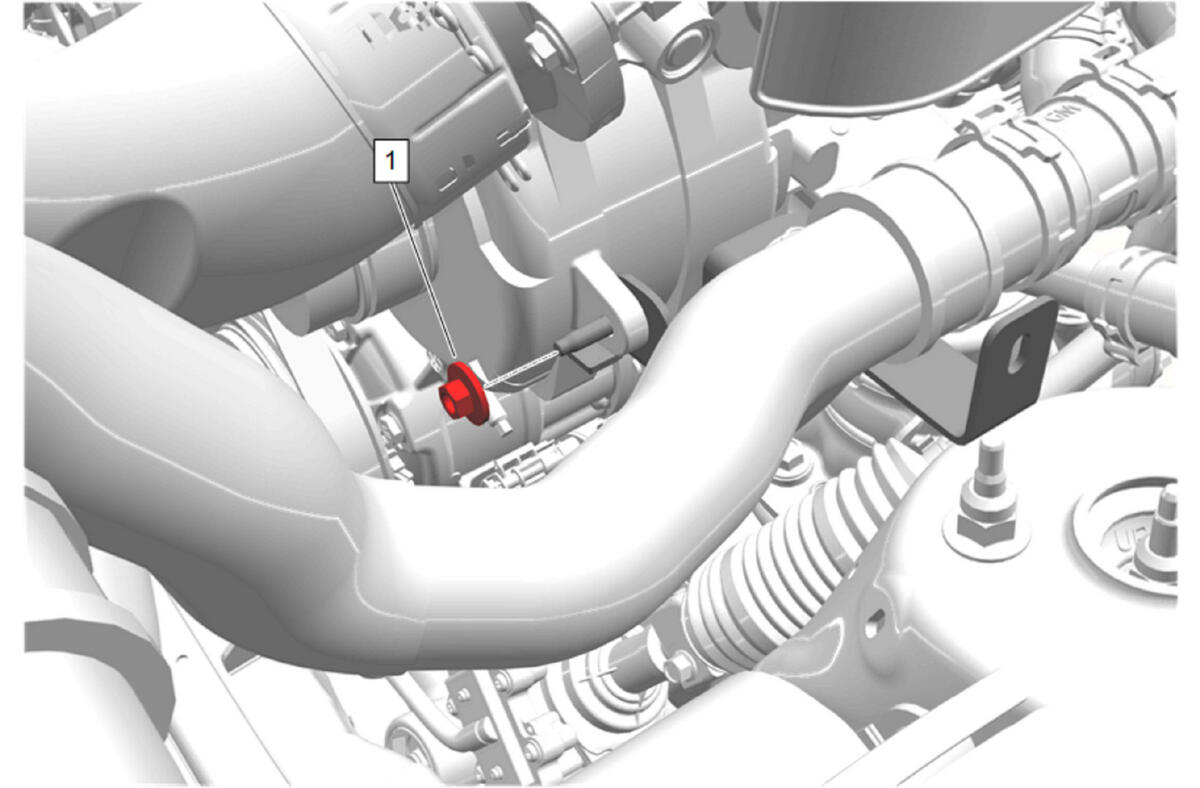

GM6201518Courtesy of GENERAL MOTORS COMPANY
Radiator Inlet Hose

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Heater Inlet Hose Clip Bracket Nut - - 9 N.m (80 lb in) Radiator Inlet Hose Replacement

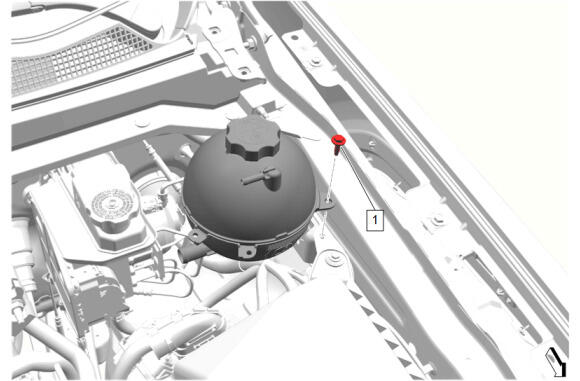

GM6201515Courtesy of GENERAL MOTORS COMPANY
Radiator Surge Tank

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radiator Surge Tank Bolt - - 9 N.m (80 lb in) Radiator Surge Tank Replacement

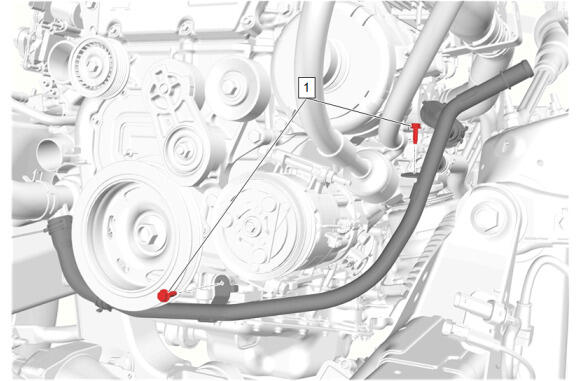

GM6169154Courtesy of GENERAL MOTORS COMPANY
Thermostat Bypass Pipe

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Thermostat Bypass Pipe Bolt [2x] - - 9 N.m (80 lb in) Thermostat Bypass Pipe Replacement (- 4TX) , or Thermostat Bypass Pipe Replacement (4TX)

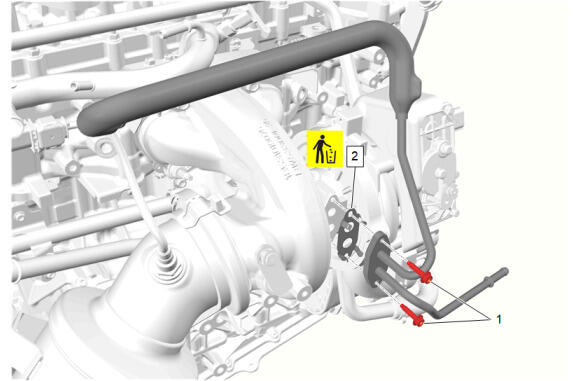

GM6166371Courtesy of GENERAL MOTORS COMPANY
Turbocharger Coolant Feed and Return Pipe

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Turbocharger Coolant Feed and Return Pipe Bolt [2x] - - 8.5 N.m (75 lb in) Turbocharger Coolant Feed and Return Pipe Replacement
2 Turbocharger Coolant Feed and Return Pipe Gasket Yes - - Turbocharger Coolant Feed and Return Pipe Replacement

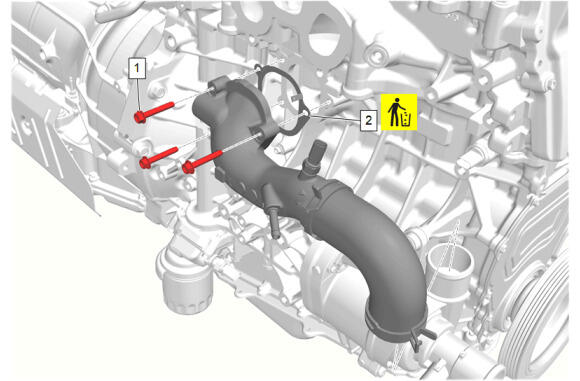

GM6166501Courtesy of GENERAL MOTORS COMPANY
Water Inlet

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Water Outlet Bolt [3x] - - 15 N.m (11 lb ft) Water Inlet Replacement
2 Water Pump Inlet Gasket Yes - - Water Inlet Replacement

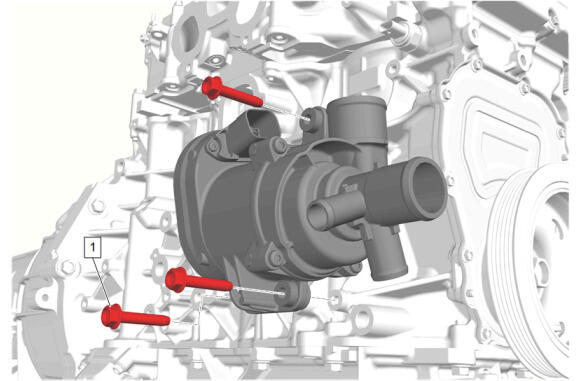

GM6166525Courtesy of GENERAL MOTORS COMPANY
Water Pump Module

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Water Pump Bolt [3x] - - 36 N.m (27 lb ft) Water Pump Module Replacement (4TX) , or Water Pump Module Replacement (- 4TX)

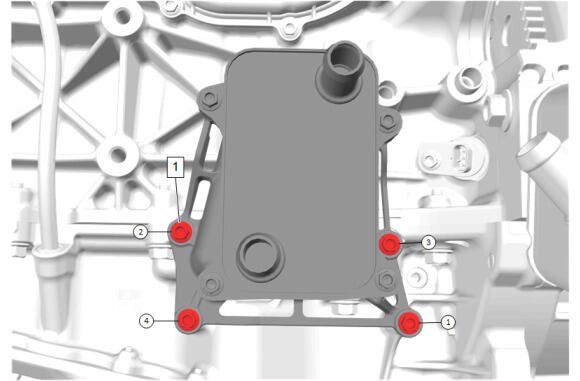

Engine Oil Cooler Bolt Sequence
GM6166556Courtesy of GENERAL MOTORS COMPANY
Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Oil Cooler Bolt [4x] - - 8.5 N.m (75 lb in) Engine Oil Cooler Replacement
