Installation Procedure

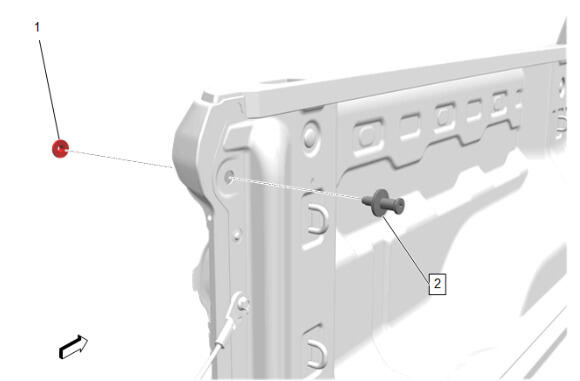

  1. GM6162852Courtesy of GENERAL MOTORS COMPANY

    Pickup Box Endgate Striker (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Pickup Box Endgate Striker Nut (1) - Install and tighten - Fastener Specifications

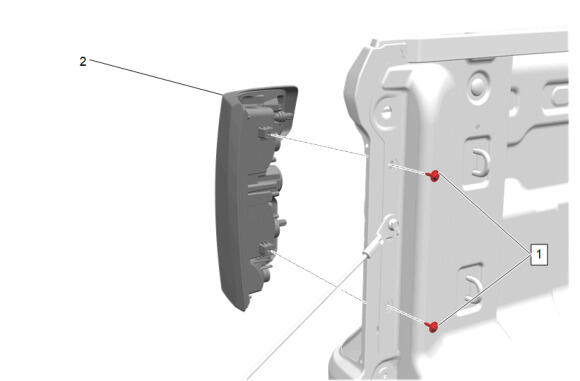

  3. GM6158050Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector and install the wiring harness retainers as necessary.

  4. Rear Body Structure Stop Lamp (2) - Install
  5. Rear Body Structure Stop Lamp Bolt (1) - Install and tighten [2x] - Fastener Specifications
  6. Close The Endgate
